Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

China Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project supplier
Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project supplier Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project supplier Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project supplier

Large Image :  Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Product Details:

Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: All Models

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: $50.00 - $500.00/pc
Packaging Details: Iron shelf
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000pcs/year
Contact Now
Detailed Product Description
Parts Name: DTH Drill Pipes Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Mining ,water Well ,blasting

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

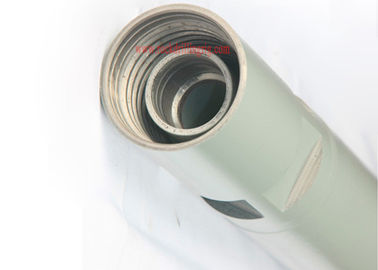

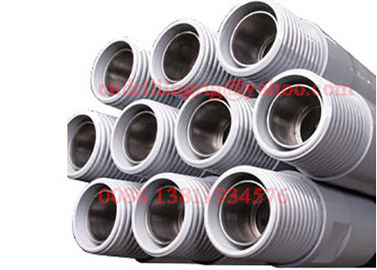

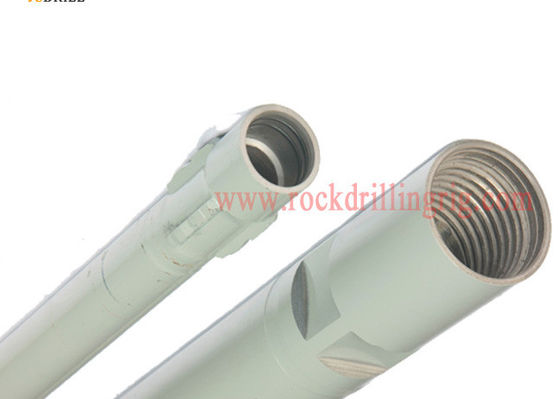

JCDRILL DTH RC Drill Pipe
Description

RC Drilling rod for air reverse circulation (RC) drilling in mining exploration purpose,O.D. Available: 89mm, 102mm,108mm,114mm (3-1/2", 4", 4-1/4", 4-1/2") Length: 1.5mm, 3.0mm, 6.0mm

High pressure air transported into somewhere of the well along with air pip, via mixer to inject the high-pressure air into the pipe with liquid, due to the density of mixed liquor lower than flushing liquor therefore a differential pressure occurred between pipe and sample tube that to make the mixed air and liquid flow up fleetly by the fluid column pressure and take the rock debris pr powder out to the ground from bottom of the hole continuously. By this drilling method will provide with advantages like high penetration rate, quality pore-forming and fewer hole collapse urig drilling in loose formation.
This series reverse circulation pipes can increase penetration in lost-circulation formation, reduce drilling fluid consumption, protect reservoir stratum and save the cost of other consumption tools. In additional, the pipes can be worked in two direction circulation drilling ways to control the well drilling. By reverse circulation method to kill the well the heavy mud can be transferred directly to the bottom of the well, no periodic circulation and save time.

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Technical Parameters of DTH Drill Pipe (Outer Flat Drill Rod):

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project
Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling ProjectReverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Application

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Factory

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Process sheet

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project

Business Information

Minimum Order Quantity: N/A
Price: Negotation
Packaging Details: Standard Export Delivery Package
Delivery Time: 7days
Payment Terms: T/T,Western Union
Supply Ability: Based on Detailed Order

Certification
Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project
Delivery
Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project
Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project
FAQ
1. Shipping time for an order
     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
   Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
4.Other Questions?
   Please add me on whatsapp or wechat by:+86 13521157051 or send inquiry to sales3@rockdrillingrig.com.
