JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits

China JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits supplier
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits supplier JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits supplier JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits supplier JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits supplier

Large Image :  JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits

Product Details:

Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: All Models

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: $5.00 - $50.00/pc
Packaging Details: Iron shelf
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000pcs/year
Contact Now
Detailed Product Description
Parts Name: DTH Drill Bits Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Hole Drlling
Model: 5''

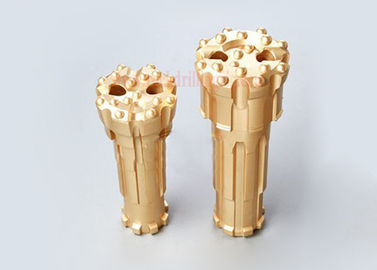

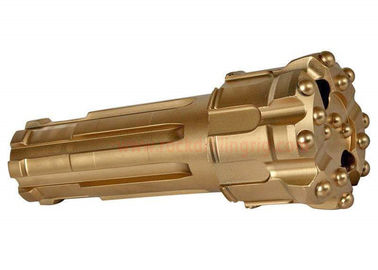

JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits


CDRILL DTH Drill Bits
Description
HRC series reverse circulation DTH Hammer is the latest developed products of our company. It is mainly used for deep exploration drilling and stope ore grade control.
This reverse circulation drill bits are widely used in the following applicaiton field: Geologic exploration samples, Oil wells and ore mining, etc. And it's specifically designed to work with RC Hammers.
Application
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits
CHaracteristics
1.Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.
2.The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.
3. The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.
4. Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.
5. In different conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
Features:
1) Face design: flat, convex, concave
2) Inserts design: spherical, ballistic, parabolic
3) Typical bit model: RE545, RE547
4) Bit diameter: 90mm to 213mm
5) Reliable quality
6) Long service life
7) Smooth flushing effect
8) Designed to work with RC hammers

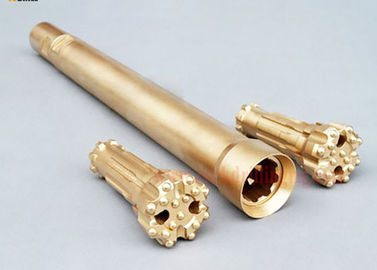

Reverse Circulation (RC) Hammers

ModelLength (Less bit)Weight (Less bit)External DiameterBit ShankHole RangeWorking PressureAir Consumption
HRC451020mm94.0kg99mmHRC45114-127mm1.0-3.0Mpa1.0-2.4Mpa8-16m3/min
HRC551111mm66.5kg126mmHRC55133-152mm1.5-3.5Mpa1.7-3.0Mpa16-28m3/min
HRC651250mm110.0kg146mmHRC65155-190mm1.5-3.5Mpa1.7-3.0Mpa20-35m3/min
HRC521208mm70.0kg126mmHRC52133-146mm1.5-3.5Mpa1.7-3.0Mpa16-28m3/min

Business Information

Minimum Order Quantity:N/A
Price:Negotation
Packaging Details:Standard Export Delivery Package
Delivery Time:7days
Payment Terms:T/T,Western Union
Supply Ability:Based on Detailed Order

Certification
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits
Delivery
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits
FAQ
1. Shipping time for an order
     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
   Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
4.Other Questions?
   Please add me on whatsapp or wechat by:+86 13521157051 or send inquiry to sales3@rockdrillingrig.com.
JCDRILL Reverse Circulation Bits / RC Reverse Circulation Hammers Drilling Bits
