Product Details:
|
| Parts Name: | DTH Drill Pipes | Brand: | JCDRILL |
|---|---|---|---|
| Color: | Customized | Factory Visit: | Support |
| Sample Order: | Support | Usage: | Mining ,water Well ,blasting |
| High Light: | dth drill bits,down the hole hammer bits |
||

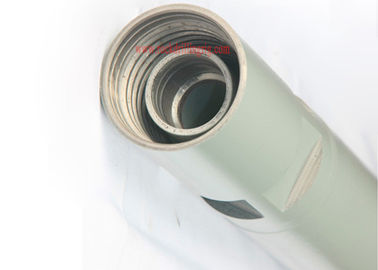

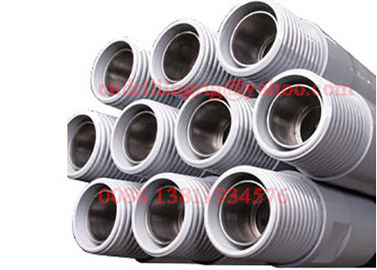

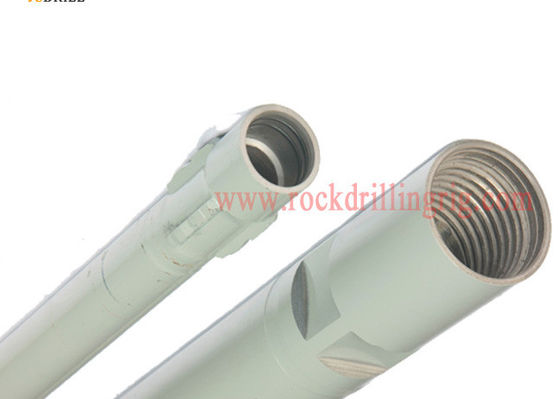

Reverse Circulation RC Rod 89mm X 3m Drill Pipe For RC Drilling Project
JCDRILL DTH RC Drill Pipe
Description
RC Drilling rod for air reverse circulation (RC) drilling in mining exploration purpose,O.D. Available: 89mm, 102mm,108mm,114mm (3-1/2", 4", 4-1/4", 4-1/2") Length: 1.5mm, 3.0mm, 6.0mm
High pressure air transported into somewhere of the well along with air pip, via mixer to inject the high-pressure air into the pipe with liquid, due to the density of mixed liquor lower than flushing liquor therefore a differential pressure occurred between pipe and sample tube that to make the mixed air and liquid flow up fleetly by the fluid column pressure and take the rock debris pr powder out to the ground from bottom of the hole continuously. By this drilling method will provide with advantages like high penetration rate, quality pore-forming and fewer hole collapse urig drilling in loose formation.
This series reverse circulation pipes can increase penetration in lost-circulation formation, reduce drilling fluid consumption, protect reservoir stratum and save the cost of other consumption tools. In additional, the pipes can be worked in two direction circulation drilling ways to control the well drilling. By reverse circulation method to kill the well the heavy mud can be transferred directly to the bottom of the well, no periodic circulation and save time.
Technical Parameters of DTH Drill Pipe (Outer Flat Drill Rod):
Application
Factory
Process sheet
Business Information
| Minimum Order Quantity: | N/A |
| Price: | Negotation |
| Packaging Details: | Standard Export Delivery Package |
| Delivery Time: | 7days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | Based on Detailed Order |
Certification
Delivery
FAQ
1. Shipping time for an order
We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
