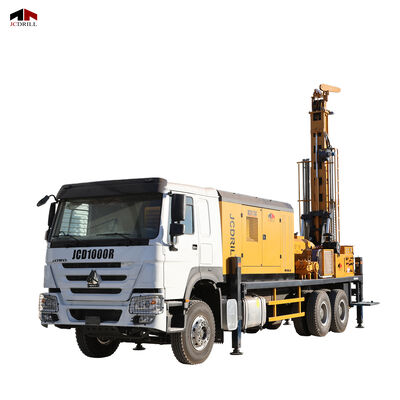

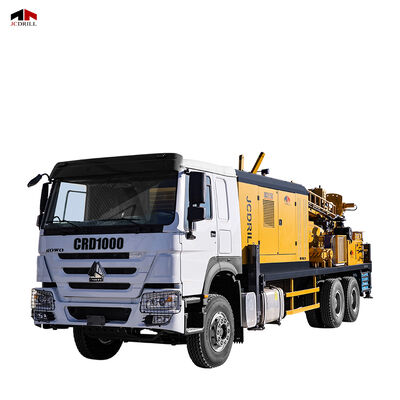

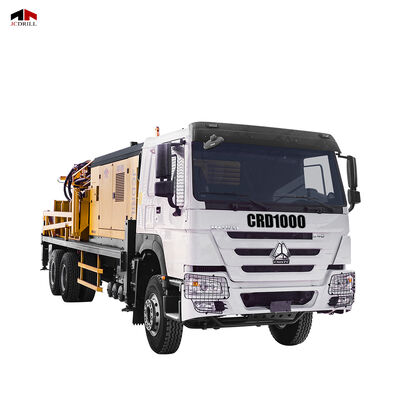

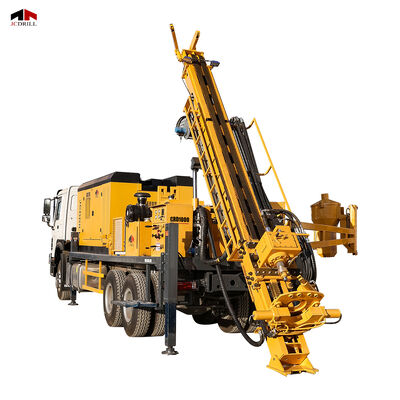

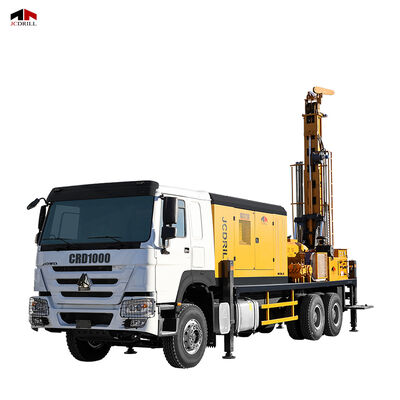

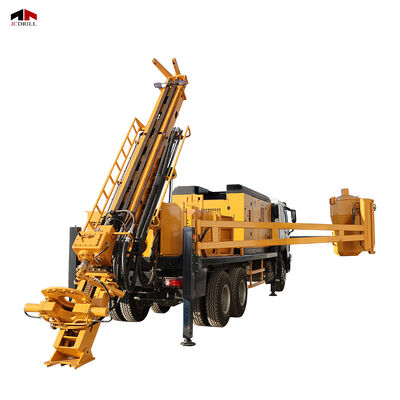

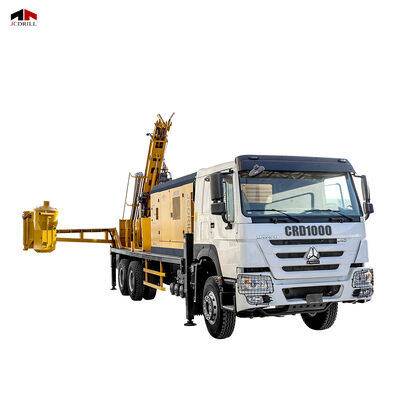

Truck Mounted Deep Mineral Exploration Sampling RC Wireline Diamond Core Drilling Rig

Name: Truck Mounted Deep Mineral Exploration Sampling RC Wireline Diamond Core Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: CRD1000
Price: 122.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	CRD1000
MOQ:	1Set
Price:	Negotation
Payment Terms:	T/T,L/C,Western Union,
Supply Ability:	2000Set

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Type:

RC& Wireline Core Drilling Rig

Drill Depth( RC& Core Drilling):

500/ 1100(BQ), 1000(NQ), 500(HQ)

Drill Diameter (RC& Core Drilling):

90-165mm/ BQ,NQ,HQ

Drill Angle:

45°-90°

Max Rotation Toque( RC& Core):

6500-11500/ 1000-3500

Application:

Mining

Engine:

Cumm1ns

Weight:

7500KG

Engine Power:

154kw

Size:

6000×2200×2400mm

Packaging Details:

Standard export transportation package

Supply Ability:

2000Set

Highlight:

Truck mounted diamond core drilling rig

Deep mineral exploration core drill

RC wireline core sampling rig

Product Description

CRD1000 Full Hydraulic RC & Core Drilling Rig

CRD1000 Full Hydraulic RC & Core Drilling Rig is a compact and high-efficiency drilling rig specially designed for geological exploration in remote and hard-to-access areas.

The rig is mainly suitable for reverse circulation (RC) drilling and diamond core drilling with wireline coring technology. It consists of a diesel power unit, hydraulic system, centralized control panel, mast, main winch, wireline winch, drill head, feeding system, foot clamp and other key components.

All drilling functions are fully hydraulic driven, ensuring smooth operation, precise control and high reliability. The modular split (fission) design allows easy assembly and disassembly, making transportation and installation convenient even in the most inaccessible terrains.

With a robust structure and accurate control system, the CRD1000 delivers high penetration rate, stable performance and excellent adaptability to complicated geological conditions. The rig can operate in unconsolidated layers, with drilling cuttings discharged by mud circulation, making it ideal for complex formations.

Parameter

SPC.	Unit	CRD1000
Drilling Method	RC& Wireline Diamond Core Drilling
Drill Depth( Wireline Core)	m	1100/1000/500
Drill Depth( RC)	m	500
Drilling Diameter( Wireline Core)		BQ/NQ/HQ
Drilling Diameter( RC)	mm	90-165
Drilling Angle	°	45-90
Mobility	Truck Mounted
Rotary Head
Rotation Torque( Wireline Core)	N.M.	1000-3500
Rotation Torque( RC)	N.M.	6500-11500
Max. Rotation Speed( Wireline Core)	rpm	650-1700
Max. Rotation Speed( RC)	rpm	40-140
Mast
Type	Touch-down integrated tower
Lifting Force	T	30
Feeding Force	T	15
Diesel Engine
Brand	CUMM1NS
Type	6 Cylinder, Turbo, Water Cooling
Rated Power	kW	154
Dimension
Transportation Size( LWH)	mm	600022002400
Weight	kgs	7500

Features

Full Hydraulic Drive & Drill Head System
The rig adopts a full hydraulic drilling system. The drill head rotation is driven by hydraulic pumps powered by a diesel engine. The hydraulic feeding cylinder enables full-stroke feeding with both high-speed and low-speed control.
Centralized Control Console
A centralized control console allows easy operation and precise control of all drilling functions. Rapid pulling and lifting significantly reduce auxiliary time and improve overall drilling efficiency.
Hydraulic Rotary Drilling with Directional Circulation
CRD1000 is a hydraulic rotary drilling rig with directional circulation. It can be equipped with BW90 or BW160 mud pump, using slurry as the flushing medium, suitable for drilling in clay, sand and rock when matched with appropriate drilling tools.
Strong Power & Stable Performance
The drilling rig is powered by a diesel engine driving a large-displacement, high-pressure plunger pump. It features strong power output, smooth operation and reliable performance under demanding working conditions.
Compact Structure & Easy Transportation
Lightweight design combined with modular structure makes the rig easy to transport, install and relocate, especially suitable for geological exploration projects in mountainous and remote areas.

Applications

Geological exploration
Mineral exploration and resource investigation
Reverse circulation (RC) drilling projects
Diamond core drilling with wireline coring
Engineering geological survey
Exploration in mountainous and remote areas

FAQs

Q1: What drilling methods does the CRD1000 support?

A: CRD1000 supports reverse circulation (RC) drilling and diamond core drilling with wireline coring technology, suitable for geological and mineral exploration projects.

Q2: Is the rig suitable for remote and hard-to-access areas?

A: Yes. The rig features a lightweight structure and modular split design, allowing easy transportation and assembly in remote, mountainous and difficult terrains.

Q3: Is the CRD1000 fully hydraulic?

A: Yes. All drilling functions are completely hydraulic driven, including rotation, feeding, lifting and pulling, ensuring precise control and reliable operation.

Q4: What mud pump can be equipped with this rig?

A: The rig can be equipped with BW90 or BW160 mud pump, using slurry as the flushing fluid for drilling in clay, sand and rock formations.

Q5: Can the rig work in unconsolidated layers?

A: Yes. CRD1000 can operate in unconsolidated formations, with drilling cuttings discharged through mud circulation, making it suitable for complicated geological conditions.

Q6: Is the rig easy to operate?

A: Yes. The centralized control console simplifies operation, reduces auxiliary time and improves overall drilling efficiency.
