JCD2200S Deeply Fully Hydraulic Geometric Mineral Exploration Diamond Core Drilling Rig

Name: JCD2200S Deeply Fully Hydraulic Geometric Mineral Exploration Diamond Core Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JCD2200S
Price: 122.00 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	JCD2200S
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	20Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

Drilling Capacity:

HTW-NTW-BTW

Drill Depth:

1100-2200-2800

Engine Brand:

CUMM1NS

Rated Speed:

2200RPM

Torque:

1600-10000N.M.

Speed:

1200RPM

Lifting Capacity:

0.6 T

Operation Type:

Manual & Remote Control

Mud Pump Model:

BW-320

Flow:

0-320L/MIN

Transport Size:

6060*2170*2500mm

Weight:

13 Ton

Packaging Details:

Shipping Dimension: 6060*2170*2500mm

Supply Ability:

20Sets Per Month

Highlight:

hydraulic diamond core drilling rig

mineral exploration core drill

fully hydraulic core drill rig

Product Description

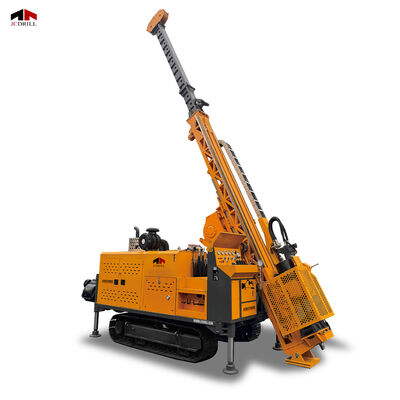

JCD2200S Deeply Fully Hydraulic Geometric Mineral Exploration Diamond Core Drilling Rig

Product Overview

JCD2200S is designed for deep and high-torque core drilling applications, offering unmatched power and capacity for advanced exploration projects. Supporting HTW, NTW, and BTW drilling up to 2800 meters, it is built to handle extreme geological conditions and long-duration drilling with superior performance.

Technical Specifications

Specifications	Unit	JDCD2200S
Drilling Capacity
Drilling Standards		HTW-NTW-BT-BW
Drill Depth	m	1100-2200-2800
Rated System
Hydraulic Pressure	MPA	28
Rated Flow	L/min	479
Heat Dissipation		Air Cooling
Engine
Type		Turbocharger
Brand		CUMMINS
Rated Speed	RPM	2200
Rated Power	kW	179
Drilling System
Torque	N.M	1600-10000
Speed	RPM	1200
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	3600
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	44
Max. Push Down Capacity	Ton	22
Rope Hoist
Lifting Capacity	kg	1000/15000
Speed	m/min	100-400/0-50
Wire Rope Diameter	mm	6/24
Rope Capacity	m	2200/45
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-320
Flow	L/MIN	0-320
Pressure	MPA	0-10
Hydraulic Generator
Type		Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/380
Weight & Dimensions
Transport Size (L×W×H)	mm	6060×2170×2500
Weight	Ton	13

Key Features

Powerful Power System: Equipped with a 179kW Cummins engine and 479L/min high-flow hydraulic system, delivering sustained high torque up to 10000Nm for deep and heavy-duty drilling operations.
Deep Drilling Structure: 3600mm feed stroke and 44-ton pull-up force provide structural power and control for ultra-deep coring in dense formations, with adjustable drilling angles from 45° to 90°.
High-Efficiency Improvement System: Dual-rope hoist system with 1000kg for fast rod handling and 15,000kg for heavy lifting, enhancing operational efficiency and safety during long drilling cycles.
Continuous Operation Guarantee: Features BW-320 mud pump and 11kW maintenance-free generator, offering continuous flushing and reliable power in remote environments.

Applications

Mineral Exploration: Deep core drilling for metal and non-metal mineral exploration, geological sampling in dense and complex formations, suitable for HTW, NTW, and BTW drilling methods.
Geological Survey and Research: Deep geological investigation, structural analysis of underground formations, long-duration drilling projects requiring stable torque output.
Energy and Resource Exploration: Geothermal exploration drilling, deep resource evaluation projects, preliminary drilling for energy development.
Remote and Harsh Working Environments: Long-term drilling operations in remote areas, projects requiring independent power and continuous flushing, sites with complex terrain and extreme geological conditions.

Frequently Asked Questions

What type of drilling is the JCD2200S designed for?

The JCD2200S is specifically designed for deep and high-torque core drilling, supporting advanced exploration projects that require long drilling depths and stable performance in dense formations.

What drilling depth and standards does the rig support?

The rig supports HTW, NTW, and BTW core drilling, with a maximum drilling depth of up to 2800 meters, depending on geological conditions.

What kind of power system does the JCD2200S use?

The JCD2200S is equipped with a 179 kW Cummins diesel engine and a 479 L/min high-flow hydraulic system, delivering sustained high torque for heavy-duty drilling operations.

How much torque can the rig deliver?

The rig provides continuous torque output of up to 10,000 Nm, making it suitable for deep drilling in hard and complex geological formations.

What makes the rig suitable for ultra-deep coring?

Key features include 3600 mm feed stroke for extended drilling control, 44-ton pull-up force for handling deep drill strings, and adjustable drilling angles from 45° to 90°.
