Hydraulic System High Rotating For Small Tunnels Core Anchor Drilling Rig

Name: Hydraulic System High Rotating For Small Tunnels Core Anchor Drilling Rig
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JMZ1045
Price: 10 USD
Availability: InStock

Brand Name:	JCDRILL
Model Number:	JMZ1045
MOQ:	1 Set
Price:	USD10,000/ Set
Payment Terms:	L/C,T/T,D/A,D/P,Western Union
Supply Ability:	20Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Beijing, China

Certification:

Rated Power:

55+18.5+2.2 KW

Ground Pressure:

5.6 N/cm²

Feed Stroke:

1200-2200mm

Feed Force:

45KN

Retraction Force:

45KN

Clamp Range:

60-273mm

Dimension(mm):

3353×1200x2544mm

Weight:

5.7+2.3T

Packaging Details:

Shipping Dimension: 3353×1200x2544mm

Supply Ability:

20Sets Per Month

Product Description

>> Products Description

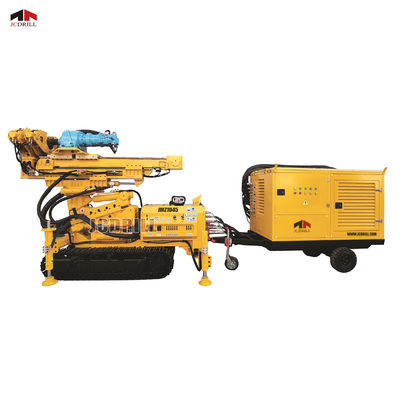

The JMZ1045 series drilling rig is specially designed for confined and low-clearance construction environments, such as basements, garages, bomb shelters, culverts, and small tunnels. Featuring a modular design with a detachable power pack, the rig offers excellent flexibility, making transportation, setup, and operation significantly easier in tight workspaces.

Equipped with a high-speed rotary head (top hammer optional), the rig is ideal for grouting, anchoring, micro-piling, steel pipe pile installation, and high-speed coring. It combines versatility and efficiency, making it a perfect choice for a wide range of underground engineering applications.

>> Paremeter

SPC.	Unit	JMZ1045
Rated Power	kW	55+18.5+2.2KW
Tramming Speed	M/H	1.8/3.3
Ground Pressure	N/CM2	5.6
Gradeability	°	20
Feed Stroke	MM	1200-2200
Feed Force	KN	45
Retraction Force	KN	45
Clamp Range	mm	60-273
Maximum Passing Diameter	mm	300
Feed Rate	m/min	0-8.5 0-17
Dimension	mm	335312002544
Weight	T	5.7+2.3

>> Features

Modular Design: Separated power pack and main rig for easy transport and positioning.

Compact & Lightweight: Fits into tight construction spaces with low ceiling heights.

High-Speed Rotary Head: Enables efficient drilling operations; optional top hammer available.

Strong Torque Output: Supports both soft ground and harder geological conditions.

Multiple Applications: Ideal for grouting, anchoring, micropiles, steel pipe piles, and coring.

>> Application

Basement grouting and anchoring

Tunnel and culvert reinforcement

Bomb shelter micropiling

Underground steel pipe pile installation

Core drilling in low-clearance projects

>> FAQ

Q1: Can the JMZ1045 be used in basements or underground garages?
A1: Yes, its compact height and modular layout make it ideal for low headroom environments like basements or underground structures.

Q2: Is the power pack detachable?
A2: Yes. The separated power pack allows easier maneuvering and setup in tight or split-level spaces.

Q3: Does this rig include a percussion function?
A3: The standard version does not include a percussion system, but a top hammer can be optionally configured if needed.

Q4: What drilling processes can this machine handle?
A4: It supports grouting, anchoring, micropiling, steel pipe pile installation, and high-speed core drilling.

Q5: What is the maximum diameter it can pass through?
A5: The rig supports up to 300 mm maximum passing diameter.
