2000m Diamond Drill Rigs Machine With Diesel Engine

2000m Diamond Drill Rigs Machine With Diesel Engine
2000m Diamond Drill Rigs Machine With Diesel Engine
2000m Diamond Drill Rigs Machine With Diesel Engine 2000m Diamond Drill Rigs Machine With Diesel Engine 2000m Diamond Drill Rigs Machine With Diesel Engine 2000m Diamond Drill Rigs Machine With Diesel Engine

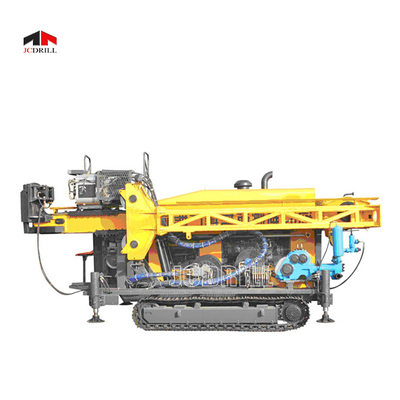

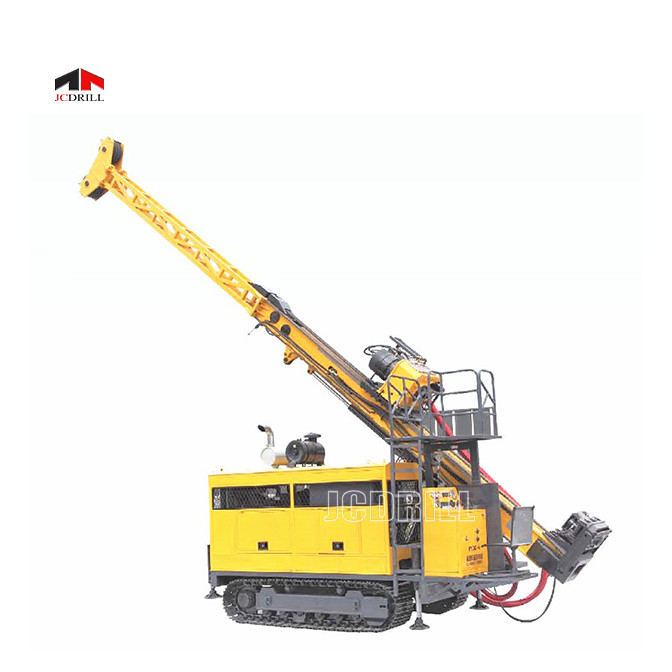

Large Image :  2000m Diamond Drill Rigs Machine With Diesel Engine

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JCD2000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

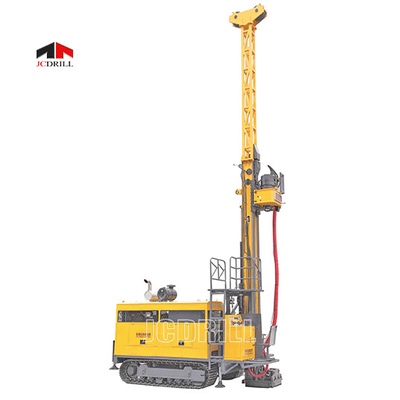

2000m Diamond Drill Rigs Machine With Diesel Engine

Description
Model Number: JCD2000 Dimension: 6250×2240×2750mm
Driling Diameter: BQ,NQ,HQ,PQ Drilling Depth: Max.2000m
Weight: 14000Kgs Power: Diesel Engine
Color: Customised Drill Pipe Diameter: BQ,NQ,HQ,PQ
High Light:

2000m diamond drill rigs

,

diesel engine diamond drill rigs

,

2000m diamond core drilling rig

>> Introduction



>> JCD2000 Hydraulic Core Drilling Rig is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
The drilling rig equipped with tracks, has a hydraulic driving system.

It owns a brief but advanced structure, with its power head driven by a variable motor and its speed adjustable for 2 gears. With the oil cylinder working with a speed-changeable chain, its performance is stable and reliable. The mast is adjustable in the range from 0° to 90° to ensure a proper hole-drilling angle.The low gravity center of the rig promises a steady operation. And it provides the operators with a convenient and comfortable working circumstance.

JCDRILL crawler mounted hydraulic surface mining core sampling drilling rig machine for soil investigation

>> Application Range
JCD2000 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling,

it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.
The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder

directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts

of range of speeds, and the speed could be adjusted hydraulicly with stepless change.
The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground;

the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large

diameter.

JCDRILL crawler mounted hydraulic surface mining core sampling drilling rig machine for soil investigation

>> Specification

Item Specification Data
Diesel Engine Model Cummins 6CTA (turbocharged and charge water cooled)
Displacement 8.3L (2.19 US Gallons)
Power 179kW (240HP)
Rated RPM(Factory setting) 2200rpm
Drilling Capacity BQ 2000 m(6560 feet)
NQ 1600 m(5248 feet)
HQ 1300 m(4264 feet)
PQ 1000 m(3280 feet)
Drill Head Rotation Motor Double Hydraulic Motor
-variable and Reversible
Maker: SAUER-DANFOSS
RPM Two Shifts/ Stepless Change 0-1100 RPM
Ratios 1st 8.776:1
2nd 2.716:1
Head Opener sidewise sliding way with hydraulic drive
Max. Torque 6400 N·m(4717 lbf·ft)
Hold Diameter 121 mm(4.76 inch)
Max. Lifting capacity of Spindle 220 kN(49456 lbf)
Max. Feeding Power 110 kN(24728 lbf)
Primary Pump Hydraulic pump: Maker: DANFOSS
Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. 1st Pump:200LPM at 32MPa
With load sensing system. 2nd Pump:120LPM at 28MPa
3rd Pump: 120 LPM at 28MPa
Hydraulic Tank Capacity 420 L (111 US Gallons)
Capacity of Main Hoist Hoisting Speed (single wire) 44m/min(bare drum)
Hoisting force (single wire) 120kN(26976 lbf)
Steel Wire Diameter 22 mm(0.86 inch)
Steel Wire Length 60 m(196.85 feet)
Capacity of Wireline Hoist Hoisting Force (single wire) 15 kN(3372 lbf) (bare drum)
Steel Wire Diameter 6 mm(0.24 inch)
Steel Wire Length 2000 m(6560 feet)
Mast Mast Height 11.2 m(37.74 feet)
Mast Adjusting Angle 0°—90°
Drilling Angle 45º off horizontal to 90ºvertical down
Feeding Stroke 3800 mm(150 inch)
Slippage Stroke 1100 mm(43.3 inch)
Feed Pull 22000kg(48510 lb)
Feed Thrust 11000kg(24255 lb)
Mud Pump Type Reciprocating Pump Triplex Plunger
Model BW320
Stroke 110mm(4.3 inch)
Output volume 320,230,165,118 L/min
(84.5, 61, 44, 31 US Gallons/min)
Discharge pressure 4.0, 5.0, 6.0, 8.0 Mpa
(580, 725, 870, 1160 psi)
Foot Clamp Clamping Scope 55.5-117.5 mm(2.18-4.63 inch)
through hole 154mm(6.06 inch)
Others Weight 14000 Kg(30864 lb)
Transport Dimensions (L × W ×H ) 6250×2240×2750mm
(20.5×7.34×9.02 ft)
Transport Way Steel Crawler

>> Stock & Shipment

JCDRILL crawler mounted hydraulic surface mining core sampling drilling rig machine for soil investigation

>> Overseas Service&Project

JCDRILL crawler mounted hydraulic surface mining core sampling drilling rig machine for soil investigation

>> Our Service

JCDRILL crawler mounted hydraulic surface mining core sampling drilling rig machine for soil investigation

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.

>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up.

>> E-mail, call or door-to-door service in later using.
