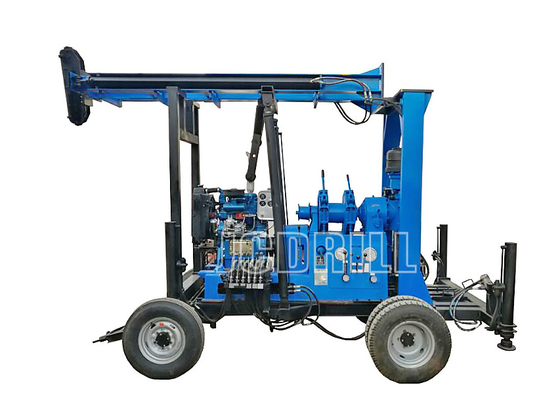

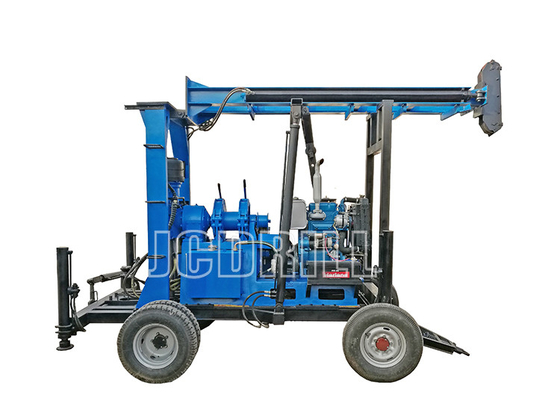

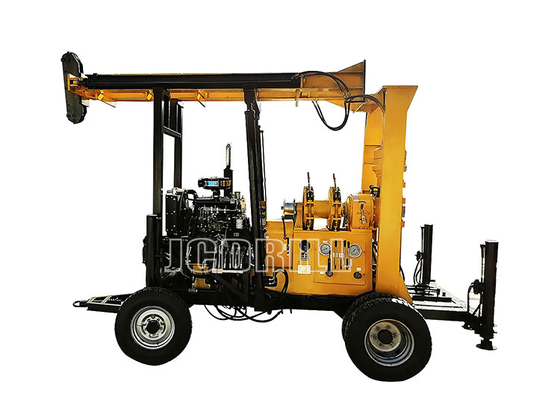

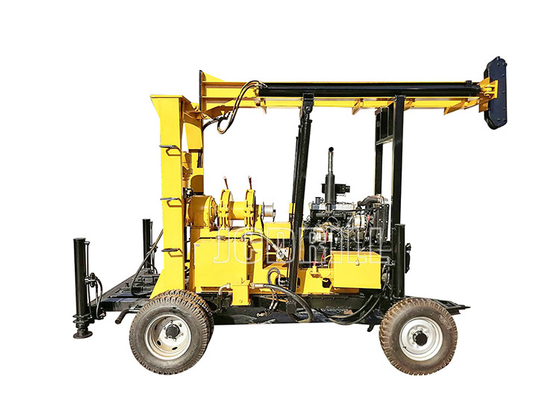

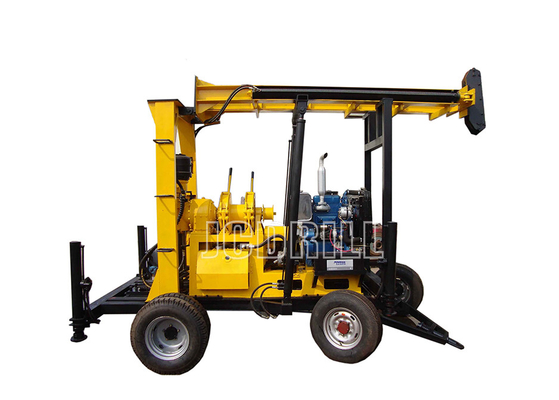

Exploration 400m Geological Drilling Rig Diesel Engine Power

Exploration 400m Geological Drilling Rig Diesel Engine Power
Exploration 400m Geological Drilling Rig Diesel Engine Power
Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power Exploration 400m Geological Drilling Rig Diesel Engine Power

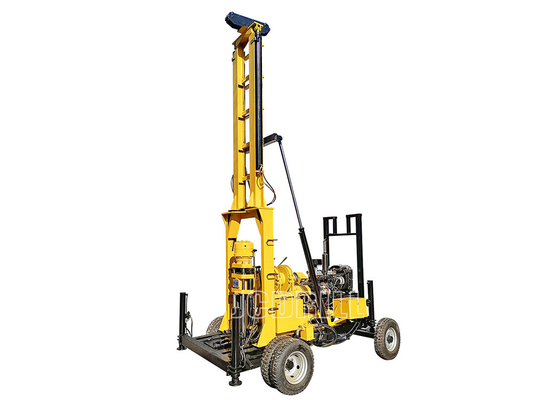

Large Image :  Exploration 400m Geological Drilling Rig Diesel Engine Power

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JXY400T
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Exploration 400m Geological Drilling Rig Diesel Engine Power

Description
Model Number: JXY400T Dimension: 3980*1950*2750 Mm
Driling Diameter: 75-600mm Drilling Depth: Max.400m
Weight: 3000kgs Power: Diesel Engine
Color: Customised Drill Rod Length: 4200mm
High Light:

400m geological drilling rig

,

diesel engine power geological drilling rig

,

400m exploration drilling rig



400m Portable Wire Line Bq Hq Geological Exploration Diamond Core Soil Investigation Mining Drilling Rig


>> Application

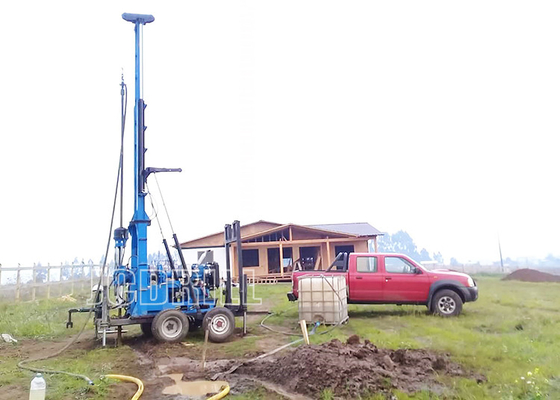

The JXY400T trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment. With hydraulic feed mechanism, improve drilling efficiency.
Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation, flexible and reliable; Can realize remote speed change, more humanization operation.

Exploration 400m Geological Drilling Rig Diesel Engine Power 0

It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.

The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity.

Falling tower for hydraulic operation, convenient and reliable.

>> Characteristics
1. Power Supply
It can be driven by either electric motor or diesel engine.
2. Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.
3. Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.

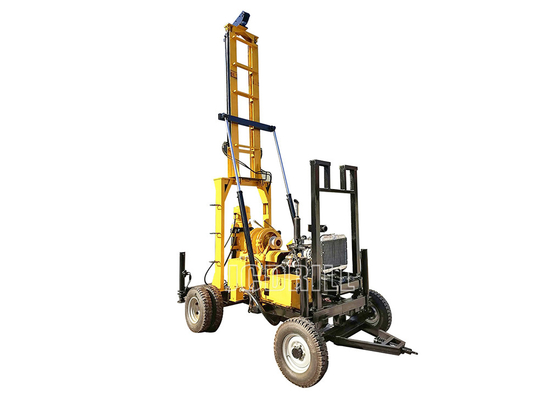

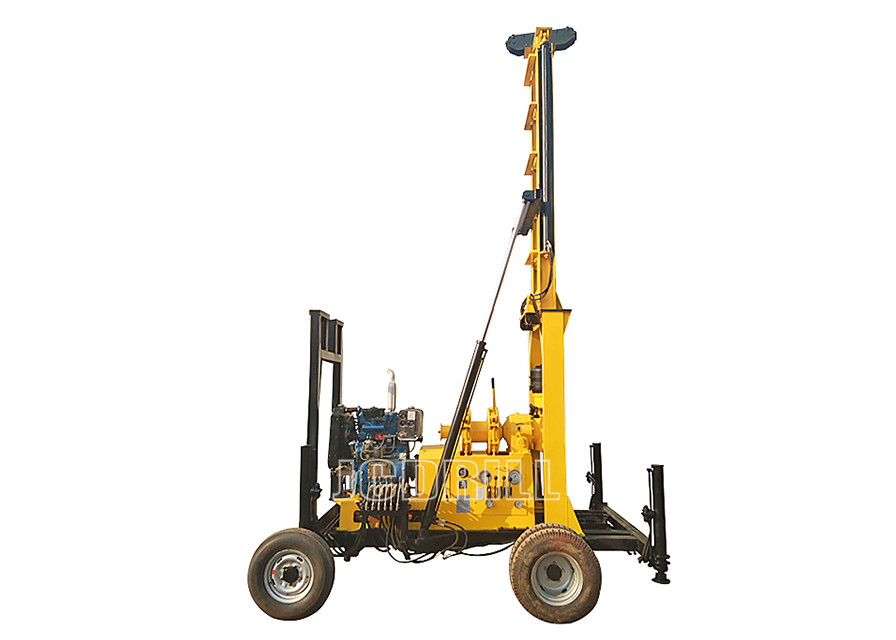

4. Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.
5. Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.
6. Direct Use
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.

>> Specification

Drilling depth M 75 219 273 400 600
Drilling Dia. mm 400 160 130 100 30
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42, 50, 60, 76
Drilling angle   0-90°
Rotary Spindle
Spindle forward speed R/min 50-1150
Spindle reverse speed R/min 29-137
Spindle stroke mm 600
Spindle inner diameter mm 62
Spindle lifting capacity Kg 6000
Spindle Max. Torque N/M 2800
Main Winch (Hydraulic)
Single line lifting speed M/s 0.5-1.9
Tightrope diameter mm 14
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure M 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure M 450
Drilling rig Power(choose one between the following two)
Diesel engine Kw/HP 17.6/24
Electric motor KW Y160L, 18.5kw
Trailer
Loading Capacity T 8.5
Weight&Size
Weight Kg 3000
Dimension mm 3980×1950×2750

>> Package & Shipment
