|Driling Diameter:||150-400mm||Drilling Depth:||Max.200m|

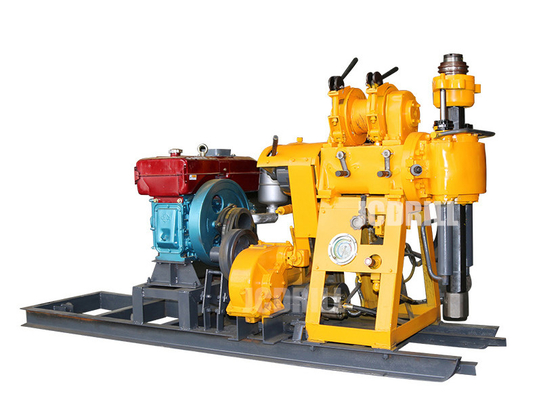

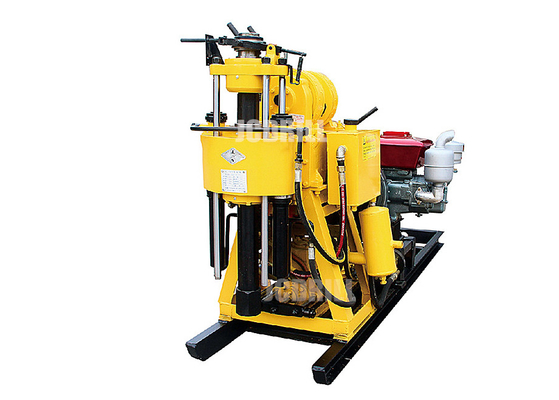

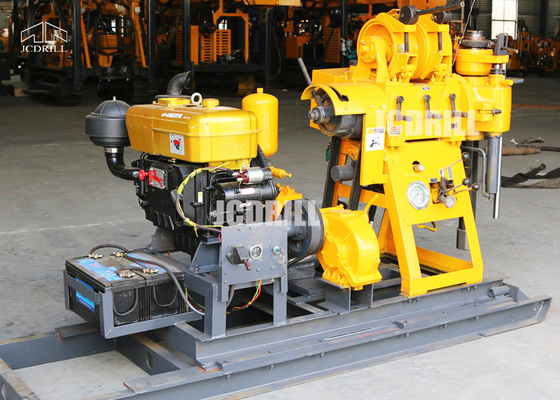

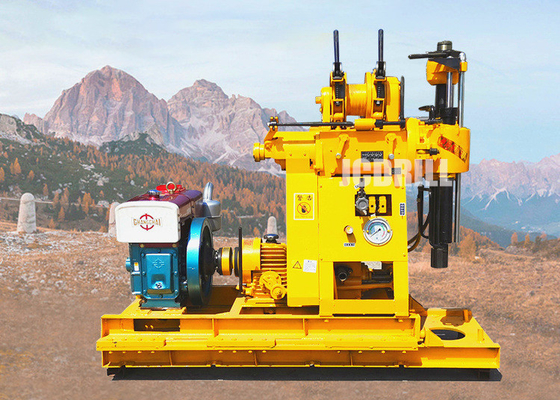

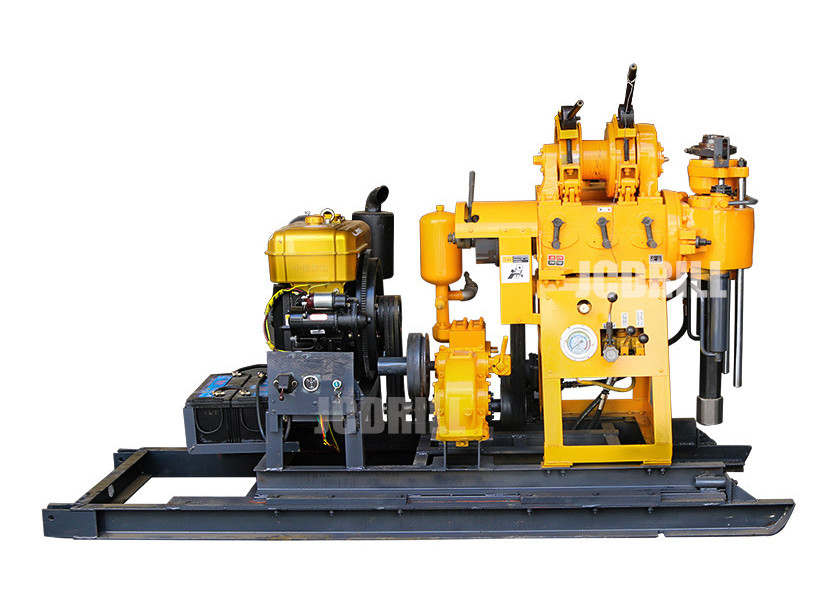

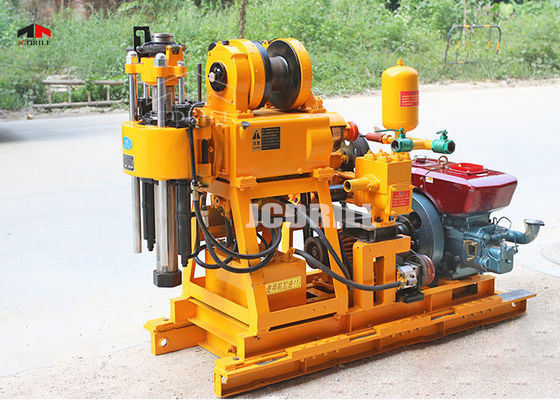

|Power:||22HP||Name:||Diameter 150 - 400mm Core Drill Rig Diesel Engine Power|
diameter 150mm core drill rig,
diesel engine power core drill rig,
diameter 400mm core drilling rig
It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.
Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.
Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.
The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.
|Max.Hole dia soil/rock(mm)||500, 220||500, 220||500, 273|
|End Hole Diameter(mm)||75||75||75|
|Drill Rod diameter(mm)||42, 60||42, 60||42, 50, 60|
|Weight without engine(kg)||600/740||620/750||880/970|
|Single rope lift force(kg)||1800||2100||2500|
|Single rope lift speed(m/s)||0.41-1.64||0.35-2.23||0.12-0.95|
|Rated load (Kgs)||2000||2000||5000|
|Back and forth times/min||93||93||93|
|Inlet hose dia.(mm)||51||51||51|
|Outlet hose dia.(mm)||32||32||32|
>> Package & Shipment
>> Pre-sale service
Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.
>> Select suitable model & matched equipment.
>> Strong technical support. Reply clients' questions within 24 hours.
>> Service During Sales
We have responsible team from raw material to finished products, and guarantee 100% pass rate.
>> Design and manufacture products basis of client's special equirement
>> Inspect each machine & matched accessories strictly before delivery
>> Timely inform client of production progress.
>> After Sales Service
We're always with you in after-sale service.
>> We can arrange related after-sales representatives for debugging and training at worksite when starting up.
>> E-mail, call or door-to-door service in later using.
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
Q: Are you original manufacturer?
|Q: Which payment terms are available to us?||Q: Which Incoterms 2010 terms can we work?|
|A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.||
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|Q: How long will the delivery time take?||Q: How about after sales service?|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."||
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
