Product Details:
|
| Model Number: | JRC500 | Application: | RC Reverse Circulation Drilling |
|---|---|---|---|
| Drilling Depth: | 500m | Drilling Diameter: | 105-350mm |
| Drill Rod: | 3000mm | Rock Hardness: | F=8-16 |
| Rotation Speed: | 0-100rpm | Working Pressure: | 1.05-2.4Mpa |
| Air Consumption: | 11.3-21 M³/min | Feed Stroke: | 3.66m |
| Rotary Torque: | 8500-10000N.m | Dust Collector: | Wet & Dry Optional |
| Pull Back Capacity: | 28Ton | Name: | Rc 500m Depth 100rpm Deep Rock Drilling Rig |
| High Light: | RC deep rock drilling rig,500m Depth rock drilling rig,100rpm deep rock drilling rig |
||

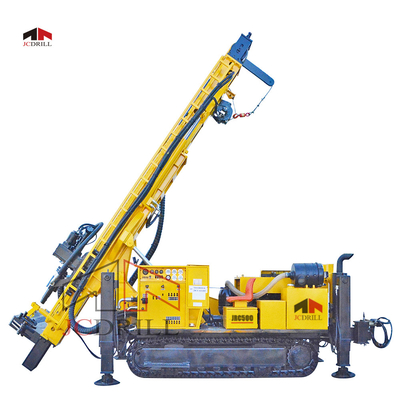

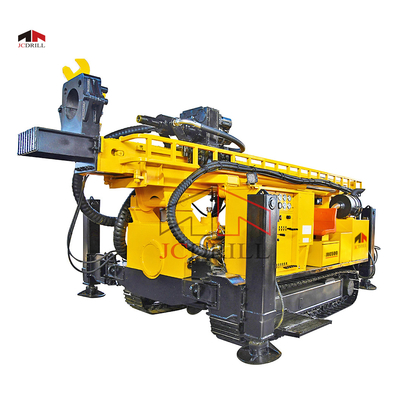

JRC500 Deep Rock RC Drilling Rig for 500m Depth
Main Features
The machine adopts an integrated design of pumping station and drilling rig, and a walking crawler is set at the bottom of the fuselage, which effectively improves the efficiency of moving and steady drilling. It is especially suitable for drilling in narrow tunnels in coal mines.
Adopting the rotating pan structure (company patented technology), when the crawler chassis isnot moving, relying on the pan rotation, it can achieve +180° azimuth adjustment and -90°～+90" elevation and depression and adjustment to meet the omnidirectional mine tunnel Cloth hole demand.
Specifiction
| 1 | Geology drilled | All kinds | |
| 2 | Drilling Type | DTH & RC | |
| 3 | Drill system and operation | Hydraulic | |
| 4 | Hole Diameter | mm | Φ90—Φ400 |
| 5 | Hole Depth | m | 500 |
| 6 | Rotation Torque | KN | 85-100 |
| 7 | Rotation Speed | rpm | 0-80 1st Gear |
| 0-160 2nd Ger | |||
| 8 | Drill pipe diameter | mm | 76/89/114 |
| 9 | Drill pipe length | mm | 4/4500 |
| 10 | Max. Feed Speed | M/min | 18 |
| 11 | Max. Lifting Speed | M/min | 5-20 |
| 12 | Feed Stroke | mm | 3400 |
| 13 | Max. Lifting force | T | 28 |
| 14 | Lifting force of Main winch(Optional) | T | 4 |
| 15 | Lifting force of hoist | T | 1.5 |
| 16 | Lifting height of tool winch | m | 100 |
| 17 | Diesel Engine type | CUMMINS | |
| 18 | Rated Horse power | Kw | 180 |
| 19 | Electrical System | Volt | 24 |
| 20 | Compressor Type | Rotary Screw/Movable | |
| 21 | Pressure Required | Mpa | 1.05—4.5 |
| 22 | Air consumption | m³/min | 16—60 |
| 23 | Net Weight | T | 13 |
| 24 | Shipping Length | mm | 7550 |
| 25 | Shipping Width | mm | 2260 |
| 26 | Shipping Height | mm | 2700 |
| 27 | Ground Clearance | mm | 300 |
| 28 | Volume of Flow | mm | 20 |
Service
After sales service system, We establish excellent control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Warranty |
Spare parts |
| Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition. |
JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services
|
