Product Details:
|
| Parts Name: | Rock Drill Bits | Material: | Carton Steel+Tungsten Carbide |
|---|---|---|---|
| Application: | Mining, Blasting,road Construction Hole Drilling | Processing Type: | Forging |
| Brand: | JCDRILL | Diameter: | 33-178mm |
| Mining Object: | Granite, Marble, Sandstone,limestone | Carbide Shape: | Spherical, Ballistic |
| Face Design: | Flat, Drop, Centre | Usage: | Oil/Gas Field,Coal Mining Etc. |
| Model: | R22, R25, R28, R32, R35,R38, Etc | Color: | Yellow,Gold ,Orange,Black,blue Ect. |
| High Light: | button drill bit,tapered drill bits,rock drill head |
||

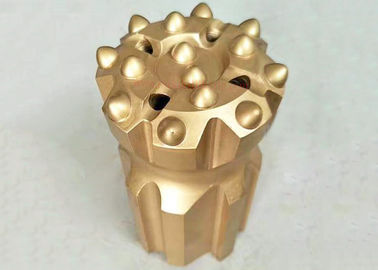

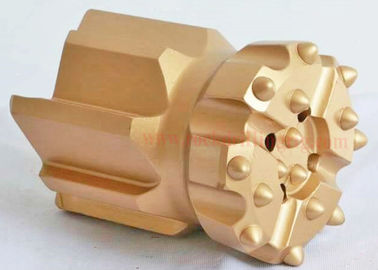

T51 Rock Drilling Tools / Drop Center Hard Rock Water Well Tungsten Carbide Drill Bits
JCDRILL Thread Retract Button Drill Bit
Retractable rock drill button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
• Recommended for eliminating hole deviation
• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock
Suitable for powerful percussive drills and top hammers with high speed drifter,,such as Atlas Copco 282 rocket boomer,Atlas Copco 352 rocket boomer jumbo,AtlasCopcoD7roc,FurukawaHCR 1200, Tamrock,and Ingesoll Rand ECM660,the products are widely used in bench and production drilling, extensional drilling,our products with comparative advantages of the more prominent cost-effective as the famous brand in the world, our products have been recognized as high-quality brand of rock-drilling tools made in China.
Retractable rock drill button bit suitable for small hole range
Retractable rock drill button bit widely used in Dimensional Stone Quarrying Industry
Retractable rock drill button bit widely used in Underground Mining Industry
T38 Retract rock drill button bit most popular size:64mm,70mm,76mm,89mm
Characteristics
1. Reaming Drill Bit connect with tapered drill rod perfectly for drilling holes.
2. Stable and mature welding technology ensure high quality of bits.
3. Accurate dimension of taper degree perfectly matches the rods.
4. work reliable and very cost-effective.
5. High grade tungsten carbide inserts.
6. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment.
7. Long life
8. Lower consumption
9. Wide selections of drill bits
10. Delivery quickly
Advantage
1.High penetration rate for productivity.
2.Extended service life and lower drilling cost.
3.Excellent straightnesss and hole clean quality.
Parameter
| Diameter | NO*Button Dia | Gauge | Flushing | Approx's | Part No. | |||
| Dia | Front | Gauge | Buttons | Hole | Weight | |||
| mm | inch | EA | EA | Angle | Front | Side | kg | |
| 32 | 1 1/4 | 2*7 | 3*8 | 35 | 1*6 | 2*4 | 0.2 | Q532-722 |
| 33 | 1 19/64 | 2*7 | 4*7 | 40 | 1*5 | 1*5 | 0.2 | Q633-722 |
| 33 | 1 19/64 | 2*7 | 5*7 | 35 | 2*4 | 1*4 | 0.2 | Q733-722 |
| 34 | 1 11/32 | 2*7 | 4*7 | 40 | 1*5 | 1*5 | 0.29 | Q634-722 |
| 35 | 1 3/8 | 2*7 | 5*7 | 35 | 1*5 | 1*5 | 0.22 | Q735-722 |
| 36 | 1 27/64 | 1*8 | 3*9 | 40 | 1*6 | 1*6 | 0.3 | Q436-722 |
| 36 | 1 27/64 | 2*7 | 4*7 | 40 | 1*6 | 1*6 | 0.35 | Q636-722 |
| 36 | 1 27/64 | 2*7 | 5*8 | 35 | 1*6 | 1*5 | 0.3 | Q736-722 |
| 38 | 1 1/2 | 1*9 | 3*9 | 40 | 1*6 | 1*6 | 0.35 | Q438-722 |
| 38 | 1 1/2 | 2*8 | 4*8 | 40 | 1*6 | 1*6 | 0.35 | Q638-722 |
| 38 | 1 1/2 | 2*7 | 5*8 | 35 | 1*6 | 1*5 | 0.35 | Q738-722 |
| 38 | 1 1/2 | 2*7 | 5*9 | 40 | 2*4 | 1*4 | 0.35 | Q738-722A |
| 40 | 1 37/64 | 1*9 | 3*9 | 40 | 1*6 | 1*6 | 0.35 | Q440-722 |
| 40 | 1 37/64 | 2*7 | 5*9 | 35 | 1*6 | 1*5 | 0.35 | Q740-722 |
| 41 | 1 5/8 | 2*7 | 5*9 | 35 | 1*6 | 1*5 | 0.35 | Q741-722 |
| 42 | 1 21/32 | 1*9 | 3*9 | 30 | 1*6 | 1*6 | 0.35 | Q741-722 |
| 42 | 1 5/8 | 2*7 | 5*9 | 35 | 1*6 | 1*5 | 0.35 | Q442-722 |
Ps: Special design is available upon your requirement.
Certification
Delivery
FAQ
1. Shipping time for an order
We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
