Product Details:
|
| Parts Name: | Rock Drill Bits | Material: | Carton Steel+Tungsten Carbide |
|---|---|---|---|
| Application: | Mining, Blasting,road Construction Hole Drilling | Processing Type: | Forging |
| Brand: | JCDRILL | Diameter: | 33-152mm |
| Other Model: | R22 R25 R32 R38 T38 T45 T51 Ect. | Mining Object: | Granite, Marble, Sandstone,limestone |
| Carbide Shape: | Spherical, Ballistic | ||
| High Light: | button drill bit,tapered drill bits,rock drill head |
||

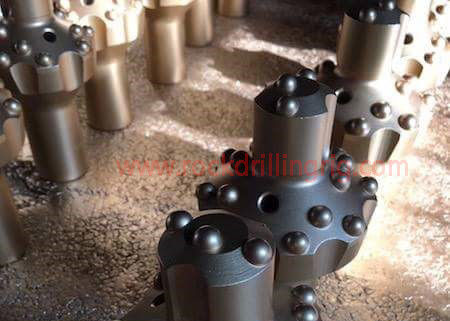

Mining / Blasting Rock Drill Bits Forging High Performance Heavy Duty Bits
JCDRILL Thread Reaming Button Drill Bit
Reaming bits made from high alloy steel and tungsten carbide as same grade as internationally well-known brand
Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand
Entire CNC processing procedure ensure the quality consistency
Military grade requirements of heat-treatment guarantee durability
Fast penetration rates, and streight and clean hole quality. Long life of drilling holes.
A reaming bit functions to enlarge a borehole and it is designed with a drill portion and a reamer portion. The drill portion is formed by cutting edges at the end of a plurality of flutes, and the reamer portion includes a first relief formed on each flute surface disposed at a predetermined angle with respect to the flute surface to form a first reamer cutting edge. A second relief is formed contiguous with the first face on each reamer portion and is disposed at a second angle, less than the first angle with respect to the flute surface.
Characteristic
1. Reaming Drill Bit connect with tapered drill rod perfectly for drilling holes.
2. Stable and mature welding technology ensure high quality of bits.
3. Accurate dimension of taper degree perfectly matches the rods.
4. work reliable and very cost-effective.
5. High grade tungsten carbide inserts.
6. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment.
7. Long life
8. Lower consumption
9. Wide selections of drill bits
10. Delivery quickly
