Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve
Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve

Large Image :  Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: API,ISO,CE
Model Number: 32,34,36,38,40mm-4,6,7,8,9buttons-7°,11°,12°
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: $5.00 - $20.00/pc
Packaging Details: Plastic box or wooden box
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000m/year

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve

Description
Parts Name: Rock Drill Bits Material: Carton Steel+Tungsten Carbide
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Cold Pressing
Other Name: Button Bits Machine Type: Drilling Tool
Length: Long Skirt And Short Skirt Brand: JCDRILL
Taper: 7、11、12 Diameter: 28,30,32,34,36,38,40,42
High Light:

button drill bit

,

tapered drill bits

,

rock drill head

JCDRILLBest selling tungsten carbide rock drilling bits with sim(copper sleeve)



JCDRILL Tapered Button Bit

Description Diameter Length No. of button Weight
Taper Angle=7°,11°,12°; Socket inside=28mm-45mm mm mm pcs kg
28 50 4 0.2
29 50 4 5 6 7 0.2
30 50 80 5 6 7 8 0.2 0.3
32 50 55 71 80 6 7 8 9 0.2 0.22 0.3
33 50 55 71 80 6 7 9 0.2 0.3 0.36
34 50 55 7 8 0.22 0.3
35 55 71 80 4 5 6 7 0.22 0.3 0.37
36 50 55 7 0.3 0.35
37 55 4 6 7 0.3
38 50 55 4 6 7 0.25 0.35
40 50 55 7 0.35
41 50 55 71 4 5 0.35
42 50 6 7 0.4
45 50 55 71 6 7 8 9 0.5
Product Description

JCDRILL tapered bits are ideal for short hole drill & blast, as well as roof bolting applications, as we are Chinese leading manufacture of rock drilling bits,we have rich experience in reseraching and producing .Our products are sold to many countries of the world and gained lots of trust and praise.Why our products are so popular?

1. We use the most high performance material for every order according to customers' requirements.

2. We know most market informations worldwide ,so we can recommend clients the most suitable product.

3. We has the lowest cost and we sell directly to customer from factory,so our price is the most advantage in Chinese market.

4. All our customer can enjoy our VIP service before and after sales ,that is also why more and more customer choose us.

5. With our products,you will have more advantage in your market,so JCDRILL is the best choise.

Tapered button bit diameter:28mm,30mm,32mm,34mm,36mm,38mm,40mm etc..

Tapered button bit degree: 7°, 11°, 12° etc..



Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 0

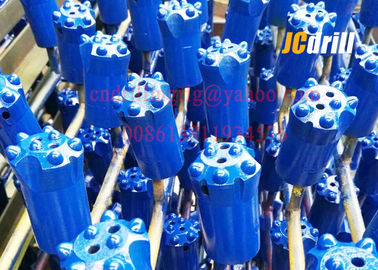

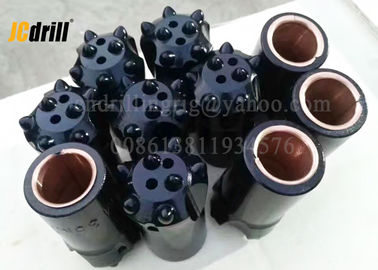

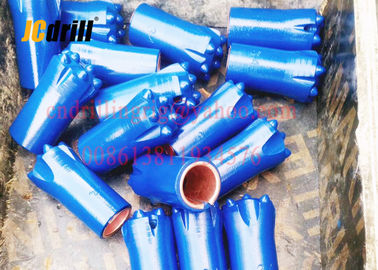

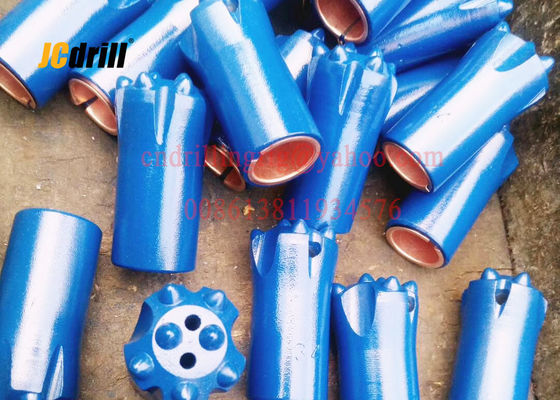

Product Show

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 1









Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 2

Specification

7° bits

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 3

11° bits

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 4

12° bits

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 5

Advantage

Comparing with taper chisel and cross bits, button bits have higher technology, much longer primary drilling time and higher drilling efficiency. According to the tungsten carbide insert, button bits can be divided into types of hemispherical, conical and parabolic button, etc.
Button bits with hemispherical button is for high bearing capacity and abrasive resistance while conical button and parabolic button are for high drilling speed and low abrasive resistance.

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 6

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 7

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 8



Certification

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 9

Delivery
Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 10

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 11

FAQ

1. Shipping time for an order

     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.

2. Quality Control

   Strict inspection and testing for every order before shipping out .

3. How to order

   Head diameter + buttons number + The degree.

4.How can we trust your company?

   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.

5.Other Questions?

   Please add me on whatsapp or wechat by:+86 13521157051 or send inquiry to sales3@rockdrillingrig.com.

Tungsten Carbide Rock Drill Bits Cold Pressing With Sim Copper Sleeve 12
