Product Details:
|
Type: | Core Drilling Rig | Dill Depth Capacity: | 200M |
---|---|---|---|
Hole Diameter: | 96/75.7/60mm | Core Diameter: | 63.5/56/42mm |
Drill Angle: | 45°-90° | Hydraulic System: | 21MPa/max 54L/min Water Cooler |
Maximum Toque: | 400NM | Weight: | 513kg |
Module Quantity: | 4pcs | Application: | Mining |
Highlight: | core drilling machine,hydraulic core drilling machine |

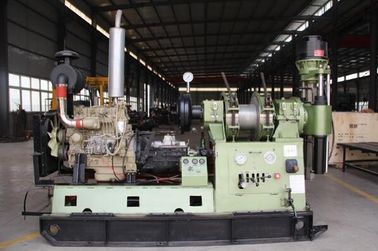

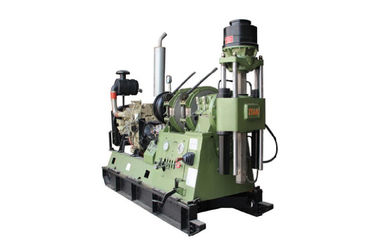

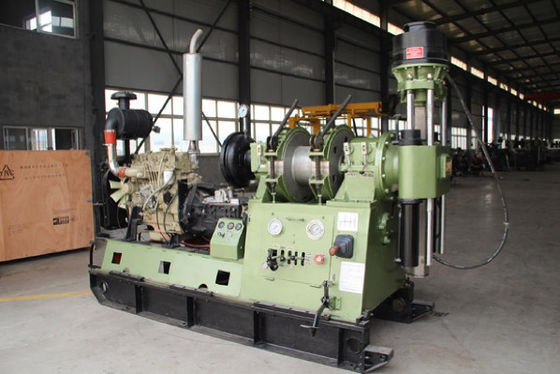

200M Depth Portable Core Drill Rig Light weight Design with Kubota Engine
Fields of Application
JCD200 is widely used in mineral exploration, infrastructure construction (i.e. railway, road and bridge, etc.), hydraulic and hydropower project, tunnel exploration and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountainous regions, forests and plateaus. It is the ideal drilling rig when operating in hard-to-access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.
Key Characteristics
Lightweight –Modulized design with the heaviest pieceweighing only 120kg
Aviation aluminum materials used for more than 90% of the framework
Fast– Easy to relocate with the capability of being assembled/disassembled within only 20 minutes
Thin wall rods, low resistance,and speed penetration
Excellent – Long stroke cylinder, easier to control than the chain
Cost-efficient – No road construction; No infrastructure construction; Time saving
Hydraulic coring and drilling; No drilling tower; Energy saving
Environmentally friendly; Worry-free
Low consumption;Cost saving
The key issue regarding the traditional portable and vertical drilling machines, when executing projects with a depth of 200 meters, is the balance of lightweight and efficiency. With its lightweight, easy assembling/dissembling capability and high efficiency, EP200 is your best new choice.
Drillable Depth |
HQ/NTW/BTW
Rod Length |
30 /100/200m |
Borehole Diameter |
96/75.7/60mm | |
Core Diameter |
63.5/56/42mm | |
Engine power |
D1105-T , 23.5kw/3000rpm KUBOTA |
|
Pressure |
21 Maximum pressure 54 Maximum flow Water cooler |
|
Top drive Rotation head |
Maximum toque |
400NM |
Maximum rotation speed |
1300rpm | |
Feed travel (Cylinder drive)
|
1.27m | |
Pull/thrust |
33KN/24KN | |
Winch |
Average speed |
150m/min |
Lift |
600kg | |
Were Diameter/Accommodation |
5mm/240m | |
3.8m; Height |
||
Drill Angle |
45°-90° | |
Size and weight |
Working area/Module quantity |
2.5m X2.5 m / 4PCS |
Heaviest module/Gross Weight |
176kg / 513kg |
