Product Details:
|
Model Number: | JRC45 | Type: | DTH Hammer |
---|---|---|---|
Usage: | Mining, Coal, Iron Ore, Gold Mining Drilling | Material: | Tungsten Carbide |
Shank: | JRC45 | Face Shape: | Flat Shape And Drop-center Shape |
Thread: | As Customers Requirement | Angle: | 111-127mm |
Working Pressure: | 1.7-3Mpa | Air Consumption: | 8-16m3/min |
Highlight: | dth drill bits,dth button bits |

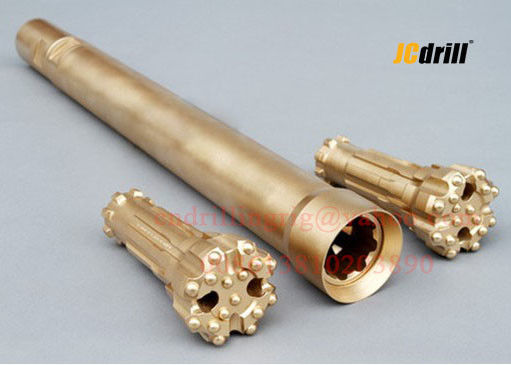

4inch RC drilling hammer,Reverse Circulation Drilling Hammer Down The Hole Drilling Tools
Application
With professional manufacturing experience in DTH hammer production, our factory can supply you with high pressure and medium to low pressure DTH hammers. It strictly matches with API standard and other Chinese industry standards.It is durable for being produced with advanced craftwork and good material.
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe
Characteristics
Hammer shank available:
1. BR shank series: BR1, BR2, BR3;
2. Cop shank series: Cop32, Cop34, Cop44, Cop54, Cop64, Cop84;
3. DHD shank series: DHD3.5, DHD340,DHD350, DHD360, DHD380;
4. SD shank series: SD4, SD5, SD6, SD8, SD10, SD12, SD15, SD18;
5. Mission shank series: Mission40, Mission50, Mission 60, Mission 80;
6. QL shank series: QL30, QL40, QL50, QL60, QL80;
7. NUMA shank series: NUMA120, NUMA125, NUMA180, NUMA240;
Other hammer shanks can be available according to customer's drawing or samples.
Specification
JRC4 RC Hammer | ||||||
Item Description | Weight | Parts No. | ||||
1.Circlip of top sub | 0.02 | JRC4-01 | ||||
2.O-ring of adaptor screen | 0.02 | JRC4-02 | ||||
3.Adaptor screen | 1.06 | JRC4-03 | ||||
4.O-Ring of sample tube | 0.02 | JRC4-04 | ||||
5.Top Sub | 7.79 | JRC4-05 | ||||
6.Plunger | 0.51 | JRC4-06 | ||||
7.Y-ring of plunger | 0.02 | JRC4-07 | ||||
8.Spring Distributor nozzle | 0.06 | JRC4-08 | ||||
9.Sample Tube Upper Top sub | 0.74 | JRC4-09 | ||||
10.O-Ring of sample tube | 0.02 | JRC4-10 | ||||
11.O-Ring of sample tube | 0.02 | JRC4-11 | ||||
12.Sample tube | 2.38 | JRC4-12 | ||||
13.Compression buffer | 0.17 | JRC4-13 | ||||
14.Air distributor | 1.75 | JRC4-14 | ||||
15.O-ring of air distributor | 0.02 | JRC4-15 | ||||
16.Inner cylinder | 2.45 | JRC4-16 | ||||
17.Piston | 10.45 | JRC4-17 | ||||
18.Piston case | 17.95 | JRC4-18 | ||||
19.Bush drive sub | 1.77 | JRC4-19 | ||||
20.Bit retaining ring | 0.29 | JRC4-20 | ||||
21.O-ring of bit retaining ring | 0.02 | JRC4-21 | ||||
22.Shroud | 1.05 | JRC4-22 | ||||
23.Drive sub | 3.13 | JRC4-23 | ||||
23.RC drill bit | 11.70 | JRC4-24 | ||||
Technical Data | ||||||
Length (Less bit) | Weight (Less bit) | External Diameter | Bit Shank | Hole Range | Connection Thread | |
1252mm | 52.0kg | 107mm | JRC4 | 111-127mm | 3.5/4''Remet 4''Metzke | |
Working Pressure | Impact rate at 0.5 Mpa | Recommended Rotation Speed | Air Consumption | |||
1.5-3.5Mpa | 30HZ | 25-40r/min | 1.7Mpa | 2.4Mpa | 3.0Mpa | |
8m3/min | 12m3/min | 16m3/min |
