Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree

Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree
Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree

Large Image :  Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number:
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year

Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree

Description
Model Number: Type: Tapered Rock Drill Bit
Usage: Mining, Coal, Iron Ore, Gold Mining Drilling Material: Tungsten Carbide
Color: Yellow,black Or Customization Button Bit Shape: Spherical And Ballistic
Face Shape: Flat Shape And Drop-center Shape Body Type: Normal Type And Retract Type
Diameter: 32-42mm Flushing Hole: 1or 2
High Light:

button drill bit

,

tapered drill bits

7/11/12 Degree Tungsten Carbide Tapered Button Drill Bit for Rock/Mining, ISO approved


Application
Tapered Quarry Button Rock Drill Bits 40mm 41mm 45mm With higher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness.
With premium PDC cutters, the bit has enhanced reliability and drilling efficiency.
Suitable formation:Medium hard to hard, solid hard rock formations


We manufactuer various tapered button bits in different degrees as below:
Bit diameter: 32mm ~ 48mm;
Tapered degree: 4°46’, 6°, 7°, 11°, 12°;
Shank sizes: Hex. 19mm, Hex, 22mm and Hex. 25mm;
Buttons configuration: 4 buttons, 5 buttons, 6 buttons, 7 buttons, 8 buttons, 9 buttons

Characteristics
1 Long life
2. Lower consumption
3. Wide selections of drill bits
4. Delivery quickly
5. Suitable for small hole range
6. Widely used in Dimensional Stone Quarrying Industry
7. Widely used in Underground Mining Industry

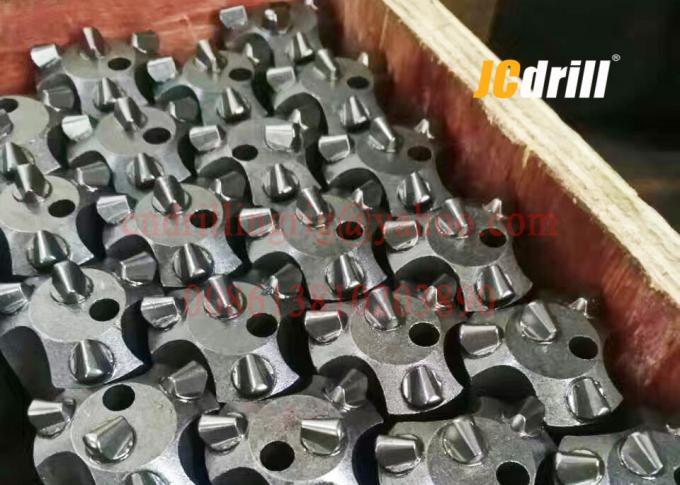

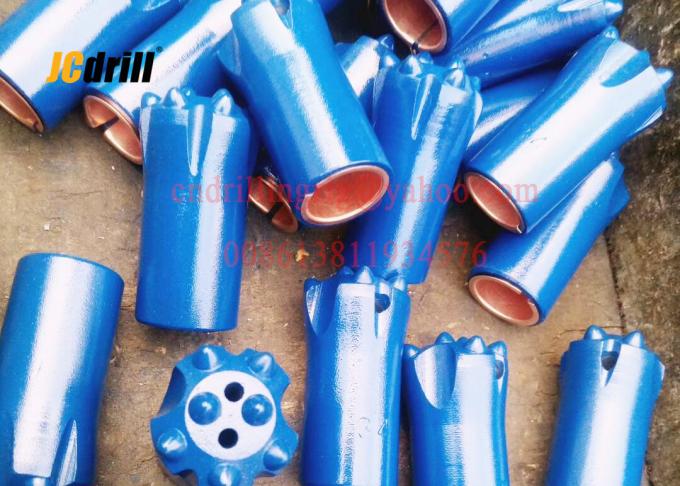

Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree 0Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree 1

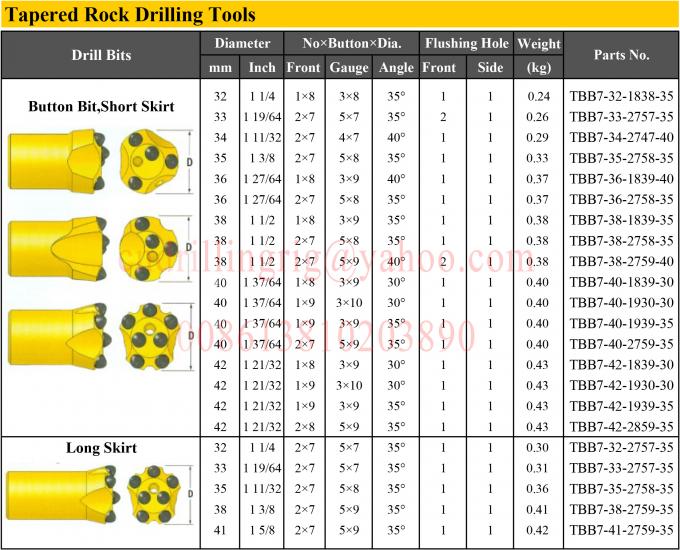

Specification
Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree 2
Packing& Delivery                                                                                                                                        ​
Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree 3 Tungsten Carbide Tapered Button Drill Bit For Rock / Mining 7/11/12 Degree 4
