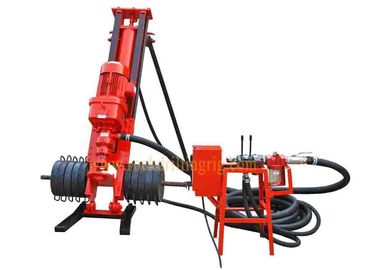

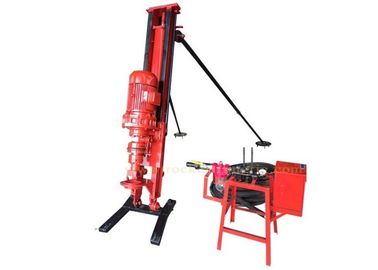

DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke

DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke
DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke

Large Image :  DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: DM100B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Standared export package
Delivery Time: 15 days.Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3000sets/year

DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke

Description
Brand: JCDRILL Condition: New
Weight: 65kg Warranty: 1year
Hole Depth: 20m Hole Diameter: 75-130mm
Feed Stroke: 1m
High Light:

crawler mounted drill rig

,

anchor drilling rig

DM100B Portable pneumatic drilling rig China manufacture machine



JCDRILL Portable Drill Rig

The drill DM100A&DM100B pneumatic drilling rig is high powered with easy operation system. It could be applied in open mine, water and electricity projects, railway and highway construction project. Within rock hardness range f=8-16, it can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes. It is really a grear helping hands for you to improve efficiency.

Application

DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke 0

Company

Jincheng provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of “Survival by quality, Development by credit’’.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “JINCHENG” a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

Specification

MODEL DM100A DM100B
Air pressure(Mpa) 0.5-0.7 0.5-0.7
Hole diameter(mm) 75-130 75-130
Air consumption(m3/min) 9-17 6-12
Hole depth(m) 20 20
Feed Stroke(m) 1 1
Lifting power(N) 600 600
Rotation Speed(r/min) 0-80 110
Rock hardness f=8-16 f=8-16
Drive mode Wind motor Motor(Electricity)
Rated power(kw) 4 4
Drill pipe 50×1000mm 50×1000mm
Size 2700×450×630 2700×420×610
Weight(kg) 245 300


Certification

DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke 1

Delivery

DM100B Portable Pneumatic Engineering Drilling Rig 20m Hole Depth 1m Feed Stroke 2

FAQ

Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them



A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.





A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
