CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter

China CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter supplier
CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter supplier CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter supplier

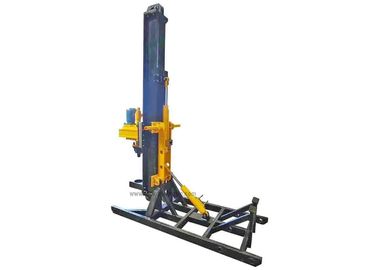

Large Image :  CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter

Product Details:

Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: AK30

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Nude
Delivery Time: 15 days.Negotiable
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGramm,L/C
Supply Ability: 3000sets/year
Contact Now
Detailed Product Description
Brand: JCDRILL Condition: New
Weight: 65kg Warranty: 1 Year
Hole Depth: 80m Hole Diameter: 130-200mm
Feed Stroke: 1.5m

CNC small hole edm drill machine can be used to process tungsten steel, aluminium and AK80.



JCDRILL Portable Drill Rig

AK-80 construction Anchor Drilling rig is a full hydraulic operated top drive power head drilling machine.

The engineering drilling rig is used to drill heavy duty pretension anchor holes at side slope of water power station, railway or highway projects, as well as drainage holes. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used for drilling small size water wells and high-pressure jet grouting holes.The construction drilling rig has been already widely used in various projects such as water power stations in Yunnan, Guangxi, Sichuan and Hubei provinces.It has also become the first priority machine for medium-duty anchoring-reinforcing projects in China.







Application

CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter

Charactaristic

1. It has great drilling capability, wide range of application , rapid drilling speed and high drilling

efficiency, as well as powerful ability of eliminating accident.

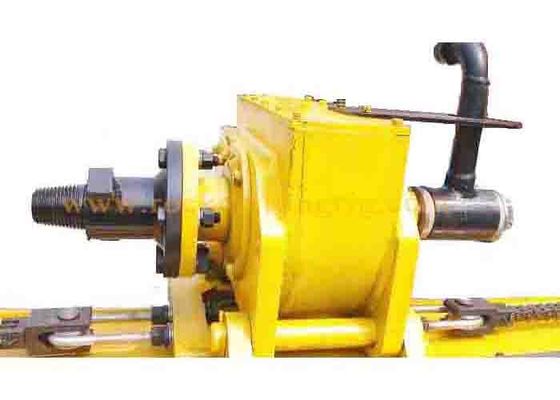

2. Extension mechanism, built-in output spindle of top drive head, can protect drilling tools effectively.

It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive

head and hole top plate toward the opposite direction.

3. A set of front-mounted adjustable columns on drill frame is used for adjusting height of mast front- end, which makes

it easy to align with hole site.

4. Rig structure is separate group design, it assures good disassembility , rapid and convenient mount

and transport, best working environment and lower labor strength as well as remote control and

operation.

5. Mast can be fixed on staging immediately without drill frame with auxiliary parts (horizontal axle and

buckles), which makes it possible for greatly reduce the machine weight and fastener transport.

6. The imported hydraulic motor, other main assembly preferentially selected home made reputed and

high quality products ensure its stable running performance, reliable product quality and long service life.

It has good interchangeability due to the high grade of standardization and serialization of wearing parts.

7. Full hydraulic drive and operation, stepless shift, simple operation, convenient maintenance and few

wearing parts.

8. It can be used with various drilling methods such as carbide bit drilling, anger drilling, DTH hammer drilling and follow-up casing drilling etc.

Specification

No. Specification Code
1 Hole depth 80-100m
2 Hole diameter 200-130 mm
3 Drill rod 89/114×1500 mm
4 Hole angle range 0-120°
5 Rotation Speed 5-180 r/min
6 Torque 3500NM
7 Feeding stroke 1800mm
8 Mast slide stroke 500mm
9 Lifting force 45 kN
10 Max.Feed Foce 30 kN
11 Hydraulic pressure 18 Mpa
12 Motor Y200L-4
13 Power 30Kw
14 Size 3400×1000×1500 mm
15 Weight 1700 kg
16 Weight of the heaviest Part 200 kg

If you need more details,please feel free let me know by email:sales3@rockdrillingrig.com.

Certification

CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter

Delivery

CNC Small Hole Engineering Drilling Rig Edm Drill Machine 130 - 200mm Hole Diameter

FAQ

Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them



A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.





A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.



Service

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.

We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig,Mud pump and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and excellent service network, which establish our brand "JINCHENG" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
