Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine

China Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine supplier
Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine supplier Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine supplier Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine supplier

Large Image :  Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine

Product Details:

Place of Origin: Beijing,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: Z Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000pcs/Year
Contact Now
Detailed Product Description
Model Number: Z-Series Condition: New
Spare Parts: Support OEM,ODM: Support
Factory Visit: Support Sample Order: Support

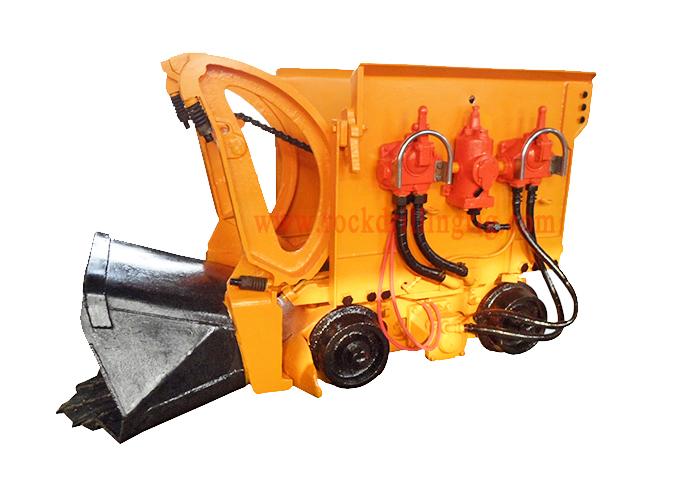

Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine


JCDRILL Mucker underground pneumatic rock loader pneumatic mucking loader
Application
Z Series Mining Mucker Machines are designed as light,compact,flexible,easy operated and stable working equipment for underground mining,suitable for normal rocks,stones,grits,iron mine,gold mine,granite mine,and other metal or nonmetal mines.
Maximum size of the loadable rocks can be 500mm diameter.And they gain highest efficiency by loading 100-400mm diameter rocks.
Z Series Mining Mucker Machines are suitable for level tunnels(8 degree maximum)for various underground mines.
Z Series Mining Mucker Machines are designed as electric or compressed air driven, single bucketed and automatic walking machines by loading at front and unloading at back.

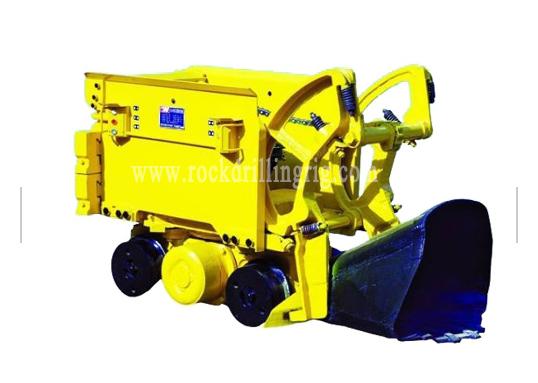

Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine
Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine
Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine
Specification

ModelZ-17AWZ-20Z-20WZ-30WZQ-17ZQ-26ZTQ-40
Loading capacity(m³/h)≥30≥48≥48≥72≥30≥60100
Bucket volume (m³)0.17±0.0170.2±0.020.2±0.020.3±0.030.17±0.0170.26±0.0260.45±0.04
Track gauge(mm)457,600,750,762,900
Walking power(kw)10.510.510.515≥9≥920×2 (HP)
Bucket power (kw)10.5131315≥15≥1525(HP)
Unloading height (mm)≥1210≥1250≥1300≥1340≥1100≥1250

Machine
Dimensions

(mm)

Length2120240024002620223024002600
Width1056133013301300109013801200
Height1260146014601570124515001500
Machine weight (kg)3500370037004500270027004300

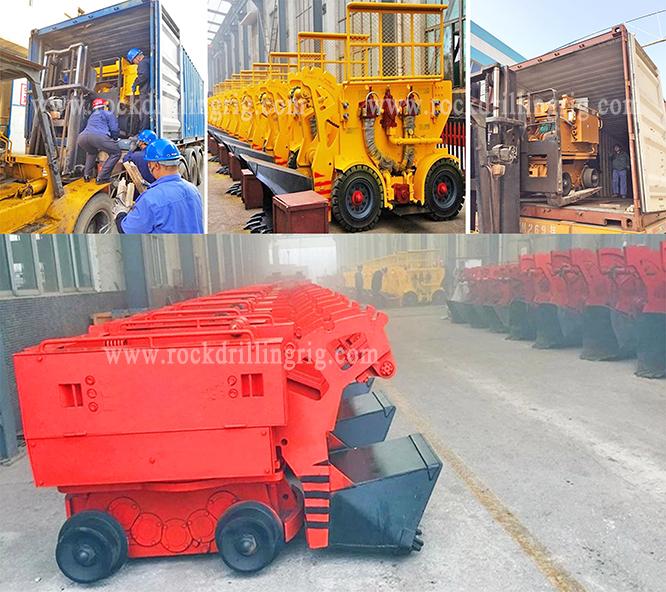

Packing& Delivery
Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine
Service
Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Purchase Process
Z Series Rock Loader machine High Performance Underground Tunnel Mucking Machine
FAQ
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from
.
