Underground Mining Wheeled Rock Loader Electric Type Compact Structure

China Underground Mining Wheeled Rock Loader Electric Type Compact Structure supplier
Underground Mining Wheeled Rock Loader Electric Type Compact Structure supplier Underground Mining Wheeled Rock Loader Electric Type Compact Structure supplier

Large Image :  Underground Mining Wheeled Rock Loader Electric Type Compact Structure

Product Details:

Place of Origin: Beijing,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: Z-40

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000pcs/Year
Contact Now
Detailed Product Description
Model Number: Z-40 Brand: JCDRILL
OEM,ODM: Support Factory Visit: Support
Sample Order: Support

Underground mining wheeled rock loader electric type







Model
Z-17AW
Z-20
Z-20W
Z-30W
Z-17
Z-26
Z-40
Loading capacity(m³/h)
≥30
≥48
≥48
≥72
≥30
≥60
100
Bucket volume (m³)
0.17±0.017
0.2±0.02
0.2±0.02
0.3±0.03
0.17±0.017
0.26±0.026
0.45±0.04
Track gauge(mm)
457,600,750,762,900

Walking power(kw)
10.5
10.5
10.5
15
≥9
≥9
20×2 (HP)
Bucket power (kw)
10.5
13
13
15
≥15
≥15
25(HP)
Unloading height (mm)
≥1210
≥1250
≥1300
≥1340
≥1100
≥1250

Machine
Dimensions

(mm)
Length
2120
2400
2400
2620
2230
2400
2600
Width
1056
1330
1330
1300
1090
1380
1200
Height
1260
1460
1460
1570
1245
1500
1500
Machine weight (kg)
3500
3700
3700
4500
2700
2700
4300





Application
Z series Rock Loaders are designed as light,compact,flexible,easy operated and stable working equipment for underground mining,suitable for normal rocks,stones,grits,iron mine,gold mine,granite mine,and other metal or nonmetal mines.Maximum size of the loadable rocks can be 500mm diameter.And they gain highest efficiency by loading 100-400mm diameter rocks.They are suitable for level tunnels(8 degree maximum)for various underground mines.They are designed as' electric or compressed air driven,single bucketed and automatic walking machines by loading at front and unloading at back.Of which,Z-20 series electric rock loaders won the First Product Title of Shandong Province and National Mechanical Industry in recent years.Z-30W Rock Loader is the national patent product.


Introduction
Z-40 series Wheel Rock Loaders are designed as light(originated in China),compact,flexible,easy operated and stable working equipment for underground mining,suitable for normal rocks,stones,grits,iron mine,gold mine,granite mine,and other metal or nonmetal mines.Maximum size of the loadable rocks can be 500mm diameter.And they gain highest efficiency by loading 100-400mm diameter rocks.They are suitable for level tunnels(8 degree maximum)for various underground mines.They are designed as compressed air driven,single bucketed and automatic walking machines by loading at front and unloading at back.

Underground Mining Wheeled Rock Loader Electric Type Compact Structure

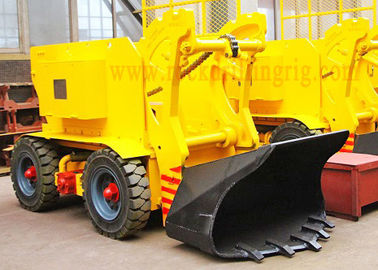

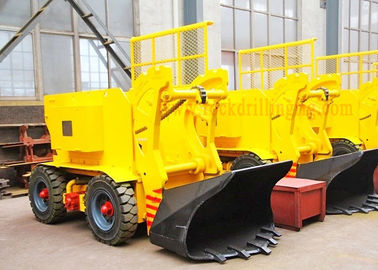

Z-40W Electric Mucker Mining Machine

Underground Mining Wheeled Rock Loader Electric Type Compact Structure
Underground Mining Wheeled Rock Loader Electric Type Compact Structure



Underground Mining Wheeled Rock Loader Electric Type Compact Structure

Packing& Delivery
Underground Mining Wheeled Rock Loader Electric Type Compact Structure
Service
Underground Mining Wheeled Rock Loader Electric Type Compact Structure

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Purchase Process
Underground Mining Wheeled Rock Loader Electric Type Compact Structure
FAQ
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from
.
