300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment

China 300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment supplier
300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment supplier 300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment supplier 300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment supplier

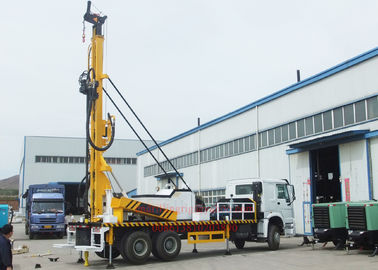

Large Image :  300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JKCS300

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year
Contact Now
Detailed Product Description
Model Number: JKCS300 Drilling Depth: 0-300m
Drilling Diameter: 90-450mm Truck: Sinotruck 6X4
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-100rpm Engine Power: 112kw
Drill Pipe: 89/102/114mm Mud Pump: BW450/BW850
Warranty: 1year Engine Brand: Cummins
Gradeability: 21° Pull Back Capacity: 12ton
Drill Pipe Length: 4.5m Rotary Torque: 4800N.m
Winch: Hydraulic

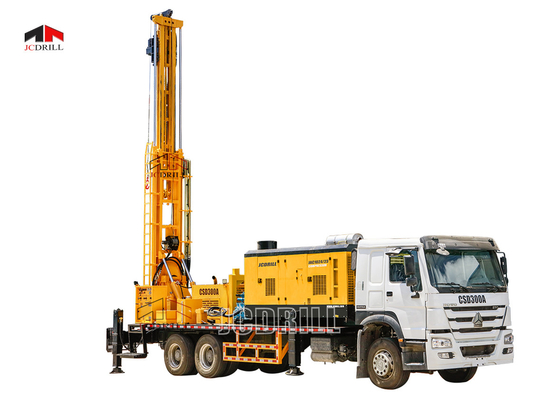

300m Drilling Depth Borehole Well Water Drilling Equipment , Truck Mounted Well Digging Machine JKCS300



Application


JKCS300 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
JKCS300 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.



Characteristics


1. The drilling rig can use air DTH Hammer drilling and mud drilling.

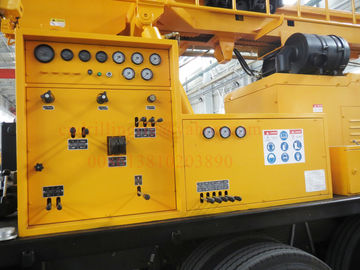

2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 8X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450/2A mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Cummins engine,112kw Cummins engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and160rpm stepless adjustment and the rotary torque is 4800-9600Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. Competitive in price, low cost of maintain.


Specification
NO. Specification Unit Code
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ105—Φ350
5 Hole Depth m 300
6 Rotation Torque Nm 4500 1st Gear
8000 2nd Ger
7 Rotation Speed rpm 0-80 1st Gear
0-160 2nd Ger
8 Drill pipe diameter mm 89,102,114
9 Drill pipe length mm 2500/4000
10 Axial pressure T 85KN
11 Max. Lifting force N 4000
12 Max. Feed Speed M/min 18
13 Max. Lifting Height m 8
14 Feed Stroke mm 3400
Winch
15 Max. Lifting force T 20
16 Lifting force of Main winch(Optional) T 4
17 Lifting force of hoist T 1.5
18 Length of steel wire rope(tool winch) m 100
19 Lifting height of tool winch m 8
Engine
20 Diesel Engine type CUMMINS
21 Rated Horse power Kw 112
22 Electrical System V 24
Compressor required
23 Compressor Type Rotary Screw/Movable
24 Pressure Required Mpa 1.05—4.5
25 Air consumption m³/min 16—60
Truck
26 Manufacturer   SINOTRUCK HOWO
27 Model   ZZ1257M5841W
28 Engine   WD615.62
29 Rated Horse power Hp/kw 270/198
30 Discharge Standard   EU-3
31 Drive type   6*4
32 Max.Speed Km/h 102.9
33 Steering wheel   left/right(Optional)
Mud Pump
34 Type   Hydrulic
35 Model   BW450
36 Stroke mm 110
37 Displacement L/Min 450
38 Discharge pressure (Mpa) Mpa 2-3
39 Suction tube diameter mm 89
40 Discharge pipe diameter mm 51
41 Liner Diameter mm 80
Hydraulic Welder(Optional)
42 Mnufacturer   Dynaset
43 Welding current A 60-250
44 Hydraulic Min.oilflow L/min 42
45 Nom/Max Pressure Bar 190/210
46 Voltage V 110/220VDC
47 Power Kw 1or2
48 L*W*H mm 390*190*230
49 Foam pump   Optional
Dimension
50 Net Weight T 22
51 Shipping Length mm 10600
52 Shipping Width mm 2400
53 Shipping Height mm 3050
54 Working size(L*W*H) mm 11000*2480*7147
300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging EquipmentPacking& Delivery

300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment 300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment

Service

300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
