Product Details:
|
| Model Number: | JS50 | Application: | Photovoltaic Pile Hole Drilling Rig |
|---|---|---|---|
| Drilling Depth: | 50m | Drilling Diameter: | 90-400mm |
| Drill Rod: | 2000mm | Rock Hardness: | F=8-16 |
| Rotation Speed: | 0-100rpm | Working Pressure: | 1.05-2.46Mpa |
| Air Consumption: | 11.3-21 M³/min | Feed Stroke: | 3.66m |
| Weight: | 5000kgs | Dust Collector: | Wet & Dry Optional |
| Drill Pipe: | 76/89mm DTH,130-400MM | Size: | 5900×2210×1470mm |
| Usage: | Photovoltaic Pile Hole Drilling | Rotation Torque: | 2250-4500NM |
| High Light: | crawler mounted drill rig,construction drilling equipment |
||

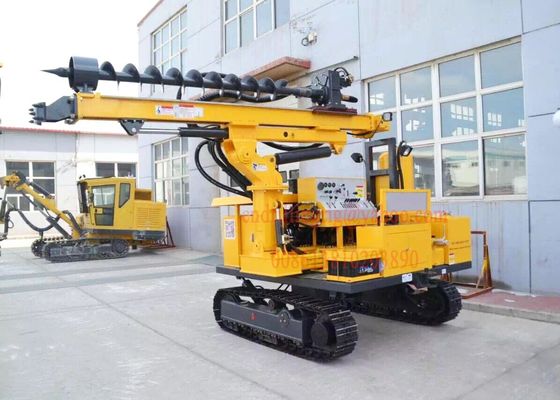

50M depth hydraulic photovoltaic pile hole drilling rig , Crawler mounted SOLAR pile hole drilling equipment
Application
JS50 fully hydraulic drilling rig is multifunctional, mainly applied in photovoltaic solar spiral pile,constuction, highway, bridge, water conservancy, hydroelectricity, mine, tunnel and so on. It is widely used in engineering hole construction, such as foundation investigation hole, deep foundation pile anchor hole, road or dam foundation reinforcement holes, drain hole, open pit blast holes, water wells,foundation piles,The , water Wells,photovoltaic solar spiral pile,DTH blasting construction, etc.
Characteristics
1. Hydraulic driven, smooth transmission, low noise, compacted control panel, easy to operate, labor-saving, safe and reliable.
2. Crawler chassis mounted, convenient and fast to move and position.
3. Main arm can move up and down, drilling tower slides on sliding frame, stable, safe and reliable.
4. Sliding frame can swing back and forth on the main arm seat, achieving drilling in angles, Besides, a meter is equipped on the sliding frame, showing drilling angles conveniently.
Moving of power head is driven by cylinder chain multi speed system with dual chain balance structure.
5. Multifunctional power head has features of sliding clearance compensation and adjustment compensation and stepless speed adjustment large torque slow speed
6. Power head has wide speed range, which can meet the requirement of various formation and different drilling process.
Specifiction
| Shipping Dimension(L*W*H)mm | mm | 2500×2270×3100 |
| Working Dimension(L*W*H)mm | mm | 2500×3245×4180 |
| Weight | Kgs | 5000 |
| Air pressure | Mpa | 1.05-2.46 |
| Bore diameter(DTH) (mm) | mm | 90-127 |
| Bore depth(m) | m | 0-40 |
| Drill pipe diameter(DTH) | mm | 76/89 |
| Bore diameter(screw)(mm) | mm | 130-300 |
| Drill pipe diameter(Screw) | mm | 130-400 |
| Climb ability(.) | ° | 15° |
| Feed stroke | mm | 2500 |
| Once promotion(mm) | mm | 2200 |
| Compensation Length | mm | 800 |
| Rotation speed | rpm | 0-160/0-80 |
| Rotation Torque | N.M | 2250-4500 |
| Pull back capacity | Kg.f | 2000 |
| Walking speed(Slow) | KM | 0-4 |
| Walking speed(Fast) | KM | 0-2 |
| Boom extention | mm | 0-350 |
| Max Swing of Boom | ° | 15L/R |
| Max Dump of Boom | ° | 0-105 |
| Chassis floating Angle | ° | 10° |
| Host power(kw) | Kw | 56 |
