Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm

Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm
Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm

Large Image :  Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: 168*4500mm
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year

Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm

Description
Model Number: 168*4500mm Type: Drill Collar
Usage: Oil Field, Natural Gas, Mining Drlling, Water Well Material: Tungsten Carbide
Application: Mining Drlling, Water Well Drilling Thread: 4-1/2API REG
Package: Carton And Wooden Case Length: 4.5m
Weight: 700kgs Processing Type: Forging
Nspection: SGS,BV
High Light:

water well drill bits

,

tricone rock roller bits

API Standard 4 Wings Step Security Drill Bits for Big Diameter / Water Well Drilling



Application

Drill collar is mainly used for providing drill bits with required drilling pressure, ensuring pull force transmitted to drill pipe and centralize the drill bit. According to API Spec7-1 specifications, the material quality is 4145H that’s after heat treatment, thread hardening treatment and phosphate to better anti-seize. It also can be produced upon customers’ requirements.

Characteristics

Heavy Weight Drill collar is an essential part of the performance of Jinke down hole drilling tools. Drill collars provide weight on bit for drilling through formations. Rig drillers are able to monitor weight applied to bit by monitoring through simple calculations, and a weight indicator scale, on rig floor. Drill collars are typically 31’ feet in length,thick walled, and heavy steel. They come

JCDRILL keeps a generous supply of carbon steel drill collars in stock. Lead Collar Lead collars purpose is to put a short amount of space between the drilling bit, and near bit stabilizer. This is just another way Jinke gives you the ability to tweak your performance needs as down hole challenges arise. By adding this short spacing between bit, and near bit stab, you stiffen the BHA wright at the bit, reducing bit walk, therefore, promoting a straighter hole. Jinke keeps a generous supply of carbon steel lead collars in stock.

Specification

Drill collar number Outside diameter Bore Length Beveldiameter Reference bending
And connection label D d L DF strength ratio
  in mm in mm ft m mm BSR
NC23 – 31 3 1/8 79.4 1 1/4 31.8 30 9.14 76.2 2.57:1
NC 26 – 35 3 1/2 88.9 1 1/2 38.1 30 9.14 82.9 2.42:1
NC31 – 41 4 1/8 104.8 2 50.8 30/31 9.14/9.45 100.4 2.43:1
NC 35 – 47 4 3/4 120.7 2 50.8 30/31 9.14/9.45 114.7 2.58:1
NC 38 – 50 5 127 2 1/4 57.2 30/31 9.14/9.45 121 2.38:1
NC 44 – 60 6 152.4 2 1/4 57.2 30/31 9.14/9.45 144.5 2.49:1
NC 44 – 60 6 152.4 2 13/16 71.4 30/31 9.14/9.45 144.5 2.84:1
NC 44 – 62 6 1/4 158.8 2 1/4 57.2 30/31 9.14/9.45 149.2 2.91:1
NC46 – 62 6 1/4 158.8 2 13/16 71.4 30/31 9.14/9.45 150 2.63:1
NC46 – 65 6 1/2 165.1 2 1/4 57.2 30/31 9.14/9.45 154.8 2.76:1
NC46 – 65 6 1/2 165.1 2 13/16 71.4 30/31 9.14/9.45 154.8 3.05:1
NC46 – 67 6 3/4 171.4 2 1/4 57.2 30/31 9.14/9.45 159.5 3.18:1
NC 50 – 70 7 177.8 2 1/4 57.2 30/31 9.14/9.45 164.7 2.54:1
NC 50 – 70 7 177.8 2 13/16 71.4 30/31 9.14/9.45 164.7 2.73:1
NC50 – 72 7 1/4 184.2 2 13/16 71.4 30/31 9.14/9.45 169.5 3.12:1
NC56 – 77 7 3/4 196.8 2 13/16 71.4 30/31 9.14/9.45 185.3 2.70:1
NC56 – 80 8 203.2 2 13/16 71.4 30/31 9.14/9.45 190.1 3.02:1
6 5/8 REG 8 1/4 209.6 2 13/16 71.4 30/31 9.14/9.45 195.6 2.93:1
NC61 – 90 9 228.6 2 13/16 71.4 30/31 9.14/9.45 212.7 3.17:1
7 5/8 REG 9 1/2 241.3 3 76.2 30/31 9.14/9.45 223.8 2.81:1
NC70 - 97 9 3/4 247.6 3 76.2 30/31 9.14/9.45 232.6 2.57:1
NC70– 100 10 254 3 76.2 30/31 9.14/9.45 237.3 2.81:1
8 5/8 REG 11 279.4 3 76.2 30/31 9.14/9.45 266.7 2.84:1

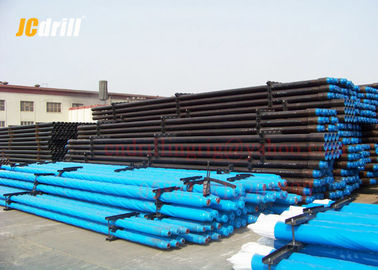

Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm 0

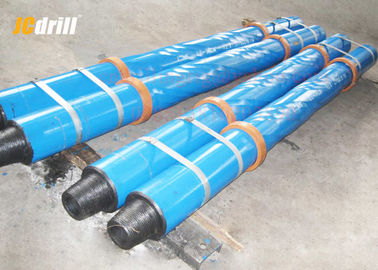

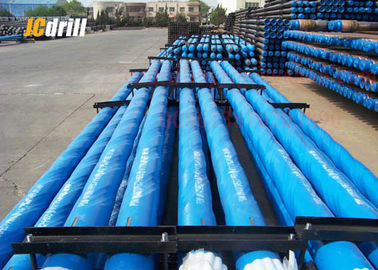

Packing& Delivery                                                                                                                                            ​

Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm 1 Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm 2

Service

Alloy Steel Deep Hole Water Well Drilling Spiral Drill Collar 168 x 4500mm 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
