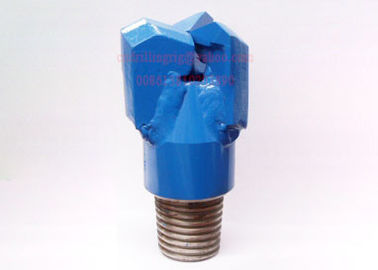

12" Forging 3 Wings Chevron Drag Bit With High Strength Flat PDC Cutter

12" Forging 3 Wings Chevron Drag Bit With High Strength Flat PDC Cutter
12" Forging 3 Wings Chevron Drag Bit With High Strength Flat PDC Cutter 12" Forging 3 Wings Chevron Drag Bit With High Strength Flat PDC Cutter

Large Image :  12" Forging 3 Wings Chevron Drag Bit With High Strength Flat PDC Cutter

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: 12"
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year

12" Forging 3 Wings Chevron Drag Bit With High Strength Flat PDC Cutter

Description
Model Number: 12" Type: Chevron Drag Bits
Usage: Oil Field, Natural Gas, Mining Drlling, Water Well Material: Tungsten Carbide
Application: Mining Drlling, Water Well Drilling Tooth Type: Insert Tooth
Thread: 4-1/2API REG Package: Carton And Wooden Case
Blades: Three Wings PDC Cutter: High Strength Flat PDC
Processing Type: Forging Nspection: SGS,BV
High Light:

tricone drill bit

,

water well drill bits

Forging 3 Wings Chevron Drag Bits with Tungsten Carbide Material High Strength Flat PDC Cutter



Application

3 wings chevron drag bits are one piece construction of alloy steel cast with tungsten carbide cutting tips and gauge sides to ensure longer life. It has 3 wings and 3 flushing holes. Compared with 4 wings, 3 wings chevron drag bits tend to drill faster and aggressive, whereas, are shorter lasting and less durable. Rotary table speed ofstep drag bits should be between 50 and 60 rpm with light to medium weight on bit (WOB), becauseharder formations, like hardpan and gravel, require more WOB.

3 wings chevron drag bits are economical tools when drilling softer geological formations and shallower depths, they are primarilydesigned formedium to hardformation and areused in areas thatcontain a lot ofrock ,such as hard shale, limestone, and tougher gravels, etc. And also chevron drag bits are recommended for drilling in Mining, Exploration, Environmental, Water well, Geo Exchange, etc.



The diameter and thread showed as above are usual size, other sizes are available upon request.

Thread size: 2 3/8'' API Reg, 2 7/8'' API Reg, 3 1/2'' API Reg, 4 1/2'' API Reg, 6 5/8'' API Reg, 2'' API IF, 2 3/8'' API IF, 2 7/8'' API IF, A Rod, N Rod, AW, BW, NW, AWJ, BWJ, NWJ.

Characteristics

1. A solid one piece heat treated, 4140 alloy steel body for bit strength & durability;
2. CNC threaded machining for proper installation &use;
3. Forgings are milled to better seat the carbide inserts.
4. Select tungsten carbide inserts 5.5mm thick are standard.
5. Relief is hand ground behind carbide inserts for maximum performance.

12" Forging 3 Wings Chevron Drag Bit With High Strength Flat PDC Cutter 0

Specification

No. Bit Diameter Bit Design Type Part No
  inch mm Step / Chevron
1 2 1/2〞 64 S/C DB212S/DB212C
2 2 3/4〞 70 S/C DB234S/DB234C
3 2 15/16〞 75 S/C DB21516S/DB21516C
4 3〞 76 S/C DB3S/DB3C
5 3 1/8〞 79 S/C DB318S/DB318C
6 3 1/4〞 83 S/C DB314S/DB314C
7 3 1/2〞 89 S/C DB312S/DB312C
8 3 5/8〞 92 S/C DB358S/DB358C
9 3 3/4〞 95 S/C DB334S/DB334C
10 3 7/8〞 98 S/C DB378S/DB378C
11 4〞 102 S/C DB4S/DB4C
12 4 1/8〞 105 S/C DB418S/DB418C
13 4 1/4〞 108 S/C DB414S/DB414C
14 4 1/2〞 114 S/C DB412S/DB412C
15 4 5/8〞 117 S/C DB458S/DB458C
16 4 3/4〞 121 S/C DB434S/DB434C
17 4 7/8〞 124 S/C DB478S/DB478C
18 5〞 127 S/C DB5S/DB5C
19 5 1/8〞 130 S/C DB518S/DB518C
20 5 1/4〞 133 S/C DB514S/DB514C
21 5 1/2〞 140 S/C DB512S/DB512C
22 5 5/8〞 143 S/C DB558S/DB558C
23 5 3/4〞 146 S/C DB534S/DB534C
24 5 7/8〞 149 S/C DB578S/DB578C
25 6〞 152 S/C DB6S/DB6C
26 6 1/8〞 156 S DB618S
27 6 1/4〞 159 S DB614S
28 6 1/2〞 165 S DB612S
29 6 5/8〞 168 S DB658S
30 6 3/4〞 171 S DB634S
31 6 7/8〞 175 S DB678S
32 7〞 178 S DB7S
33 7 1/8〞 181 S DB718S
34 7 1/4〞 184 S DB714S
35 7 1/2〞 191 S DB712S
36 7 5/8〞 194 S DB758S
37 7 3/4〞 197 S DB734S
38 7 7/8〞 200 S DB778S
39 8〞 203 S DB8S
40 8 1/8〞 206 S DB818S
41 8 1/4〞 210 S DB814S
42 8 1/2〞 216 S DB812S
43 8 5/8〞 219 S DB858S
44 8 3/4〞 222 S DB834S
45 8 7/8〞 225 S DB878S
46 9〞 229 S DB9S
47 9 1/8〞 232 S DB918S
48 9 1/4〞 235 S DB914S
49 9 1/2〞 241 S DB912S
50 9 5/8〞 244 S DB958S
51 9 3/4〞 248 S DB934S
52 9 7/8〞 251 S DB978
53 10〞 254 S DB10S
54 12〞 305 S DB12S
55 12 1/4〞 311 S DB1214S
56 15〞 381 S DB15S
57 17 1/2〞 445 S DB1712S
