Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity

China Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity supplier
Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity supplier Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity supplier Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity supplier

Large Image :  Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity

Product Details:

Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JKM458

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000Set/Year
Contact Now
Detailed Product Description
Model: JKM458 Rock Hardness: F=6-20
Type: Rotary Drilling Rig Usage: Anchor Drilling,construction
Drilling Depth: 40-200m Drilling Diameter: 90-250mm
Air Consumption: 11.3-25m3/min Drill Pipe Length: 3000mm
Hole Angle Range: 0-90° Rotary Speed: 30-80 R/min
Rotary Torque: 4000NM Power: 57kw
Weight: 6500Kgs Drill Rod Dia.: 76mm,89mm,102mm
Gradeability: 24° Feed Stroke: 3.66m
Size: 6900×2200×2200mm DTH Hammer: DHD3.5,Ql-40 DHD340 DHD350Q DHD360

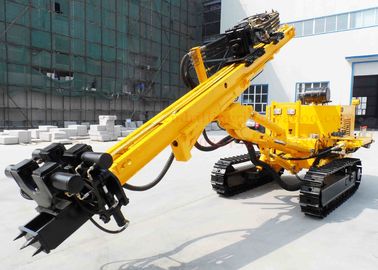

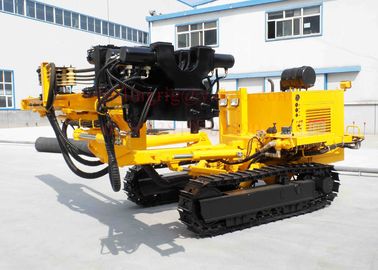

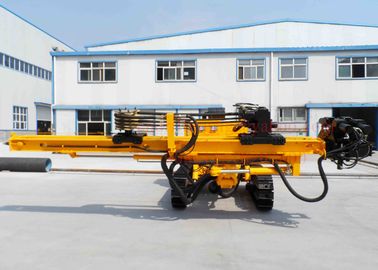

Crawler Construction Anchor Drilling Rig , 150m drilling capacity Rotary Crawler Drilling Rig JKM610

Diesel engine&electric motor drive available



Application

JKM610 crawler deep hole drilling rig is suitable for a variety of drill technique and methods,such as:DTH hammer drilling,Geological exploration drilling by dust collector,Non-cycle liquid dry auger drill,Mud circulation drilling,Down hole drilling with casing,etc.When the drill is working,only the DTH hammer consume the compressed air,especially in the difficult work condition,this drilling can always provide the operator excellent solutions.The principal hydraulic elements are all selected from import or home well famous products that make the machine have a stable, reliable and durable performance.



Characteristics

1. The great rotary torque of the drilling rig makes the application wider, the borehole speed faster, the  accident disposal capability better and drilling work efficiency higher.
2. Extension mechanism in the output spindle of top drive power head protects drilling tools effectively.
3. The gearshift mechanism of top drive power head adopts the hydraulic shift method which has the
 strongpoint of the quickness, convenience, reliability, etc. of the gearshift.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the
 intensity of operating work
5. The rig is crawler mounted, which makes the machine move easily.
6. Most of hydraulic elements are selected from world famous brand products in order to achieve high
 reliability and performance stability.
7. It can be used by various drilling methods, such as: Non-cycle liquid dry auger drill DTH hammer drill in rock layer by air Mud circulation drill in sand soil layer DTH hammer with tube drill in broken rock area by air
8. JKM458 crawler drilling rig has level system( drill arm) is able to adjust mast in different angle and
 height without moving drilling rig. It also can working for anchoring drilling in deep foundation basis.
9. JKM458 drill rig can install with jet grouting device in order to drill enlarge head anchoring work height of level during the drill work.

Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling CapacitySpecification

1 Rock Hardness F=6-20
2 Hole Diameter mm 90-254
3 Hole Depth DTH Drilling 150m
4 Hole Depth Overburden Drilling 40m
5 Rotation Torque Nm 7500
6 Rotation Speed rpm 0-60
7 Max. Feed force KN 40
8 Max. Lifting force KN 80
9 Max. Feed Speed M/min 15
10 Max. Lifting Speed M/min 15
11 Max Swing of Boom ° 45° left / 45° right
12 Max Dump of Boom ° up60 down20
13 Max Swing of Guide ° 30(L) / 91(R) or91(L) / 30(R)
14 Max Dump of Guide ° 180
15 Feed Stroke m 3
16 Engine brand   CUMMINS
17 Model   4BTA3.9-C100
18 Rated Horse power Kw 74
19 Electrical System 24 Volt
20 Cylinder   4
21 Clamping Force KN 157
22 Clamping Rod Diameter mm 76-219
23 Winch Lifting Force(Optional) T 1
24 Air Consumption M³/min 11-25
25 Compressor Type Rotary Screw/Movable
26 Compressor Pressure Required Mpa 1.2-2.4
27 Max. Travel Speed Km/h 2
28 Gradeability ° 24
29 Grouser Width mm 324
30 Net Weight kg 6600
31 Shipping Length mm 7500
32 Shipping Width mm 2300
33 Shipping Height mm 2500
34 Ground Clearance mm 252
35 Guide Extension mm 1200
36 Volume of Flow L/Min 200
37 Rated Pressure Mpa 1.6

Packing& Delivery

Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity

Service

Rotary Construction / Anchor Drilling Rig Crawler Mounted 150m Drilling Capacity

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate
