Product Details:
|
| Model Number: | AK100 | Drill Rock Hardness: | F=6-20 |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Usage: | Anchor Drilling,construction |
| Drilling Depth: | 100m | Drilling Diameter: | 90-200mm |
| Air Consumption: | 16-40m3/min | Drilling Pipe Length: | 1500mm |
| Hole Angle Range: | 0-360° | Rotary Speed: | 30-80 R/min |
| Rotary Torque: | 6000N.m | Voltage: | 12V |
| Power: | 24kw | Weight: | 300Kgs |
| High Light: | crawler mounted drill rig,anchor drilling rig |
||

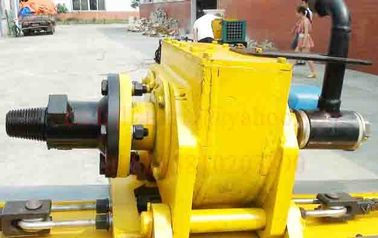

Slope Reinforcement Portable Anchor Drilling Rig with Stepless Shift Hydraulic Drive AK100
Diesel engine&electric motor drive available
Application
AK100 portable anchoring drilling rig is a complete hydraulic power head machine. It applies to the
construction of big tonnage stress anchoring hole for water power station, railway, highway,
drainage hole and geologic calamity fathering for landslide prevention and rock collapse. It is also
used to drill small size water well and high-pressure jet grouting hole.
Characteristics
1. It has great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident.
2. Extension mechanism in the output spindle of top drive power head protects drilling tools
effectively. It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive power head and hole top plate toward the
opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with working position.
4. Rig structure is separate group design, it assures good disassembility , rapid and convenient mount and transport, best working environment and lower labor strength as well as remote control and
operation.
5. Rig structure is separate group design, it assures good disassembility , rapid and convenient mount
and transport, better working environment and lower labor strength as well as remote control and operation.
6. The imported hydraulic motor, other main assembly preferentially selected home made reputed and high quality products ensure its stable running performance, reliable product quality and long service life.
It has good interchangeability due to the high grade of standardization and seriesization of wearing parts.
7. Full hydraulic drive and operate, stepless shift, simple operate, convenient maintain and few wearing parts.
8. It can be used with various drilling method such as carbide bit drilling, anger drilling, DTH hammer drilling, follow-up casing drilling etc.
Specification
| Drilling depth | 60-120m |
| Drilling diameter | ¢ 250- ¢ 110mm |
| drill diameter | ¢ 114 × 1500, ¢ 89 × 1500 (mm) |
| Drilling dip | 0-180 ° |
| power head output speed (positive and negative) | 5-42 (low) r / min 5-90 (upscale) r / min |
| Rated output torque of the power head | 6000NM |
| Power head stroke | 1800 mm |
| mast slip stroke | 500 mm |
| Power head lifting force | 55KN |
| Power Head biggest feeding force | 40KN |
| hydraulic system rated pressure | 18Mpa |
| Motor Power | 37KW |
| Host Dimension | 3450 × 1750 × 1500 (mm) |
| Rig weight | 2500Kg |
| maximum disintegration weight | 300Kg |
