Product Details:
|
| Model Number: | AK80E | Drill Rock Hardness: | F=6-20 |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Usage: | Anchor Drilling,construction |
| Drilling Depth: | 80m | Drilling Diameter: | 130-200mm |
| Air Consumption: | 16-40m3/min | Drilling Pipe Length: | 1500mm |
| Hole Angle Range: | 0-360° | Rotary Speed: | 30-80 R/min |
| Rotary Torque: | 2500N.m | Voltage: | 12V |
| Power: | 24kw | Weight: | 120Kgs |
| High Light: | anchor drilling rig,construction drilling equipment |
||
Portable Slope Engineering Anchor Drilling Rig with 80m Drilling depth 200mm diameter Capacity AK80E
Diesel engine&electric motor drive available
Application

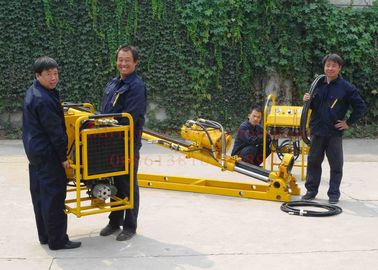

AK-80 construction Anchor Drilling rig is a full hydraulic operated top drive power head drilling machine.

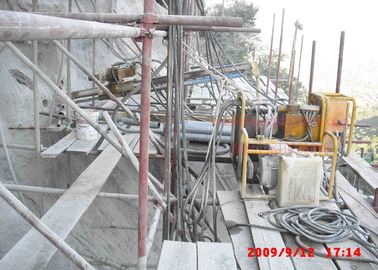

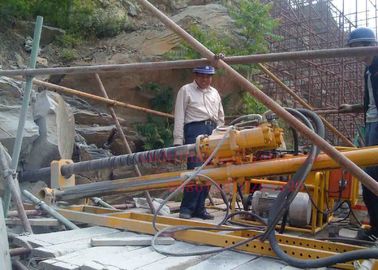

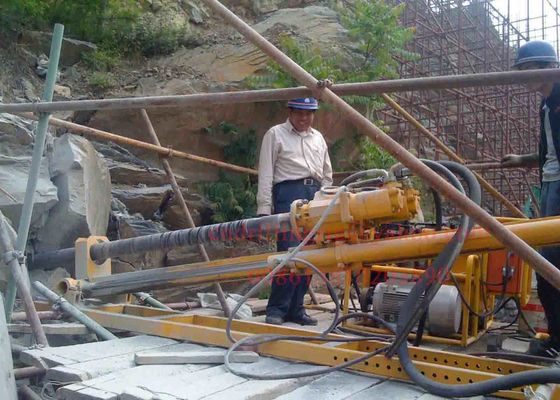

The engineering drilling rig is used to drill heavy duty pretension anchor holes at side slope of water power station, railway or highway projects, as well as drainage holes. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used for drilling small size water wells and high-pressure jet grouting holes.The construction drilling rig has been already widely used in various projects such as water power stations in Yunnan, Guangxi, Sichuan and Hubei provinces.
It has also become the first priority machine for medium-duty anchoring-reinforcing projects in China.
Characteristics
1. It has great drilling capability, wide range of application , rapid drilling speed and high drilling
efficiency, as well as powerful ability of eliminating accident.
2. Extension mechanism, built-in output spindle of top drive head, can protect drilling tools effectively.
It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive
head and hole top plate toward the opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used for adjusting height of mast front- end, which makes
it easy to align with hole site.
4. Rig structure is separate group design, it assures good disassembility , rapid and convenient mount
and transport, best working environment and lower labor strength as well as remote control and
operation.
5. Mast can be fixed on staging immediately without drill frame with auxiliary parts (horizontal axle and
buckles), which makes it possible for greatly reduce the machine weight and fastener transport.
6. The imported hydraulic motor, other main assembly preferentially selected home made reputed and
high quality products ensure its stable running performance, reliable product quality and long service life.
It has good interchangeability due to the high grade of standardization and serialization of wearing parts.
7. Full hydraulic drive and operation, stepless shift, simple operation, convenient maintenance and few
wearing parts.
8. It can be used with various drilling methods such as carbide bit drilling, anger drilling, DTH hammer drilling and follow-up casing drilling etc.
Specification
| No. | Specification | Data. |
| 1 | Hole depth | 80-100m |
| 2 | Hole diameter | 200-130 mm |
| 3 | Drill rod | 89/114×1500 mm |
| 4 | Hole angle range | 0-120° |
| 5 | Rotation Speed | 5-180 r/min |
| 6 | Torque | 3500NM |
| 7 | Feeding stroke | 1800mm |
| 8 | Mast slide stroke | 500mm |
| 9 | Lifting force | 45 kN |
| 10 | Max.Feed Foce | 30 kN |
| 11 | Hydraulic pressure | 18 Mpa |
| 12 | Motor | Y200L-4 |
| 13 | Power | 30Kw |
| 14 | Size | 3400×1000×1500 mm |
| 15 | Weight | 1700 kg |
| 16 | Weight of the heaviest Part | 200 kg |
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate
