Triplex Deep Hole Drilling Mud Pump , Single Acting Cylinder Reciprocating Piston Pump

China Triplex Deep Hole Drilling Mud Pump , Single Acting Cylinder Reciprocating Piston Pump supplier
Triplex Deep Hole Drilling Mud Pump , Single Acting Cylinder Reciprocating Piston Pump supplier Triplex Deep Hole Drilling Mud Pump , Single Acting Cylinder Reciprocating Piston Pump supplier

Large Image :  Triplex Deep Hole Drilling Mud Pump , Single Acting Cylinder Reciprocating Piston Pump

Product Details:

Place of Origin: China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: BW1500/12

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock or according quantity
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 20000Set/Year
Contact Now
Detailed Product Description
Model Number: BW1500/12 Type: Gear Pump
Application: Hole Drilling Power Type: Diesel
Material: Metal / Coil Flow: 1500L/min
Pressure: 12Mpa Dimension: 1800*1400*1500mm
Liner Diameter: 153mm Weight: 2450kgs

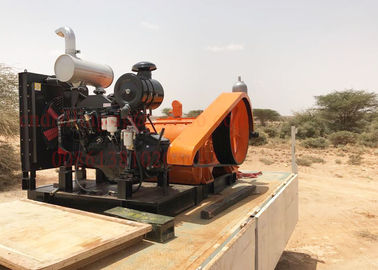

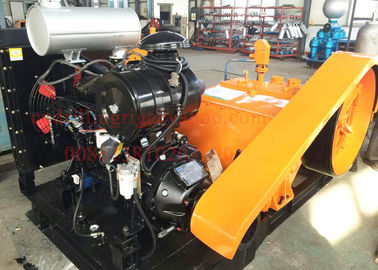

132KW Cummins engine driven High Pressure Triplex Drilling Mud Pump for 800m water well hole

Application

BW1500/12 deep hole drilling hydraulic plunger triplex heavy duty slurry pump



BW1500/12 mud pump used for various engineering drilling rigs, geological drilling rig when drilling would like to nip the circulating fluid (mud or water),which is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.



BW1500/12 mud pump is a horizontal single-acting cylinder reciprocating piston pump with variable speed to change the displacement and pressure selected for use.


They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.



Characteristics

1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Exploration: Coal mining exploration, Ore exploration;

3. Water well : Small hole diameter water well drilling;

4. Pipe-installing : Geothermal pipe-installing for heat pump;

5. Foundation piling: Small-diameter hole foundation piling drilling.

Specification
Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee

Type Horizontal single cylinder reciprocating double action piston pump
Cylinder diameter(mm) 153
Stroke(mm) 150
Pump speed(Time/min) 136 98
Flow(L/min) 1500 1080
Pressure(MPa) 8 12
Belt 700XC-5
V-belt speed 470r/min
Engine Brand Cummins
Power(Kw) 132
Inlet pipe inner diameter 127mm
Drain pipe inner diameter 76mm
Return pipe inner diameter 40mm
Shape Size 1800*1400*1500
Weight(kg) 2450

Packing& Delivery​

Triplex Deep Hole Drilling Mud Pump , Single Acting Cylinder Reciprocating Piston Pump

Service

Triplex Deep Hole Drilling Mud Pump , Single Acting Cylinder Reciprocating Piston Pump

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
