Single Acting Mud Pumps For Drilling Rigs , Reciprocating Triplex Piston Pump

China Single Acting Mud Pumps For Drilling Rigs , Reciprocating Triplex Piston Pump supplier
Single Acting Mud Pumps For Drilling Rigs , Reciprocating Triplex Piston Pump supplier Single Acting Mud Pumps For Drilling Rigs , Reciprocating Triplex Piston Pump supplier

Large Image :  Single Acting Mud Pumps For Drilling Rigs , Reciprocating Triplex Piston Pump

Product Details:

Place of Origin: China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: BW750

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock or according quantity
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 20000Set/Year
Contact Now
Detailed Product Description
Model Number: BW400/10 Type: Gear Pump
Application: Hole Drilling Power Type: Diesel/Hydraulic/Electric
Material: Metal / Coil Flow: 750L/min
Pressure: 3-6Mpa Dimension: 1500*890*1230mm
Liner Diameter: 85mm 65mm Weight: 1400kgs

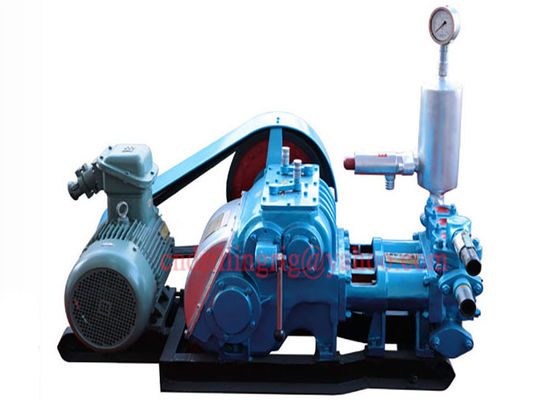

High Performance BW750 Horizontal Reciprocating Single acting Triplex Piston well drilling Mud Pump



BW750 mud pump is a horizontal three cylinder reciprocating single acting piston pump. Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.



BW750 mud water pump is extensively utilized in industries including geology, coal, building, metallurgy, chemicals, railway, water conservancy, oil and other fields.

Characteristics

BW750 mud water pump is designed with multiple shifts for flexible speed and displacement adjustment. With compact structure and light weight, this reciprocating piston pump is also energy-saving, highly-effective and durable in use. In addition, it is easy to operate and convenient to maintain, keeping the maintenance cost low. This mud pump is primarily used as low and medium grouting pump in geological drilling, geological engineering construction and foundation treatment.

Tag: drilling mud pump, mud pumps for drilling rigs

Specification
Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee

Model BW750 mud pump
Type Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter (mm) 110
Stroke (mm) 110
Pump speed (times/min) 240 166 112 78
Flow (l/min) 750 505 345 235
Pressure (Mpa) 3 4 5 6
Power (Kw) 55
Shape size (mm) 1500*890*1230
Weight (kg) 1400



Service

Single Acting Mud Pumps For Drilling Rigs , Reciprocating Triplex Piston Pump

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process​                                                                                                                                                Single Acting Mud Pumps For Drilling Rigs , Reciprocating Triplex Piston Pump
