Lightweight Engineering Drilling Rig AK60

Lightweight Engineering Drilling Rig AK60
Lightweight Engineering Drilling Rig AK60 Lightweight Engineering Drilling Rig AK60 Lightweight Engineering Drilling Rig AK60

Large Image :  Lightweight Engineering Drilling Rig AK60

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: AK60

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Year
Detailed Product Description
Condition: New Power Type: Diesel Engine
Drilling Depth: 60m Drilling Diameter: 70-150mm
Rotation Torque: 1500N.M Rotation Speed: 3600 RPM
Drill Pipe Dia: 89/76mm Drill Pipe Length: 1500mm
Lifting Capacity: 40 KN Diesel Engine: 12KW
Mast Slide Stroke: 500 Mm Weight: 400 Kg
Color: Customized Drilling Method: DTH&Mud Drilling
High Light:

anchor drilling rig

,

construction drilling equipment

Lightweight Engineering Drilling Rig 60m Slope Reinforcement Full Hydraulic Anchor Drilling Rig





Application

AK-60 construction Anchor Drilling rig is a full hydraulic operated top drive power head drilling machine.

The engineering drilling rig is used to drill heavy duty pretension anchor holes at side slope of water power station, railway or highway projects, as well as drainage holes. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used for drilling small size water wells and high-pressure jet grouting holes.The construction drilling rig has been already widely used in various projects such as water power stations in Yunnan, Guangxi, Sichuan and Hubei provinces.

It has also become the first priority machine for medium-duty anchoring-reinforcing projects in China.



Characteristics

1. It has great drilling capability, wide range of application , rapid drilling speed and high drilling

efficiency, as well as powerful ability of eliminating accident.
2. Extension mechanism, built-in output spindle of top drive head, can protect drilling tools effectively.

It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive

head and hole top plate toward the opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used for adjusting height of mast front- end, which makes

it easy to align with hole site.
4. Rig structure is separate group design, it assures good disassembility , rapid and convenient mount

and transport, best working environment and lower labor strength as well as remote control and

operation.
5. Mast can be fixed on staging immediately without drill frame with auxiliary parts (horizontal axle and

buckles), which makes it possible for greatly reduce the machine weight and fastener transport.
6. The imported hydraulic motor, other main assembly preferentially selected home made reputed and

high quality products ensure its stable running performance, reliable product quality and long service life.
It has good interchangeability due to the high grade of standardization and serialization of wearing parts.
7. Full hydraulic drive and operation, stepless shift, simple operation, convenient maintenance and few

wearing parts.
8. It can be used with various drilling methods such as carbide bit drilling, anger drilling, DTH hammer drilling and follow-up casing drilling etc.

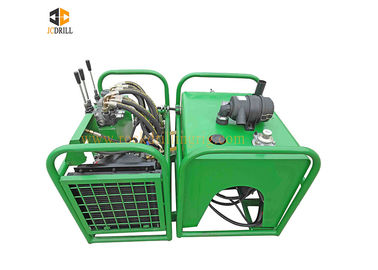

Lightweight Engineering Drilling Rig AK60 0

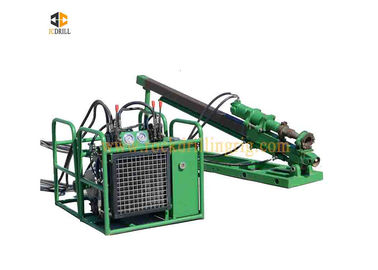

Lightweight Engineering Drilling Rig AK60 1

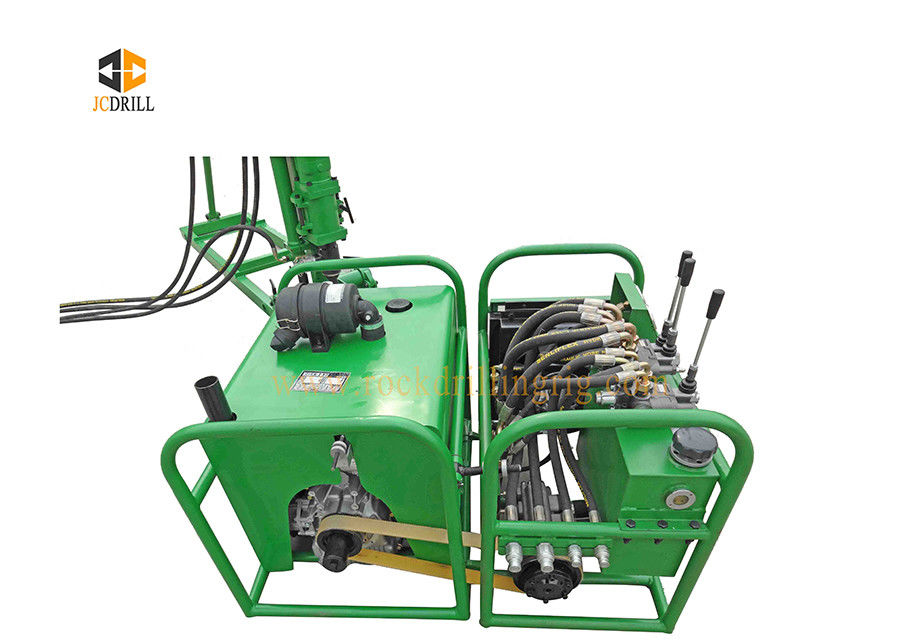

Lightweight Engineering Drilling Rig AK60 2

Lightweight Engineering Drilling Rig AK60 3



Specification

Drilling Capacity AK60(Engine Power)
Type Hydraulic(4part)
Hole depth 60 m
Hole diameter Φ70-Φ150 mm
Drilling rod(Diameter×Length ) 76mm*1500m/89×1500 mm
Hole angle range 0-360°
Output speed of top drive power head 30-60 r/min
Output torque of top drive power head 1500 Nm
Feeding stroke of top drive power head 1800 mm
Mast slide stroke 500 mm
Maximum lifting capacity of top drive power head 40 kN
Maximum thrust force of top drive power head 15 kN
Rated pressure of hydraulic system 20 Mpa
Drilling guide type Hydraulic Cylinder feed
Hydraulic Clamp Available
Engine/Motor KIPOR
Type 4-stroke,direct injection
Cylinder Two-cylinder,V-twin
Cooling System air-cooled
Model KD2V86F
Power 12 kW
Working Speed 3600rpm
Weight 65kgs
Hydraulic system Gear pump
Type Gear pump(3 union pump)
Flow rate 16/12/5L/min
Pressure 18MPa

Packing Delivery

Lightweight Engineering Drilling Rig AK60 4
