Down Hole Geological Prospecting Reverse Circulation Drill Bit

small.img.alt small.img.alt

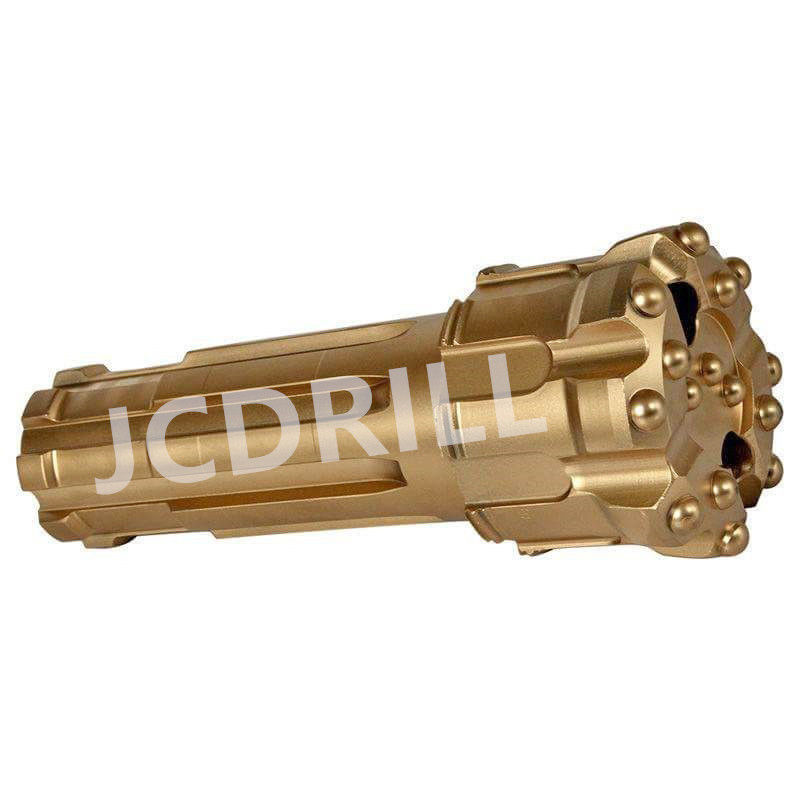

Large Image :  Down Hole Geological Prospecting Reverse Circulation Drill Bit

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: All Models
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Iron shelf
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000pcs/year
Detailed Product Description
Parts Name: RC Drill Bit Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Hole Drlling
High Light:

geological prospecting reverse circulation drill bit


down hole reverse circulation drill bit


down hole rc drill bit

Russia best selling oil well use rc drill bit/Reverse circulation bit

1.Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.

2.The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.

3. The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.

4. Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.

5. In different conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.

Down Hole Geological Prospecting Reverse Circulation Drill Bit 0


Specification Head Shape Head Diameter(mm) Shank Length Spline Port Holes Weight(Kg)
RE004 RE004-115 Drop-Center Face 115 271 8 2 11.5
RE004-121 Drop-Center Face 121 271 8 2 12.1
RE004-124 Drop-Center Face 124 271 8 2 12.3
RE004-127 Drop-Center Face 127 271 8 2 12.5
RE542 RE542-121 Drop-Center Face 121 225 8 2 10.7
RE542-124 Drop-Center Face 124 225 8 2 11
RE542-127 Drop-Center Face 127 225 8 2 11.2
RE542-133 Drop-Center Face 133 225 8 2 11.4
PR52 PR52-133 Drop-Center Face 133 282 8 2 16.5
PR52-136 Drop-Center Face 136 282 8 2 16.7
PR52-140 Drop-Center Face 140 282 8 2 16.9
PR52-143 Drop-Center Face 143 282 8 2 17.1
PR54R PR54R-136 Drop-Center Face 136 261 8 2 18.3
PR54R-140 Drop-Center Face 140 261 8 2 18.5
PR54R-143 Drop-Center Face 143 261 8 2 18.7
PR54R-146 Drop-Center Face 146 261 8 2 18.9
PR54R-165 Drop-Center Face 165 261 8 2 21
PR54R-178 Drop-Center Face 178 261 8 2 22.5



1) Face design: flat, convex, concave

2) Inserts design: spherical, ballistic, parabolic

3) Designed to work with RC hammers

4) Bit diameter: 90mm to 213mm

5) Reliable quality

6) Long service life

7) Smooth flushing effect


Down Hole Geological Prospecting Reverse Circulation Drill Bit 1
