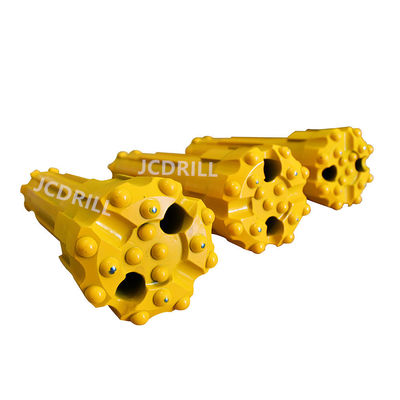

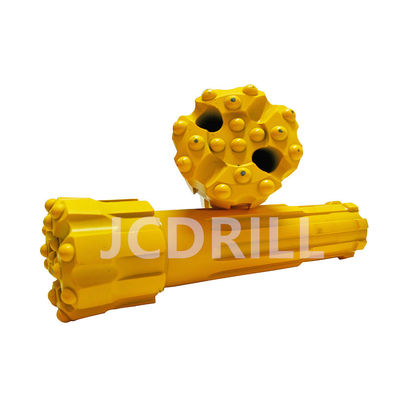

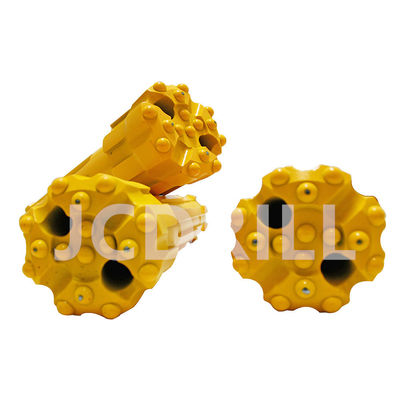

213mm Dia Rc Reverse Circulation Dth Drill Bits

213mm Dia Rc Reverse Circulation Dth Drill Bits
213mm Dia Rc Reverse Circulation Dth Drill Bits 213mm Dia Rc Reverse Circulation Dth Drill Bits 213mm Dia Rc Reverse Circulation Dth Drill Bits

Large Image :  213mm Dia Rc Reverse Circulation Dth Drill Bits

Product Details:

Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: All Models

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Iron shelf
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000pcs/year
Detailed Product Description
Parts Name: RC Drill Bit Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Hole Drlling
High Light:

reverse circulation dth drill bits

,

rc dth drill bits

,

213mm dia dth drill bits

RC Reverse Circulation Drilling Bits for drilling



Specification

Specification Head Shape Head Diameter(mm) Shank Length Spline Port Holes Weight(Kg)
RE004 RE004-115 Drop-Center Face 115 271 8 2 11.5
RE004-121 Drop-Center Face 121 271 8 2 12.1
RE004-124 Drop-Center Face 124 271 8 2 12.3
RE004-127 Drop-Center Face 127 271 8 2 12.5
RE542 RE542-121 Drop-Center Face 121 225 8 2 10.7
RE542-124 Drop-Center Face 124 225 8 2 11
RE542-127 Drop-Center Face 127 225 8 2 11.2
RE542-133 Drop-Center Face 133 225 8 2 11.4
PR52 PR52-133 Drop-Center Face 133 282 8 2 16.5
PR52-136 Drop-Center Face 136 282 8 2 16.7
PR52-140 Drop-Center Face 140 282 8 2 16.9
PR52-143 Drop-Center Face 143 282 8 2 17.1
PR54R PR54R-136 Drop-Center Face 136 261 8 2 18.3
PR54R-140 Drop-Center Face 140 261 8 2 18.5
PR54R-143 Drop-Center Face 143 261 8 2 18.7
PR54R-146 Drop-Center Face 146 261 8 2 18.9
PR54R-165 Drop-Center Face 165 261 8 2 21
PR54R-178 Drop-Center Face 178 261 8 2 22.5



Certification

213mm Dia Rc Reverse Circulation Dth Drill Bits 0



Features

1) Face design: flat, convex, concave

2) Inserts design: spherical, ballistic, parabolic

3) Designed to work with RC hammers

4) Bit diameter: 90mm to 213mm

5) Reliable quality

6) Long service life

7) Smooth flushing effect



Delivery
213mm Dia Rc Reverse Circulation Dth Drill Bits 1
