1 Year Warranty 33kw Dth Water Well Drilling Rig

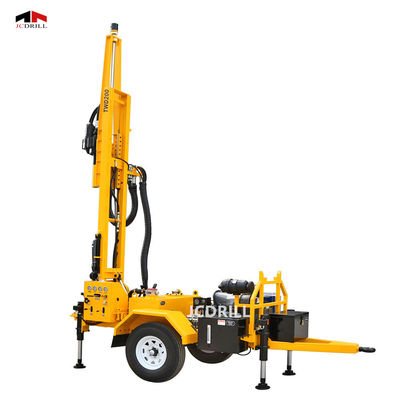

1 Year Warranty 33kw Dth Water Well Drilling Rig
1 Year Warranty 33kw Dth Water Well Drilling Rig 1 Year Warranty 33kw Dth Water Well Drilling Rig

Large Image :  1 Year Warranty 33kw Dth Water Well Drilling Rig

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year
Detailed Product Description
Model Number: TWD200 Drilling Depth: 0-200m
Drilling Diameter: 0-254mm Drill Pipe Length: 2/3m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Engine Power: 33KW Mud Pump: BW250/BW200
Warranty: 1 Year
High Light:

33KW water well drilling rig

,

33KW water well rig

,

DTH water well drilling rig

TWD200 Trailer Hydraulic Borehole Drill Water Well Drilling Rig

TWD200 is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.

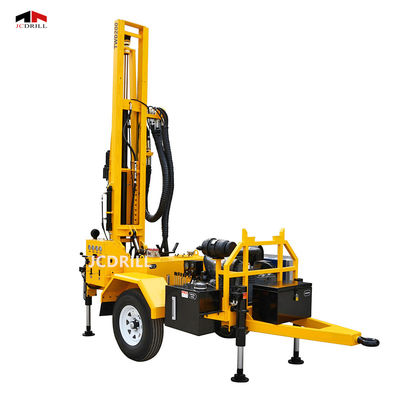

1 Year Warranty 33kw Dth Water Well Drilling Rig 0

Specification

Geology drilled All kinds
Drill depth 0-200 m
Drilling Diameter 90 - 200mm(DTH.max.6''hammer)
Drilling Diameter 90 - 250mm(Mud Drilling)
Rig assembly 1 complete unit, main engine driven
Mobility 2 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
Foam pump Hydraulic driven(Optional)
Weight 2700 kg
Rotation & Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2600 N-m
Speed 0 - 80 rpm.
Head travel 2.25 meter
Pull-up capacity 8.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Feed Stroke 2350mm
Diesel engine
Brnd Deutz
Power 33KW
Model F3-912
Speed 2300r/min
Cooling type air
Drill Pipe
Drill pipe length 2.00 meter
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Foam Pump(Optional)
Flow capacity 400 liter/min
Foam Tank 50 liter
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 180 liter
Stabilizing Jack
2 rear hydraulic & 1 mechnical jacks(2 front Hydraulic jack optional).
Bore 150 mm.
Stroke 520 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 40 bar
Oil tank capacity 8 liter
Dimension
Overall length 4100mm
Overall width 1890mm
Overall height 2100 mm

Advantages

1 One person operation, save labor cost.

2 With universal wheel,convenient to transport.

3 Economical,can be owned by common families.

4 Light weight, simple operation,very easy to install.

Showing
1 Year Warranty 33kw Dth Water Well Drilling Rig 1                                                                  FAQ

Q: Are you original manufacturer?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have

the whole series products you need.

Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take?

A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.

Q: How about after sales service?

A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

Q: Spare Parts When You Need Them

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
