Product Details:
|
| Drilling Depth: | 40m | Drilling Diameter: | 90-152mm |
|---|---|---|---|
| Max Swing Of Boom: | 45° Left / 45° Right | Shipping Dimension(L*W*H): | 6000*2000*2480mm |
| Drilling Rod Diameter: | 60,76,89mm | Net Weight: | 5500kgs |
| Ground Clearance: | 252mm | Compressor Type: | Rotary Screw/Movable |
| Engine Type: | 4Cylinder,water Cooling | Max. Travel Speed(Slow/Fast): | 2/3Km/h |
| High Light: | rock blasting drilling machine,big rotation torque blasting drilling machine,rock drilling machine for blasting |
||
big rotation torque two motor rotary head rock blasting drilling rig for 40m drilling
>> Introduction of the drilling rig

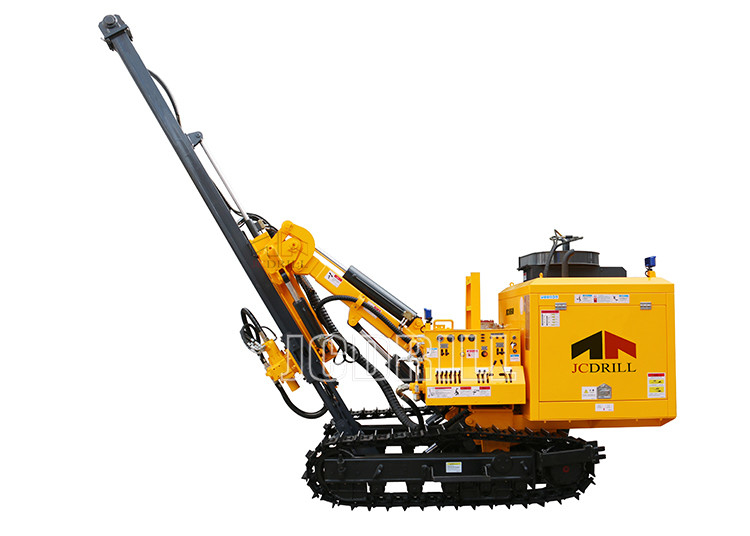

JC860 hydraulic down-hole drill is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate.
JC860 DTH drilling rig is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight.
JC860 hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.
The Rugged track was driven by hydraulic motor with high traveling ability.The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.
>> Characteristics of the drilling rig
>> Specification of the drilling rig
| Specification | Unit | JC860 |
| Drilling Specification | ||
| Rock Hardness | F=6-20 | |
| Hole Diameter | mm | 90-152 |
| Hole Depth | m | 40 |
| Drilling Rod Diameter | mm | 60,76,89 |

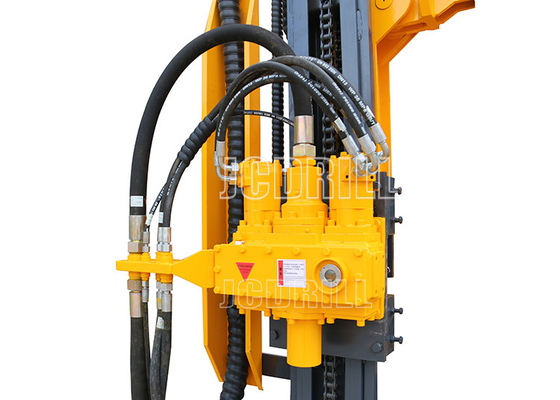

| Rotary Head | ||
| Rotation Torque | Nm | 2650 |
| Rotation Speed(Normal and Fast) | rpm | 0-82/0-112 |
| Feeding System | ||
| Max. Feed force | KN | 25 |
| Max. Lifting force | KN | 30 |
| Max. Feed Speed | M/min | 15 |
| Max. Lifting Speed | M/min | 15 |
| Boom&Guide | ||
| Max Swing of Boom | ° | 45° left / 45° right |
| Max Dump of Boom | ° | up60 down20 |
| Max Swing of Mast | ° | 30(L) / 91(R) or91(L) / 30(R) |
| Max Dump of Mast | ° | 180 |
| Feed Stroke | m | 3.2 |

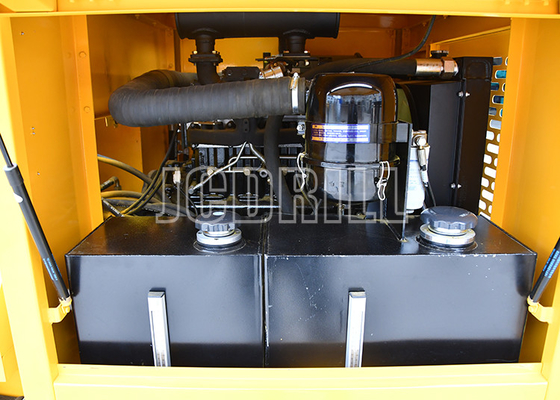

| Engine | ||
| Manufacturer | YUCHAI | |
| Rated Horse power | Kw | 63 |
| Type | 4Cylinder,water cooling | |
| Air Compressor demand | ||
| Air Consumption | M³/min | 11.3-21m2/min(1.4-2.4 Mpa) |
| Compressor Type | Rotary Screw/Movable | |
| Dust Collector | ||
| Dry/Wet | Optional | |
| General Specification | ||
| Max. Travel Speed(Slow/Fast) | Km/h | 2/3 |
| Gradeability | ° | 24 |
| Net Weight | kgs | 5500 |
| Shipping Dimension(L*W*H) | mm | 6000*2000*2480 |
| Ground Clearance | mm | 252 |
>> Package & Shipment
>> Overseas Service&Project
>> About JCDRILL
|
JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also. |
