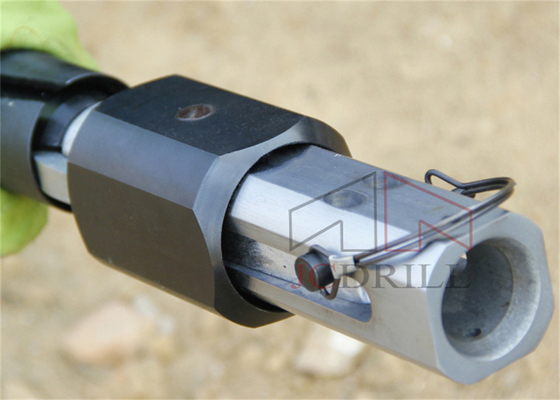

Ezy Lock Overshot Hq Head For Wireline Overshot Assembly

Ezy Lock Overshot Hq Head For Wireline Overshot Assembly
Ezy Lock Overshot Hq Head For Wireline Overshot Assembly Ezy Lock Overshot Hq Head For Wireline Overshot Assembly Ezy Lock Overshot Hq Head For Wireline Overshot Assembly Ezy Lock Overshot Hq Head For Wireline Overshot Assembly

Large Image :  Ezy Lock Overshot Hq Head For Wireline Overshot Assembly

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: DLG-HQ
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Ezy Lock Overshot Hq Head For Wireline Overshot Assembly

Description
Model Number: DLG-HQ Type: Overshot For Wireline Core Drilling
Standard: AQ BQ NQ HQ PQ Product Name: Core Overshot Assembly
Application: Wire Line Core Drilling Color: Black
Package: Wooden Box Package Series: DCDMA Wire Line Q Series
Weight: 18.40 Kg
High Light:

wireline overshot assembly hq head

,

ezy lock overshot hq head

HQ Ezy Lock Overshot Head For HQ Wireline Overshot Assembly
>> Introduction

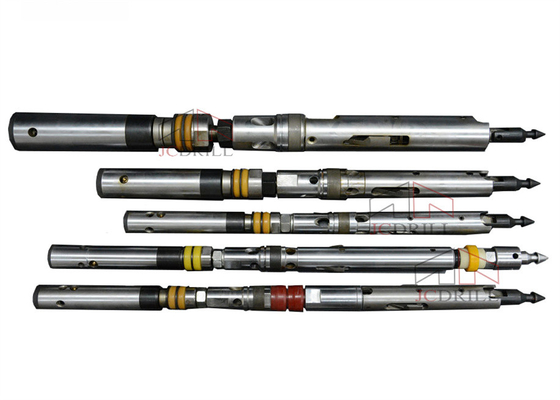

We offer a complete line of single & double and triple tube core barrels, which willl provide superior performance and obtain the full recovery of the sample in any application of diamond core drilling.
Using a wireline system, core is recovered quickly by retrieving the inner tube directly through the drill string. The rods remin in the hole until the bit needs to be replaced. This has big cost advantages when drilling deep holes for mineral exploration.

Ezy Lock Overshot Hq Head For Wireline Overshot Assembly 0

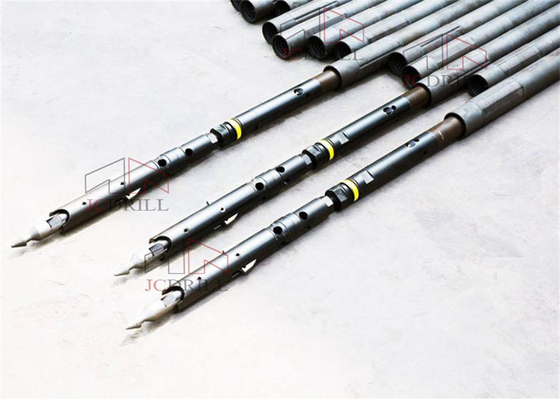

Overshot is a necessary device in wireline drilling. It's dropped on a cable and directly couples onto and lift up the inner tube assembly, eliminating the need to couple and uncouple the rod string each time the core is retrieved.

Ezy Lock Overshot is a modified product based on compact overshot. It protects against accidental release of the core barrel. This is ideal for suface application when hoisting above ground. Q series overhshot are available in A, B, N, H and P size.

>> HQ Overshot Assembly structure diagram

ID# Item Decription Unit Weight(Kgs)
1-25 Overshot DLQ-HQ Set 18.40
1 Eye bolt D-HQ-XZ Pc 0.10
2 Cable swivel collar D-HQ-ZT Pc 0.15
3 Inner ring D-HQ-ZCT Pc 0.01
4 Bearing ZQ-51102 Pc 0.02
5 Plain washer PDQ-12 Pc 0.01
6 Lock nut ZSLM-M12 Pc 0.05
7 Cable swivel body D-HQ-ZHQ Pc 7.20
8 Crease Fitting ZYZ-M6*1 Pc 0.01
9 Jar tube D-HQ-LJT Pc 2.80
10 Locking sleeve D-HQ-TKG Pc 2.30
11 Jar bar D-HQ-LG Pc 1.00
12 Stover lock nut D-HQ-TJLM Pc 0.06
13 Adjusting washer D-HQ-TZDP Group 0.02
14 Overshot cap D-HQ-XYG Pc 0.05
15 Overshot Spring D-HQ-YSTH Pc 0.03
16 Overshot Sleeve D-HQ-SJT Pc 0.25
17 Overshot Head D-HQ-LGJ Pc 2.50
18 Set screw JDLD-M10*6 Pc 0.01
19 Ball(2) GQ-8.7 Group 0.02
20 Lifting dog spring(2) D-HQ-LGTH Group 0.01
21 Guiding sleeve D-HQ-DXT   1.10
22 Round pin D-HQ-YZX Pc 0.08
23 Spring pin TXX-6*45 Pc 0.01
24 Lifting dog(2) D-HQ-DLG Pc 0.60
25 Stop hppk and pin D-HQ-GDXG Pc 0.02
25A Stop hook D-HQ-DLG Pc 0.01
25B Stop pin D-HQ-GDXG Pc 0.01


>> Package & Shipment
Ezy Lock Overshot Hq Head For Wireline Overshot Assembly 1

>> Our Service

Ezy Lock Overshot Hq Head For Wireline Overshot Assembly 2

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.





>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.









>> About Us


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.











>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
