Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig

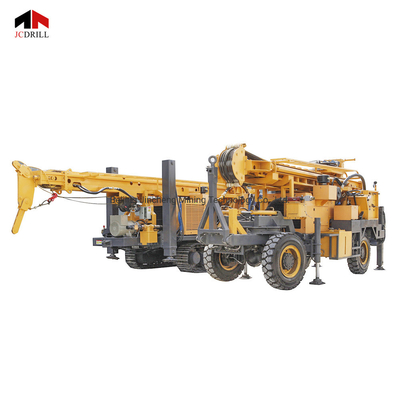

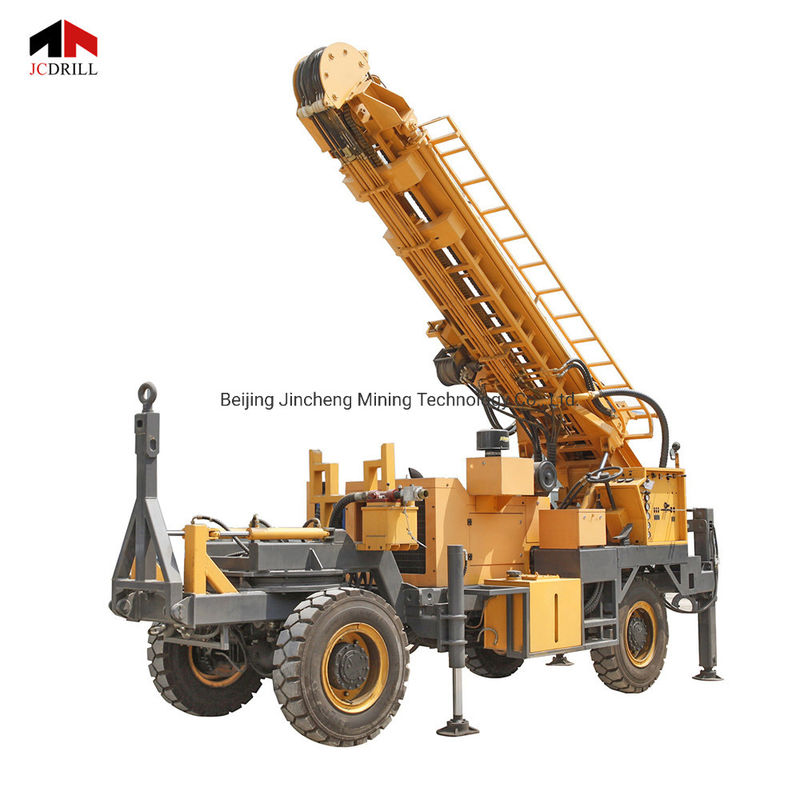

Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig
Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig

Large Image :  Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD300
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig

Description
Model Number: TWD300 Water Well Drilling Rig Drilling Depth: 300m
Drilling Diameter: 450mm Drill Pipe Length: 3000mm 4500mm 6000mm
Usage: Drilling Water Well Drilling Methold: DTH Drilling MUD Drilling
Engine Power: 92KW Or Others Mud Pump: BW450
Warranty: 1year
High Light:

92kw rotary water well drilling rig

,

borehole rotary water well drilling rig

,

trailer mounted rotary well drilling rig



Trailer Mounted Hydraulic Rotary Borehole Water Well Drilling Rig



>> Introduction

>> TWD300 Multi-functional trailer mounted water well drilling rig is a efficient,multifunction full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used forwater well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other
foundation working, it is popular at home and abroad
.

>> TWD300 trailer mounted drilling rig candrilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.



>> Characteristic


>> The drilling rig can use air DTH Hammer drilling and mud drilling.
>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay,
sand and rock if it is equipped with suitable drilling bit.



>> Specification

General
1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ105-Φ350
5 Hole Depth m 300
6 Rotation Torque Nm 7500
7 Rotation Speed rpm 0-80 1st Gear
0-160 2nd Gear
8 Drill pipe diameter mm 89/114
9 Drill pipe length mm 3000
10 Most. Feed Speed M/min 18
11 Most. Lifting Speed M/min 5-20
12 Feed Stroke mm 3400
11 Most. Lifting force N 120000
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Lifting height of tool winch m 6
Engine
15 Diesel Engine type CMS
16 Rated Horse power Kw 92
17 Electrical System Volt 24
Compressor required
18 Compressor Type Rotary Screw/Movable
19 Pressure Required Mpa 1.2-3.5
20 Air consumption m³/min 16-40
Mud Pump(Optional)
21 Type   Hydraulic
22 Model   BW450
23 Stroke mm 100
24 Displacement L/Min 250
25 Discharge pressure (Mpa) Mpa 2.5
26 Suction tube diameter mm 85
27 Discharge pipe diameter mm 51
28 Foam pump   Optional
Dimension
29 Net Weight KG 6100
30 Shipping Length mm 5800
31 Shipping Width mm 2210
32 Shipping Height mm 2850
33 Ground Clearance mm 300
34 Volume of Flow mm 200

Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig 0

>> Package & Delivery
​​Trailer Mounted 92KW Hydraulic Rotary Water Well Drilling Rig 1

>> About us



JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.

We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
