Wireless 300mm Portable Diamond Drill Rig For 600m

Wireless 300mm Portable Diamond Drill Rig For 600m
Wireless 300mm Portable Diamond Drill Rig For 600m
Wireless 300mm Portable Diamond Drill Rig For 600m Wireless 300mm Portable Diamond Drill Rig For 600m Wireless 300mm Portable Diamond Drill Rig For 600m

Large Image :  Wireless 300mm Portable Diamond Drill Rig For 600m

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JXY600T
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Wireless 300mm Portable Diamond Drill Rig For 600m

Description
Model Number: JXY600T Dimension: 3700×1850×3200mm
Driling Diameter: 75-300mm Drilling Depth: Max.600m
Weight: 3000kgs Power: Diesel Engine
Color: Customised Drill Rod Length: 4200mm
Mud Pump: 160/200L/min Rotation Speed: 0-100rpm
High Light:

300mm portable diamond drill rig

,

wireless portable diamond drill rig

,

300mm diamond core rig



Wireless diamond core drilling and mining drilling rig equipment machine for sale

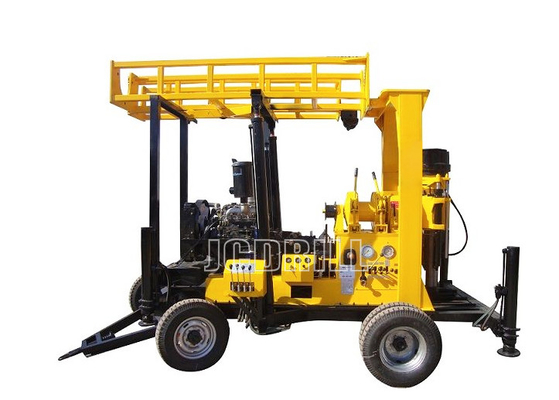

The JXY600T trailer mounted water well drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar,transferring, convenient and easy to drill horizontal adjustment.
Wireless 300mm Portable Diamond Drill Rig For 600m 0
>> With hydraulic feed mechanism, improve drilling efficiency.
>> Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation,
flexible and reliable; Can realize remote speed change, more humanization operation;
>> It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.
>> The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
>> Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity.

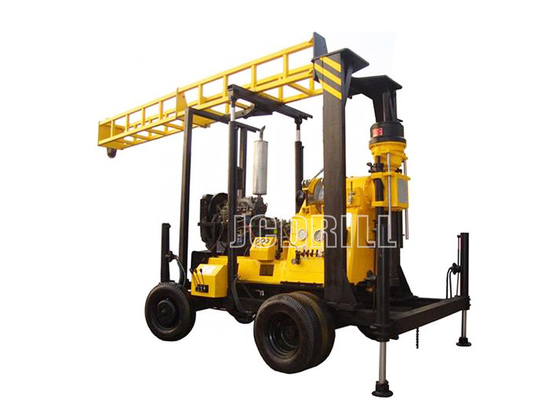

Wireless 300mm Portable Diamond Drill Rig For 600m 1
>> Characteristics

The hydraulic control drill mast can be raised and put down by the hydraulic cylinders,which increases labor safety; saves time and labor usage.The drilling rig adopts automatic telescopic mast, hydraulic cylinder support, hydraulic control drilling tower up and down, the operation saves time and labor, is safe and reliable.
>> Four long hydraulic stands can lift the machine to Max. height 1.3m so that the rig can be loaded and unload from the truck.
>> 24V electric start for diesel engine permits the rig to work in all kind of extreme weather condition.
>> The hydraulic tube twist machine can be installed, which saves time and increases the working efficiency to unload the rod.

>> Falling tower for hydraulic operation, convenient and reliable
>> Diesel engine with electric start, reduce labor intensity.

>> It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.
>> High efficiency and low cost.

>> Specification

Drilling depth m 75 219 273 500 600
Drilling Dia. mm 600 210 150 80 60
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42,50,60,76
Drilling angle   65-90°
Rotary Spindle
Spindle forward speed r/min 30-1050
Spindle reverse speed r/min 29-137
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity Kg 6000
Spindle Max.Torque N/M 3800
Main Winch (Hydraulic)
Single line lifting speed m/s 0.5-1.9
Tightrope diameter mm 12.5
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure m 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure m 450
Drilling rig Power(choose one between the following two)
Diesel engine kw/hp 38/50
Electric motor KW 22kw
Trailer
Loading Capacity T 4
Walking Speed km/h 25
Mini turning radius m 6.8
Weight&Size
Weight kg 3000
Dimension mm 3700×1850×3200


>> Package & Shipment

Wireless 300mm Portable Diamond Drill Rig For 600m 2

>> Overseas Service&Project

Wireless 300mm Portable Diamond Drill Rig For 600m 3

>> Our Service

Wireless 300mm Portable Diamond Drill Rig For 600m 4

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.





>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.









>> Certification

Wireless 300mm Portable Diamond Drill Rig For 600m 5
>> About Us


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.











>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
