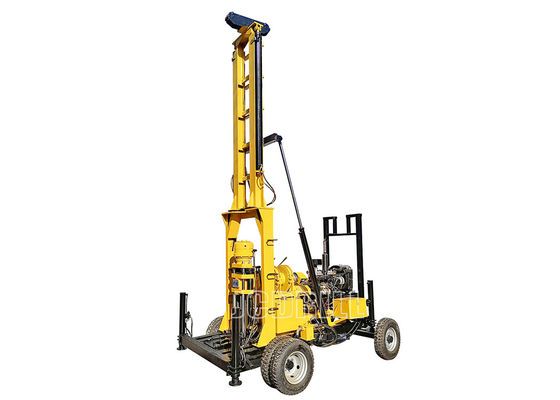

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth
Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth
Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth

Large Image :  Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JXY400T
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth

Description
Model Number: JXY400T Dimension: 3980*1950*2750 Mm
Driling Diameter: 75-600mm Drilling Depth: Max.400m
Weight: 3000kgs Power: Diesel Engine
Color: Customised Drill Rod Length: 4200mm
High Light:

400m one man well drilling rig

,

diesel one man well drilling rig

,

trailer base portable borehole drilling machine

Trailer base water well drilling rig machine driven by diesel engine with 400m drilling depth
>> Application
The JXY400T trailer mounted drilling rig is equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity.

Falling tower for hydraulic operation, convenient and reliable.

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth 0



>> Characteristics
1. Power Supply
It can be driven by either electric motor or diesel engine.
2. Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.
3. Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
4. Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.
5. Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.
6. Direct Use
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.

>> Specification

Drilling depth M 75 219 273 400 600
Drilling Dia. mm 400 160 130 100 30
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42, 50, 60, 76
Drilling angle   0-90°
Rotary Spindle
Spindle forward speed R/min 50-1150
Spindle reverse speed R/min 29-137
Spindle stroke mm 600
Spindle inner diameter mm 62
Spindle lifting capacity Kg 6000
Spindle Max. Torque N/M 2800
Main Winch (Hydraulic)
Single line lifting speed M/s 0.5-1.9
Tightrope diameter mm 14
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure M 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure M 450
Drilling rig Power(choose one between the following two)
Diesel engine Kw/HP 17.6/24
Electric motor KW Y160L, 18.5kw
Trailer
Loading Capacity T 8.5
Weight&Size
Weight Kg 3000
Dimension mm 3980×1950×2750

>> Package & Shipment

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth 1

>> Overseas Service&Project

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth 2

>> Our Service

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth 3

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.





>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.









>> Certification

Trailer Base One Man Well Drilling Rig Driven By Diesel Engine 400m Depth 4
>> About Us


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.











>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
