Product Details:
|
| Type: | Hydraulic Drilling Rig | Power: | 15Kw |
|---|---|---|---|
| Warranty: | 1 Year | Drilling Depth: | 200m |
| Drilling Diameter: | 70-220mm | Dimension(l*w*h): | 4200*1980*2150MM |
| Weight: | 3990KG | Color: | Yellow |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,commissioning And Training | Usage: | Water Well |
| High Light: | 130m crawler mounted drill rig,nq crawler mounted drill rig,130m crawler drilling rig |
||

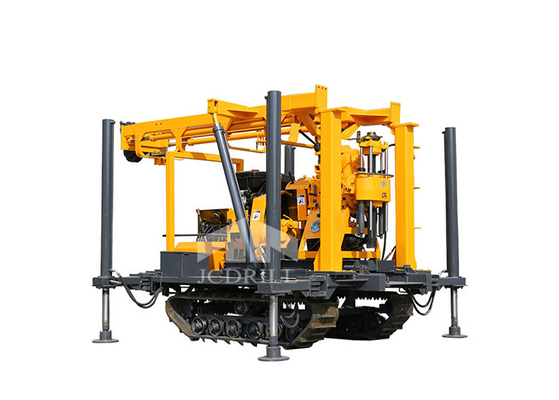

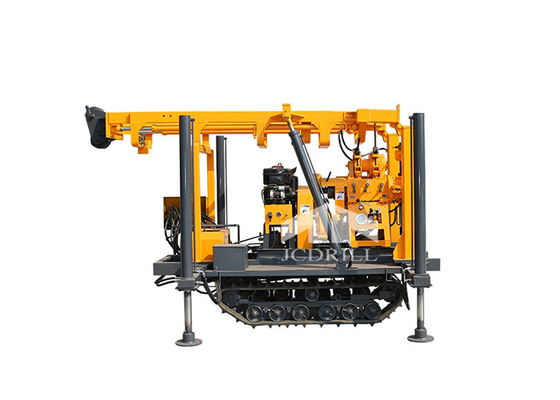

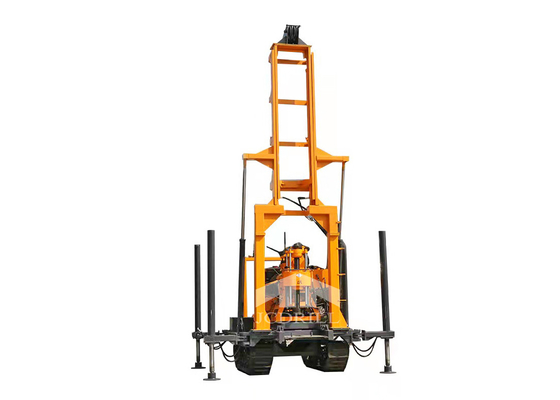

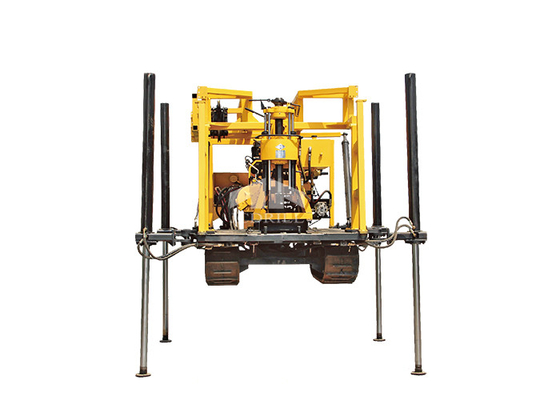

200m Easy-moving Crawler Mounted Water Well Drill Rig Hydraulic Core Machine
>> Introduction
XYY-L Series crawler mounted diamond core drilling rig is a kind of core drill rig driven with tungalloy-carbide-tipped bit and diamond-bit, small-diameter. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.
Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.
Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.
Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.
The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.
>> Specification
| Main machine technical parameter | JXY130L | JXY180L | JXY200L |
| Drilling depth(m) | 130m | 180m | 200m |
| Drilling hole diameter | 220 | 220 | 325 |
| End Hole Diameter(mm) | 75 | 75 | 75 |
| Drill Rod diameter(mm) | 42, 60 | 42, 60 | 42, 50, 60 |
| Drill Angle | 90 | 90 | 90 |
| Weight engine(kg) | 2885 | 3900 | 3990 |
| Machine Dimension(mm) | 4200*1980*2150 | 4200*1980*2150 | 4200*1980*2150 |
| Power | |||
| Matching engine power(KW) | 13.2 | 13.2 | 15 |
| Spindle | |||
| Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Hoist | |||
| Single rope lift force(kg) | 1800 | 2100 | 2500 |
| Single rope lift speed(m/s) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope diameter(mm) | 9.3 | 9.3 | 12.5 |
| Rope capacity(m) | 27 | 27 | 35 |
| Drill Mast | |||
| Rated load (Ton) | 18 | 18 | 18 |
| Effective height(m) | 6.5 | 6.5 | 6.5 |
| Mud Pump | |||
| Flow(L/MIN) | 160 | 160 | 160 |
| Max. pressure(Mpa) | 1.3 | 1.3 | 1.3 |
| Back and forth times/min | 165 | 165 | 165 |
| Inlet hose dia.(mm) | 51 | 51 | 51 |
| Outlet hose dia.(mm) | 32 | 32 | 32 |
| Crawler Chassis | 20° | 20° | 20° |
| Crawler Size | 10Km/h | 10Km/h | 10Km/h |
| Climbing angle | 1300 | 1300 | 1300 |
| Moving Speed(Km/h) | 18 | 18 | 18 |
| Hydraulic Landing leg valid height | 6.5 | 6.5 | 6.5 |
>> FAQ
|
Q: Are you original manufacturer?
|
Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them |
|
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." | A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week. |
