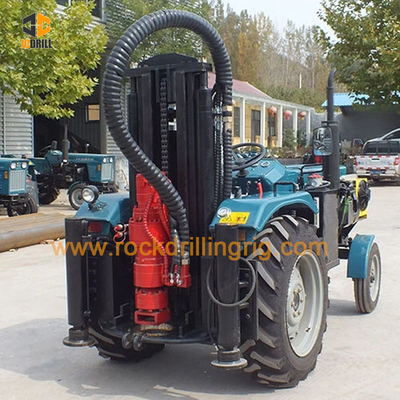

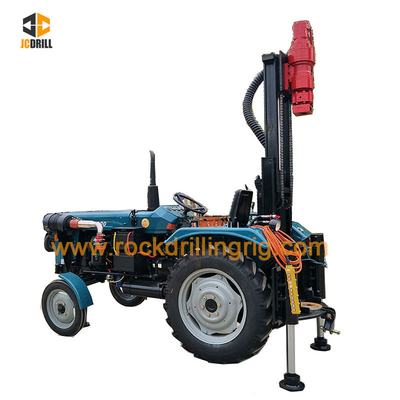

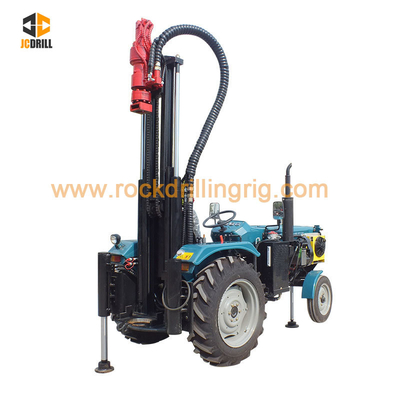

Tractor Mounted TD200 Small Water Well Drilling Rig Portable

Tractor Mounted TD200 Small Water Well Drilling Rig Portable
Tractor Mounted TD200 Small Water Well Drilling Rig Portable Tractor Mounted TD200 Small Water Well Drilling Rig Portable Tractor Mounted TD200 Small Water Well Drilling Rig Portable Tractor Mounted TD200 Small Water Well Drilling Rig Portable

Large Image :  Tractor Mounted TD200 Small Water Well Drilling Rig Portable

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Tractor Mounted TD200 Small Water Well Drilling Rig Portable

Description
Model Number: TD200 Dimension: 3400*1350*2150m
Driling Diameter: 90-220mm Engine: AMEC
Drilling Depth: MAX.200m Weight: 2600KG
High Light:

amec small water well drilling rig

,

200m small water well drilling rig

,

200m portable water well drilling rig

JCDRILL Tractor Mounted Water Well Portable Drilling Rig TD200



Application

The rig uses the tractor diesel engine as the working power of the rig. The rig working part is integrated with the tractor. The tractor is the rig, the transportation machine, and the working power of the rig. When going to the work site, the tractor has the transportation transfer capability. The air compressor can be mounted, which saves the investment of the transportation vehicle, lowers the cost and makes the work more convenient. It is also equipped with a tricycle to load the drill pipe. Because the fuselage is small and flexible, the tractor is more suitable for driving and operating in various road conditions and occasions in the wild, villages, etc. Rural hutongs and farmyards can enter the well.

JCDRILL Tractor Mounted Water Well Portable Drilling Rig TD200



Characteristics

In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures.

It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 2600kg that allows it to be pulled by a pick-up it is packed with features.

The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism.When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.


Specification

Description   TD200
Geology drilled F=6-14
Drill depth 0-200 m
Drilling Diameter 90 - 220mm
Drill system and operation Hydraulic
Rig assembly 1 complete unit, Tractor driven
Mobility 4 wheel tractor
Drill pipe (diameter x length) 60/73/76*1500mm
Mud pump(Optional) BW160/BW200/BW250
Foam pump Optional
Weight 2600 kg
Rotation & Feed System
Top head drive by a hydraulic cylinder through heavy duty chain.
Rotation torque 2400 N-m
Speed 60-115 rpm.
Head travel 1.95 meter
Pull-up capacity 10000 kgs
Pull-down Capacity 6800 kgs
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Tractor
Type   4x2 tractor
Power   20KW
Drill Pipe
Drill pipe length 1.5 meter
Drill pipe diameter 60/73 /76mm
Thread 2 3/8 REG API
Mud pump(Optional)
Flow capacity 160/200/250 liter/min
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity   140 liter
Stabilizing Jack
1 front jacks and 2 rear jacks.
Type   Hydraulic
Stroke   350 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure   25 bar
Oil tank capacity 4 liter
Dimensions
Overall length   3400 mm
Overall width   1350 mm
Overall height   2150 mm

Packaging&Shiping
JCDRILL Tractor Mounted Water Well Portable Drilling Rig TD200


Service

JCDRILL Tractor Mounted Water Well Portable Drilling Rig TD200
In our after sales service system, We establish excellent control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.


Warranty

Spare parts

Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services
