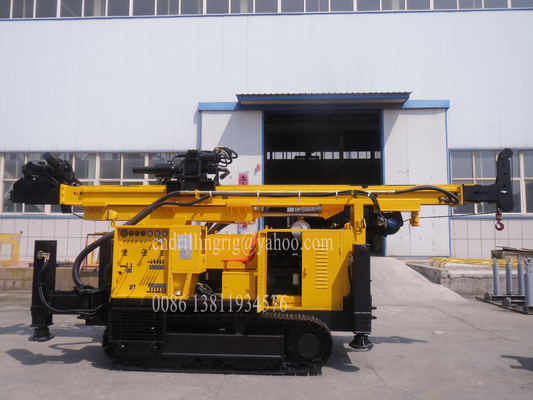

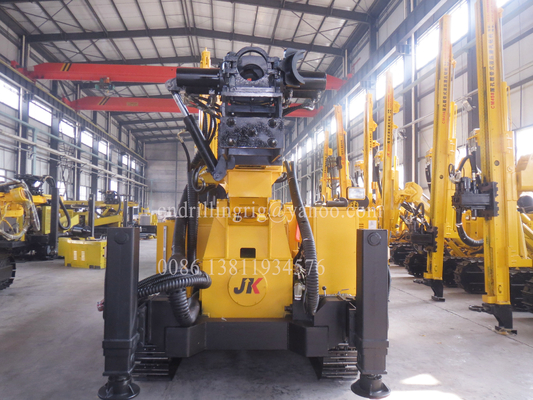

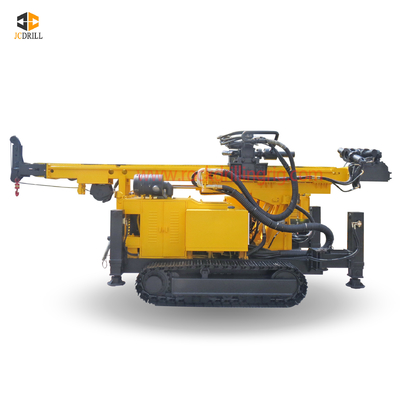

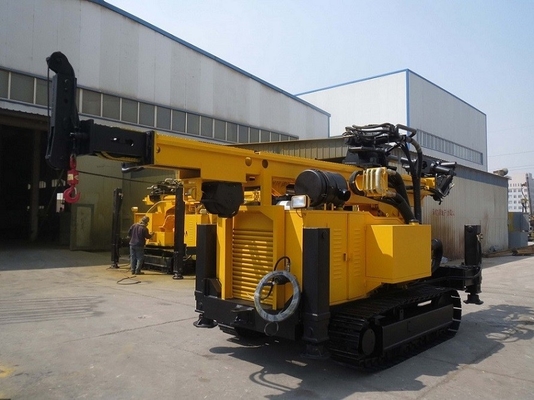

Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300

Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300
Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300 Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300 Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300 Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300 Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300 Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300

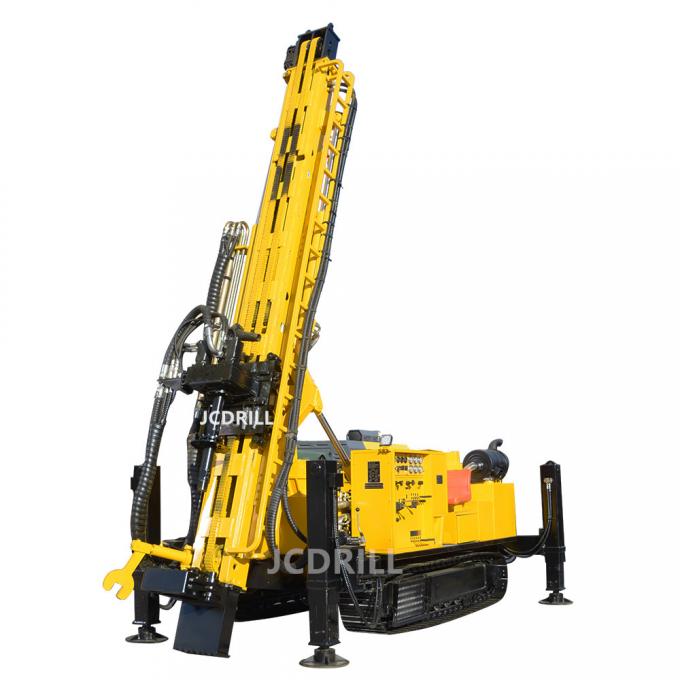

Large Image :  Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JRC300
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export ocean transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000Set/year

Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300

Description
Model Number: JRC300 Application: RC Reverse Circulation Drilling
Drilling Depth: MAX.300m Drilling Diameter: 300mm
Demension: 7550*2260*2700 Weight: 13000kg
Voltage: 24V Power Type: Diesel
High Light:

exploration reverse circulation drilling rig

,

300m rc drill rig

,

300m reverse circulation drilling rig

JRC300 Full Hydraulic Crawler Reverse Circulation Drilling Rig

JRC300 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction.

Quality Products

Beautiful Price

Excellent Service







COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE
STRONGER FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
Crawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill Rig

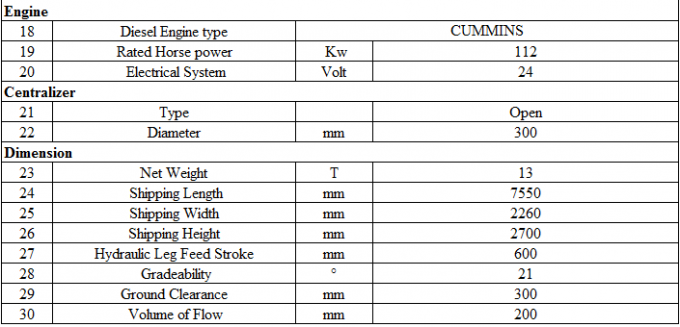

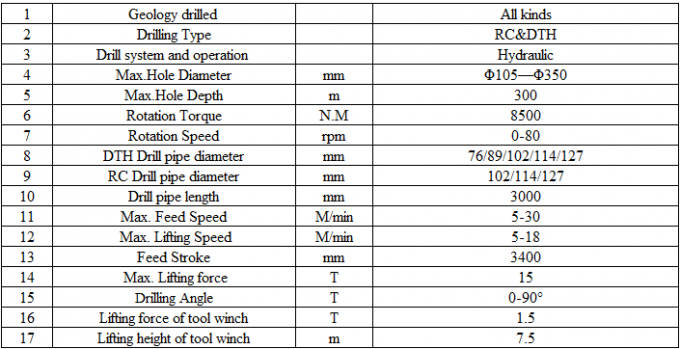

Specification

Crawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill RigCrawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill Rig

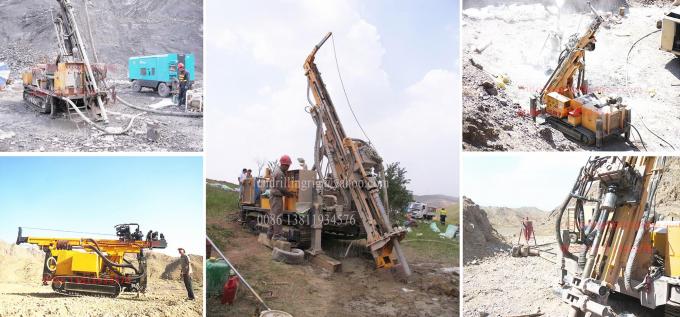

Application

Crawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill Rig

Characteristics

1.Diesel engine mounted hydraulic system, all the system include the walking, rotation, feed, lifting, Leg, lifting, compensation system, rod change is hydraulic.
2:Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.
3.During working, use the reverse circulation hammer, double tube, pressed air enter between two tube and dust out from the inner tube.
4.Also it's available to positive circulation use normal drilling tool.

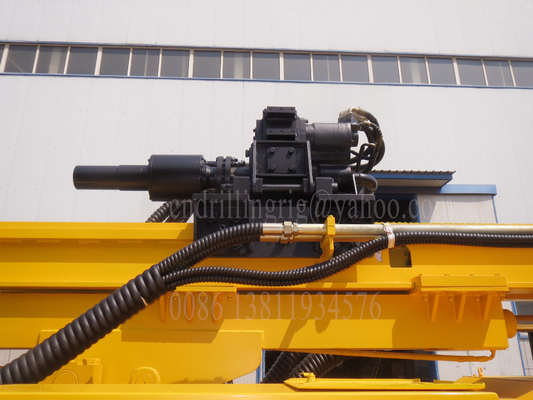

5.The working system composed of feed system, guide(mast),rotary head, compensation system, centralizer, rod exchange system, winding and so on.
6.Axes pressure, feed speed, rotary speed is adjustable.

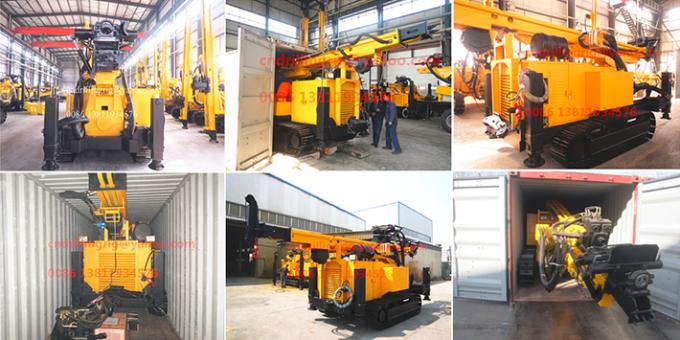

Packaging&Shiping

Crawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill Rig

Service

Crawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill RigAfter sales service system, We establish excellent control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Warranty

Spare parts

Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services

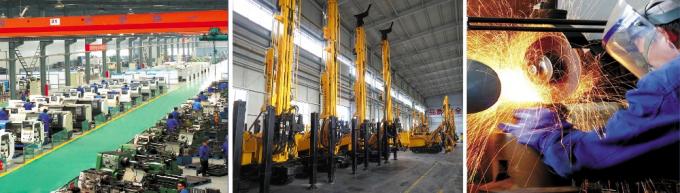

About Us

Crawler Mounted Exploration Reverse Circulation Drilling Rig JRC300 6

Crawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill Rig

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.


We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig,Mud pump and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and excellent service network, which establish our brand "JINCHENG" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

Certification

Crawler mounted Reverse Circulation Drilling Rig/ JRC300 Exploration Reverse Circulation Drill RigFAQ

Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them



A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.





A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
