Product Details:
|
| Apply Depth: | 100-1500m | Controlx Box: | Standard |
|---|---|---|---|
| Depth-Counting: | Digit | Storage Mode: | 32G U Disk |
| Winch: | Manual/Electric | Well Pully: | Standard |
| High Light: | 73mm dual camera underground services detection,dual camera underground services detection,1500m underground services detection |
||
Specification
| 73mm Dual Camera Underground Detection Television | |||||||
| Model | Configuration Parameter | ||||||
| Apply Depth | Control Box | Depth-Counting | Storage Mode | Winch | Well Pully | Camera Model(Dima.) | |
| UDM100 | 100m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(50 Optional) |
| UDE100 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(51 Optional) | |
| UDM200 | 200m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(52 Optional) |
| UDE200 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(53 Optional) | |
| UDM300 | 300m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(54 Optional) |
| UDE300 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(55 Optional) | |
| UDM400 | 400m | Standard | Digit | 32G U Disk | Manual | Standard | 73mm(56 Optional) |
| UDE400 | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(57 Optional) | |
| UDE500 | 500m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(58 Optional) |
| UDE800 | 800m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(59 Optional) |
| UDE1000 | 1000m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(60 Optional) |
| UDE1500 | 1500m | Standard | Digit | 32G U Disk | Electric | Standard | 73mm(61 Optional) |
Details

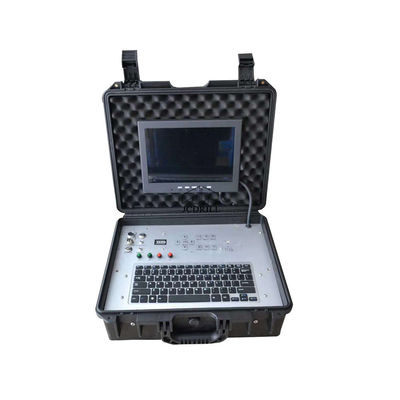

APS Control Box
Waterproof: IP68
Size: 415*340*144mm
Working Voltage: 12V/22V
Sound Recording
Picture Recording(HD)
Depth-Counting(adjustable)
Keyboard Edit(well No...)
Take Picture
Depth Interface: Connect depth sensor with built-in system software
Detector Interface: Connect detector, transmit video and power
8-level dimming, forward reverse 360-degree rotation control
Built-in lithium battery(optional)

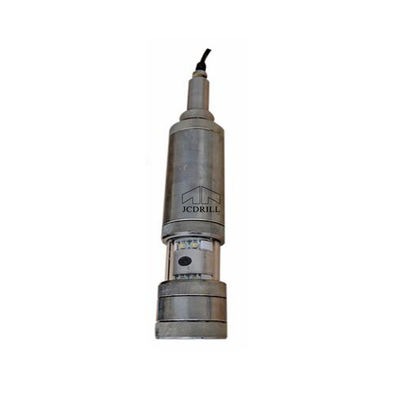

73mm Dual Camera
Material: Chromate treatment
Pressure Resistant: 20MPA, max.depth 2000m
Picture Element: CCD camera, 750 Cable
Light: Front Load 6W, highlight LED Lamp
Size: Dia.73*Dia.50mm, dia.50mm(Optional)
Manual Winch for UDM Serials
Winch: Heavy duty cable coil
Material: Steel

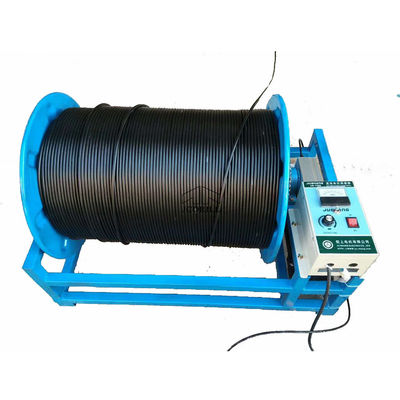

Electric Winch for UDE Serials
Winch: Heavy duty cable coil
Material: Steel
Display
Size: 10.1 inch LCD screens
Aspect Ratio: 4:3
Contrast Ratio: 450:1
Lightness: 500cd/m2
Resolution Ratio: 1024*768
Power: DC 12V
Pulley
Pulley: With depth counting
Depth Counting: Accurate to 0.05 meters
Pulse: 100

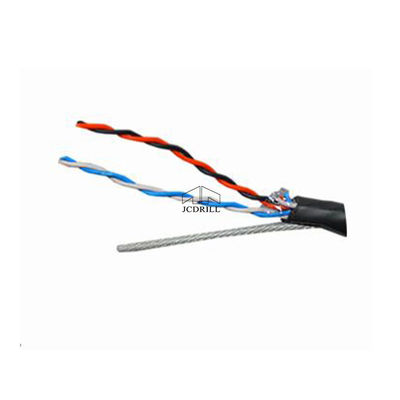

Cable
Cable: 8 core cable
Material: Photothermal material
Bearing Pull: 280kgs
Diameter: 8.2mm
Temperature-resistant: 70°
Features
1 Super high resolution color picture
2 Low light operation
3 Led underwater light
4 Stainless steel housing
5 Military grade water lightness cable
6 Ability to attach up to deep place and stand large pressure
