83mm Panoramic Hd Camera Underground Water Detection Services Television

83mm Panoramic Hd Camera Underground Water Detection Services Television
83mm Panoramic Hd Camera Underground Water Detection Services Television 83mm Panoramic Hd Camera Underground Water Detection Services Television 83mm Panoramic Hd Camera Underground Water Detection Services Television 83mm Panoramic Hd Camera Underground Water Detection Services Television

Large Image :  83mm Panoramic Hd Camera Underground Water Detection Services Television

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: CE, ISO
Model Number: Underground Water Well Camera
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year

83mm Panoramic Hd Camera Underground Water Detection Services Television

Description
Apply Depth: 100-2000m Controlx Box: Standard
Depth-Counting: Digit Storage Mode: 32G U Disk
Winch: Manual/Electric Well Pully: Standard
High Light:

panoramic underground water detection services

,

underground water detection services panoramic

Specification

83mm Panoramic HD Camera Underground Detection Television
Model Configuration Parameter
Apply Depth Control Box Depth-Counting Storage Mode Winch Well Pully Camera Model(Dima.)
UPM100 100m Standard Digit 32G U Disk Manual Standard 83mm(50 Optional)
UPE100 Standard Digit 32G U Disk Electric Standard 83(50 Optional)
UPM200 200m Standard Digit 32G U Disk Manual Standard 83(50 Optional)
UDE200 Standard Digit 32G U Disk Electric Standard 83(50 Optional)
UPM300 300m Standard Digit 32G U Disk Manual Standard 83(50 Optional)
UPE300 Standard Digit 32G U Disk Electric Standard 83(50 Optional)
UPM400 400m Standard Digit 32G U Disk Manual Standard 83(50 Optional)
UPE400 Standard Digit 32G U Disk Electric Standard 83(50 Optional)
UPE500 500m Standard Digit 32G U Disk Electric Standard 83(50 Optional)
UPE600 600m Standard Digit 33G U Disk Electric Standard 83(50 Optional)
UPE800 800m Standard Digit 32G U Disk Electric Standard 83(50 Optional)
UPE1000 1000m Standard Digit 32G U Disk Electric Standard 83(50 Optional)
UDE2000 2000m Standard Digit 32G U Disk Electric Standard 83(50 Optional)

Application

83mm Panoramic Hd Camera Underground Water Detection Services Television 0

Details

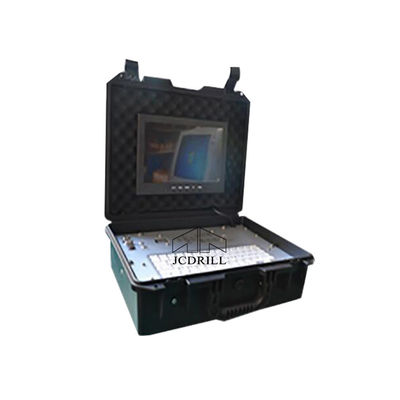

APS Control Box

Waterproof: IP68

Size: 415*340*144mm

Working Voltage: 12V/22V

Sound Recording

Picture Recording(HD)

Depth-Counting(adjustable)

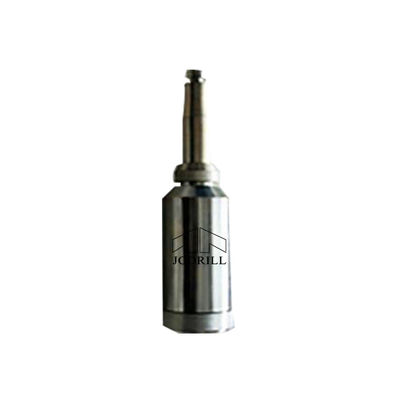

Panoramic Camera

Material: Chromate treatment

Pressure Resistant: 20MPA, max.depth 2000m

Picture Element: CCD camera, 750 cable

Light: Front Load 6W, highlight LED lamp

Size: Dia.83*Dia.50mm, dia.40mm(Optional)

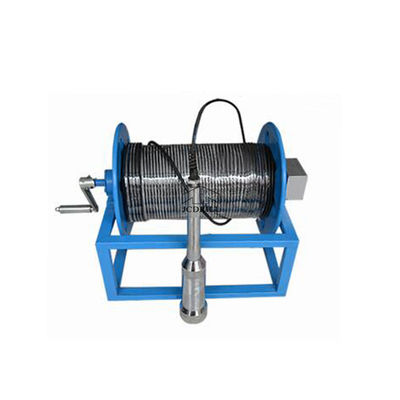

Manual Winch for UDM Serials

Winch: Heavy duty cable coil

Material: Steel



Display

Size: 10.1 inch LCD screens

Aspect Ratio: 4:3

Contrast Ratio: 450:1

Lightness: 500cd/m2

Resolution Ratio: 1024*768

Power: DC 12V

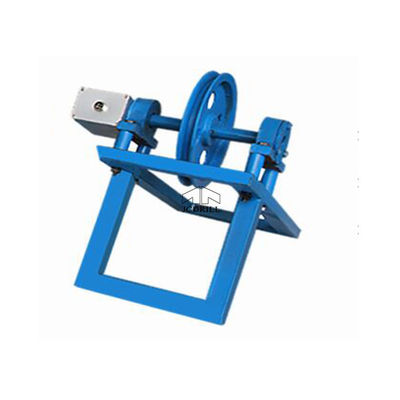

Pulley

Pulley: With depth counting

Depth Counting: Accurate to 0.05 meters

Pulse: 100



Cable

Cable: 8 core cable

Material: Photothermal material

Bearing Pull: 280kgs

Diameter: 8.2mm

Temperature-resistant: 70°



Features

1 Super high resolution color picture
2 Low light operation
3 Led underwater light
4 Stainless steel housing
5 Military grade water lightness cable
6 Ability to attach up to deep place and stand large pressure
