Product Details:
|
| Brand: | JCDRILL | Condition: | New |
|---|---|---|---|
| Power Type: | Diesel | Weight: | 1950kg |
| Warranty: | 1year | Hole Depth: | 200m |
| Drilling Angle: | 0-90° | Hole Diameter: | 75-500mm |
| High Light: | 200m water well drilling rig,200m core drill rig,CE water well drilling rig machine |
||

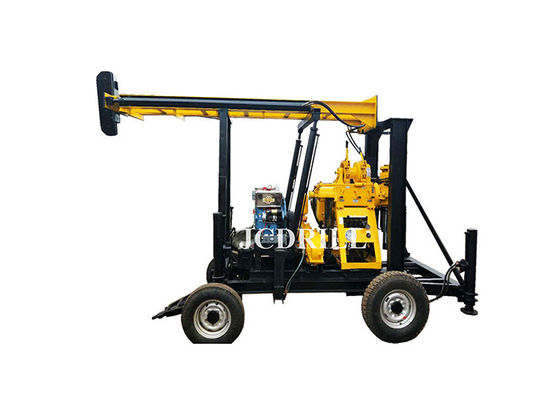

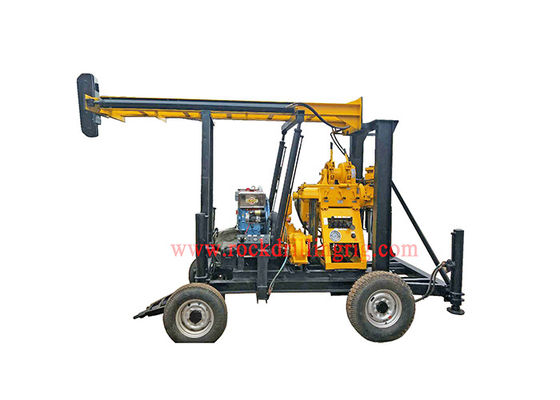

200 Meters Trailer Type Water Well Drilling Rig/Core Drilling Machine
1. The trailer mounted water well drilling rig is equipped with wheel running gear and hydraulic oil cylinder
pillar, transferring, convenient and easy to drill horizontal adjustment.
2. With hydraulic feed mechanism, improve drilling efficiency.
3. Advanced hydraulic system design makes the control handles concentrated, compact layout
reasonable, easy operation, flexible and reliable; Can realize remote speed change, more humanization
operation
Specification
| Max.Drilling depth | m | 200 | ||||
| Max.Drilling Dia. | mm | 500 | ||||
| Max.Open hole Dia. | mm | 500 | ||||
| End hole Dia. | mm | 75 | ||||
| Drilling rod | mm | 42,50,60 | ||||
| Drilling angle | 0-90° | |||||
| Rotary Spindle | ||||||
| Spindle forward speed | r/min | 64,128,287,557 | ||||
| Spindle stroke | mm | 450 | ||||
| Spindle inner diameter | mm | 62 | ||||
| Spindle lifting capacity | Kg | 6000 | ||||
| Spindle Max.Torque | N/M | 2400 | ||||
| Main Winch (Hydraulic) | ||||||
| Single line lifting speed | m/s | 17,35,75,151 | ||||
| Tightrope diameter | mm | 12 | ||||
| Hoist single line lifting capacity | Kg | 1800 | ||||
| Roller diameter | mm | 245 | ||||
| Roller cubic measure | m | 70 | ||||
| Tools Winch | ||||||
| Tightrope diameter | mm | 6 | ||||
| Roller diameter | mm | 140 | ||||
| Roller cubic measure | m | 450 | ||||
| Drilling rig Power(choose one between the following two) | ||||||
| Diesel engine | kw/hp | 16.13/22 | ||||
| Electric motor | KW | 15 | ||||
| Trailer | ||||||
| Loading Capacity | T | 2.5 | ||||
| Weight&Size | ||||||
| Weight | kg | 1950 | ||||
| Dimension | mm | 3300×1700×2500 | ||||
Certification
Delivery
FAQ
| Q: Are you original manufacturer? | Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted. |
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
| Q: How long will the delivery time take? | Q: How about after sales service? |
Q:Spare Parts When You Need Them
|
|
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours." |
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
|
