Product Details:
|
| Model Number: | TWD200 | Drilling Depth: | 200m |
|---|---|---|---|
| Drilling Diameter: | 254mm | Drill Pipe Length: | 2000mm Or 3000mm |
| Usage: | Drilling Water Well | Drilling Methold: | DTH Drilling |
| Engine Power: | 33KW Or Others | Mud Pump: | BW250/BW200 |
| Warranty: | 1year | ||
| High Light: | Diesel Engine Trailer Mounted Drill Rig,Rock Trailer Mounted Drill Rig,Full Hydraulic Trailer Mounted Drill Rig |
||

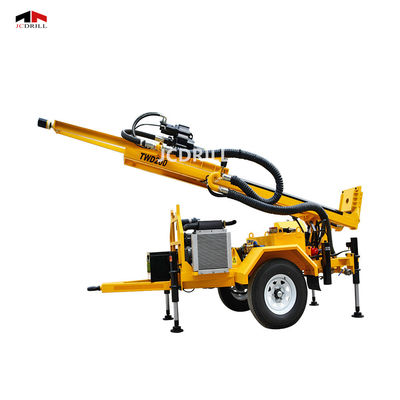

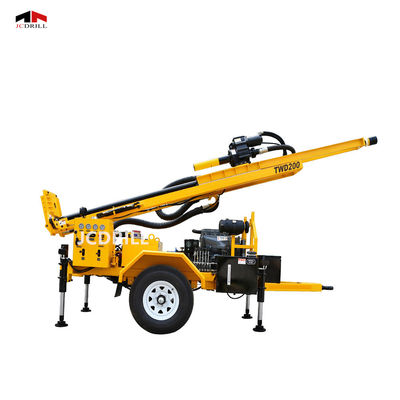

TWD200 Trailer Hydraulic Borehole Drill Water Well Drilling Rig
1. TWD200 series rotary trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment.
2. Equipped with hydraulic feed mechanism, drilling efficiency is greatly improved.
3. Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to monitor the hole.
4. Falling tower for hydraulic operation, convenient and reliable.
5. Diesel engine with electric start, labor saving.
Specification
| Geology drilled | All kinds |
| Drill depth | 0-200 m |
| Drilling Diameter | 90 - 200mm(DTH.max.6''hammer) |
| Drilling Diameter | 90 - 250mm(Mud Drilling) |
| Rig assembly | 1 complete unit, main engine driven |
| Mobility | 2 wheel tandem road trailer |
| Transportation | Towed by pickup or light truck |
| Drill pipe (diameter x length) | 76/89 mm x 2 m |
| Foam pump | Hydraulic driven(Optional) |
| Weight | 2700 kg |
| Rotation & Feed System | |
| Top head drive by a hydraulic cylinder | |
| Rotation torque | 2600 N-m |
| Speed | 0 - 80 rpm. |
| Head travel | 2.25 meter |
| Pull-up capacity | 8.5Ton |
| Pull-up speed-slow feed | 1.22 meter/min |
| Pull-up speed-rapid feed | 12.26 meter/min |
| Pull-down speed-slow feed | 0-1.88 meter/min |
| Pull-down speed-rapid feed | 0- 16.90 meter/min |
| Feed Stroke | 2350mm |
| Diesel engine | |
| Brnd | Deutz |
| Power | 33KW |
| Model | F3-912 |
| Speed | 2300r/min |
| Cooling type | air |
| Drill Pipe | |
| Drill pipe length | 2.00 meter |
| Drill pipe diameter | 76/89 mm |
| Thread | 2 3/8 REG API Mod |
| Power pack speed | 3000 rpm. |
| Load power pack | max. 47 hp. |
| Foam Pump(Optional) | |
| Flow capacity | 400 liter/min |
| Foam Tank | 50 liter |
| Max. working pressure | 40 bar |
| Hydraulic System | |
| Hydraulic tank capacity | 180 liter |
| Stabilizing Jack | |
| 2 rear hydraulic & 1 mechnical jacks(2 front Hydraulic jack optional). | |
| Bore | 150 mm. |
| Stroke | 520 mm |
| Air System | |
| Lubricator of venturi-type for down-the-hole drills. | |
| Max. pressure | 40 bar |
| Oil tank capacity | 8 liter |
| Dimension | |
| Overall length | 4100mm |
| Overall width | 1890mm |
| Overall height | 2100 mm |
Advantages
1 One person operation, save labor cost.
2 With universal wheel,convenient to transport.
3 Economical,can be owned by common families.
4 Light weight, simple operation,very easy to install.
