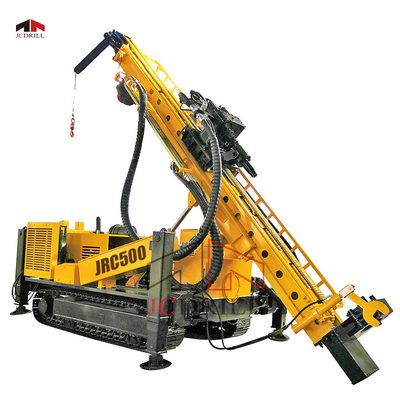

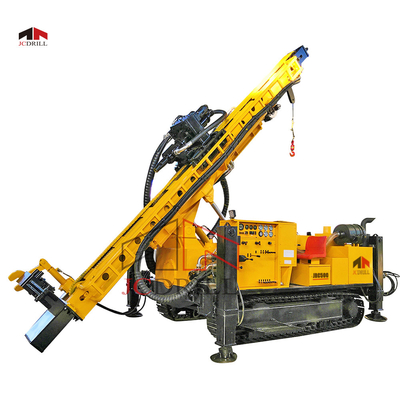

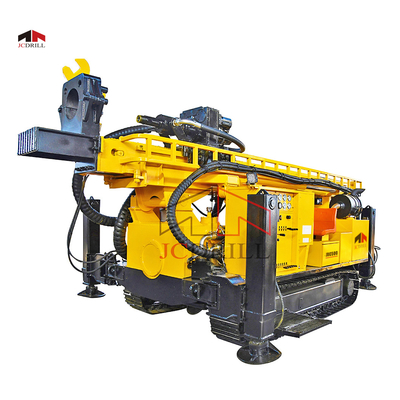

350mm Dia Hydraulic Down The Hole Crawler Rc Rig JRC500

350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500
350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500

Large Image :  350mm Dia Hydraulic Down The Hole Crawler Rc Rig JRC500

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JRC500
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export ocean transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000Set/year

350mm Dia Hydraulic Down The Hole Crawler Rc Rig JRC500

Description
Model Number: JRC500 Application: RC Reverse Circulation Drilling
Drilling Depth: 500m Drilling Diameter: 105-350mm
Drill Rod: 3000mm Rock Hardness: F=8-16
Rotation Speed: 0-100rpm Working Pressure: 1.05-2.4Mpa
Air Consumption: 11.3-21 M³/min Feed Stroke: 3.66m
Rotary Torque: 8500-10000N.m Dust Collector: Wet & Dry Optional
Pull Back Capacity: 28Ton Name: 350mm Dia Hydraulic Down The Hole Crawler Rc Rig
High Light:

crawler rc rig

,

down the hole rc rig

,

350mm dia rc rig

JCDRILL hydraulic down the hole crawler reverse circulation RC drilling machine



Main Features
1. With hydraulic automatic feeding mechanism, improve drilling efficiency, reduce labor intensity ;

2. The ball clamping mechanism or hydraulic chuck can be used to realize the non-stop reverse rod, easy to operate, safe and reliable ;

3. Equipped with hole bottom pressure gauge, easy to grasp the situation inside the hole;

4. Compact structure, centralized handle, small occupation area, light weight, strong decomposition, easy to relocate.Suitable for plain or mountain operation.



Description

JRC500 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.

The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction.


350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 0

350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 1

350mm Dia Hydraulic Down The Hole Crawler Rc Rig  JRC500 2


Specifiction


1 Geology drilled   All kinds
2 Drilling Type   DTH & RC
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ90—Φ400
5 Hole Depth m 500
6 Rotation Torque KN 85-100
7 Rotation Speed rpm 0-80 1st Gear
0-160 2nd Ger
8 Drill pipe diameter mm 76/89/114
9 Drill pipe length mm 4/4500
10 Max. Feed Speed M/min 18
11 Max. Lifting Speed M/min 5-20
12 Feed Stroke mm 3400
13 Max. Lifting force T 28
14 Lifting force of Main winch(Optional) T 4
15 Lifting force of hoist T 1.5
16 Lifting height of tool winch m 100
17 Diesel Engine type CUMMINS
18 Rated Horse power Kw 180
19 Electrical System Volt 24
20 Compressor Type Rotary Screw/Movable
21 Pressure Required Mpa 1.05—4.5
22 Air consumption m³/min 16—60
23 Net Weight T 13
24 Shipping Length mm 7550
25 Shipping Width mm 2260
26 Shipping Height mm 2700
27 Ground Clearance mm 300
28 Volume of Flow mm 20


Application


Hydraulic DTH crawler type reverse circulation RC drilling rig


Characteristics


1.Diesel engine mounted hydraulic system,all the system include the walking,rotation,feed,lifting,Leg,lifting, compensation system,rod change is hydraulic.
2:Reverse circulation system working together with DTH technology,air compressor provice pressed air for impact and dust collect.
3.During working,use the reverse circulation hammer,double tube,pressed air enter between two tube and dust out from the inner tube.
4.Also it's available to positive circulation use normal drilling tool.
5.The working system composed of feed system,guide(mast),rotary head, compensation system, centralizer,rod exchange cystem, winding and so on.
6.Axes pressure,feed speed,rotary speed is adjustable.

7.The walking system is a self-walking system,convient for moving,wich could install four hydraulic leg,when load on truck,it doesn't need hiking up,it can load on truck directly.

8.Four hydraulic leg use for keep the balance of the drilling during working.

9.The sub winding could hoisting Max.1ton drilling tool,it also could help to rod change.

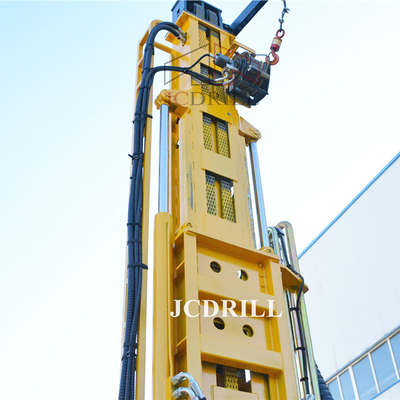

10.The guide(mast) could working in 45°-90°,guide have a extention system,which ensure the guide could moving toward the drilling surface,to keed the balance of the guide.


Packaging&Shiping


Hydraulic DTH crawler type reverse circulation RC drilling rig


Service

Hydraulic DTH crawler type reverse circulation RC drilling rigAfter sales service system, We establish excellent control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Warranty

Spare parts

Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services




Certification


Hydraulic DTH crawler type reverse circulation RC drilling rig FAQ

Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them



A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.





A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
