16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig

16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig
16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig 16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig

Large Image :  16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO, CE
Model Number: CSD200A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: standard package for shipping by sea or accordign to customers'requirement
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sets/month

16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig

Description
Model: CSD200A Drilling Type: DTH & Mud Rotary
Drill System And Operation: Hydraulic Hole Diameter: Φ140—Φ450mm
Hole Depth: 200m Rotation Torque: 3050-6100Nm
Rotation Speed: 60-120rpm Drill Pipe Diameter: 89/102/114
Drill Pipe Length: 3000/4500mm Max.Pull Down Capacity: 85KN
Max.Pull Back Capacity: 16T
High Light:

16t hydraulic well drilling rig

,

CSD200A Hydraulic Well Drilling Rig

,

CSD 200A Well Drilling Rig



CSD200A Truck Mounted Water Well Drilling Rig



This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.



Reasonable overall layout uses the truck-mounted for transportation with good maneuverability.



Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.



The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

Specification

1 Geology drilled   All kinds
2 Drilling Type   DTH & Mud Rotary
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ140-Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 4800-6500
7 Rotation Speed rpm 60-120
8 Drill pipe diameter mm 89/114
9 Drill pipe length mm 4000/4500
10 Max.Push down capacity T 5
11 Max.Pull up capacity T 16
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 70
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.05-4.5
21 Air consumption m³/min 16-60
Truck
22 Manufacturer   SINOTRUCK HOWO
23 Model   ZZ1257M5847C
24 Engine   WD615.93C
25 Rated Horse power Hp 290
26 Discharge Standard   EU-2
27 Drive type   6*4
28 Max.Speed Km/h 102.9
29 Steering wheel   left/right(Optional)
Mud Pump
30 Power Type   Diesel engine
31 Model   BW450
32 Stroke mm 110
33 Displacement L/Min 450
34 Discharge pressure (Mpa) Mpa 5
Dimension
35 Net Weight T 20
36 Shipping Length mm 11200
37 Shipping Width mm 2500
38 Shipping Height mm 3200
39 Working size(L*W*H) mm 11000*2480*7147

Pictures

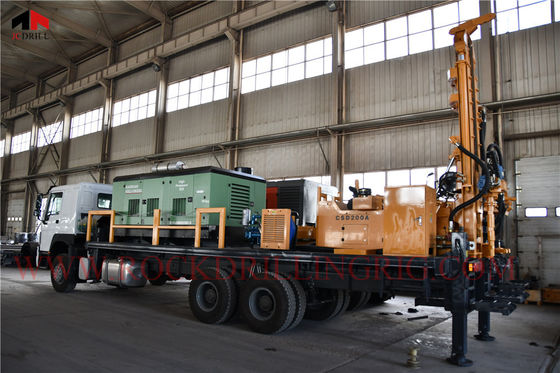

16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig 0

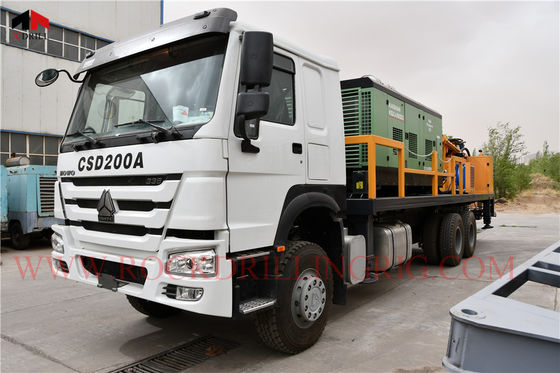

16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig 1

16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig 2

Packing & Delivery

16T Pull Back Capacity CSD200A Hydraulic Well Drilling Rig 3
