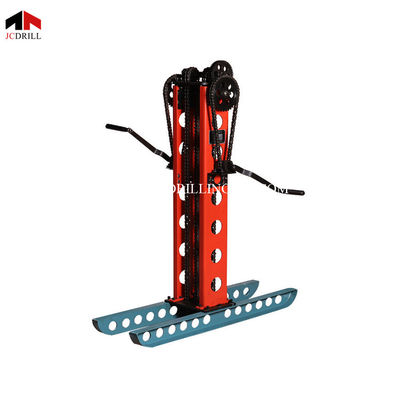

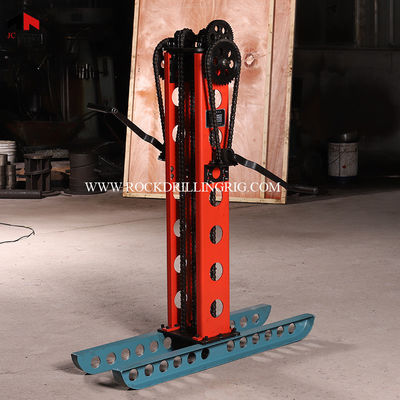

30KN Force Pull Standard Water Well Drilling Tools For Penetration Test

30KN Force Pull Standard Water Well Drilling Tools For Penetration Test
30KN Force Pull Standard Water Well Drilling Tools For Penetration Test 30KN Force Pull Standard Water Well Drilling Tools For Penetration Test 30KN Force Pull Standard Water Well Drilling Tools For Penetration Test 30KN Force Pull Standard Water Well Drilling Tools For Penetration Test

Large Image :  30KN Force Pull Standard Water Well Drilling Tools For Penetration Test

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: SPT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2500/PC-USD3000/PC
Packaging Details: standard package for shipping by sea or accordign to customers'requirement
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sets/month

30KN Force Pull Standard Water Well Drilling Tools For Penetration Test

Description
Name: Standard Penetration Test Structure: Light Chain/Hand Crank On Both Sides
Force Of Rated Penetration: 3t Depth Of Penetration: 30m
Distance Of Penetration: 1m Speed Of Penetration: 0.8-1.3m/min
Weight: 60kg Force Of Pull: 30KN
Speed Of Lifting: 0.8-1.3m/min As Slow, 4m/min As Fast Diameter Of Probe: 25mm/28mm
Length Of Probe: 1m Material Of Probe: Seamless Alloy Steel Pipe
Diameter Of Anchor: 200mm/250mm Equipped Probe: 10cm2 Single Bridge Probe, 10cm2double Bridge Probe, Electric Cross Probe(50*100*2mm)
Sheared Range Of Cross Probe: 0-128KPa Equipped Cable: Four-core Shielded Cable/eight-core Shielded Cable
Chain: Small Drive Chain: 10A-1, 68 Knots, Two Or Big Driver Chain: 12A-1, 148 Knots, Two
High Light:

30KN Water Well Drilling Tools

,

JCDRILL Water Well Drilling Tools

,

1.3m/min water well drilling tools

30KN Force Pull Standard Water Well Drilling Tools For Penetration Test

Name Standard Penetration Test
Structure Light chain/Hand crank on both sides
Force of Rated Penetration 3t
Depth of Penetration 30m
Distance of Penetration 1m
Speed of Penetration 0.8-1.3m/min
Weight 60kg
Fore of Pull 30KN
Speed of lifting 0.8-1.3m/min as slow, 4m/min as fast
Diameter of Probe 25mm/28mm
Length of Probe 1m
Material of Probe Seamless alloy steel pipe
Diameter of Anchor 200mm/250mm
Equipped Probe 10cm2 single bridge probe, 10cm2double bridge probe, electric cross probe(50*100*2mm)
Sheared range of Cross Probe 0-128KPa
Equipped Cable Four-core shielded cable/eight-core shielded cable

Introduce

Standard Penetration Test(SPT) is an in situ dynamic penetration test,designed to find out SPT number 'N', that can be used to determine the geotechnical properties of the soil using the various correlations. It is a simple and inexpensive test to find out the relative density and shear strength parameters of the soil.

There is a sampler tube(Split Spoon Sampler) applied with the dynamic loading to penetrate into the in situ undisturbed soil, and the numbers of blows required to penetrate through 18 inches(450 mm), are correlated through some empirical relations to find out the relative density and shear strength of the soil.

Though the test results are based on empirical values, this test is widely adopted to design the foundations in the sandy soils.



Apparatus

Standard Penetration Test Apparatus. The necessary parts of the whole arrangement are a split sampler tube with 50 mm outside diameter and 35 mm inner diameter with a length of 650 mm, a slide hammer with a mass of 63.5 kg with a free fall of 762 mm and the pulley.



Application

Standard Penerration Test(SPT) is generally used for testing the granular soils, like sand and silty sands or stiff clays. The reason is that it is almost impossible to get the undisturbed samples of the granular soils.

Pictures

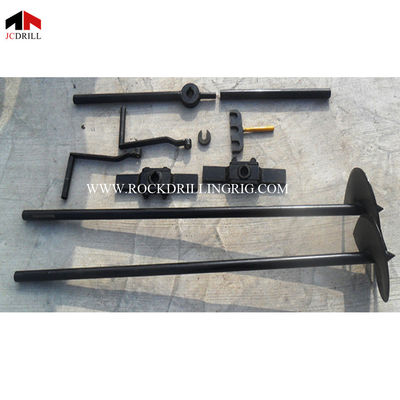

30KN Force Pull Standard Water Well Drilling Tools For Penetration Test 0

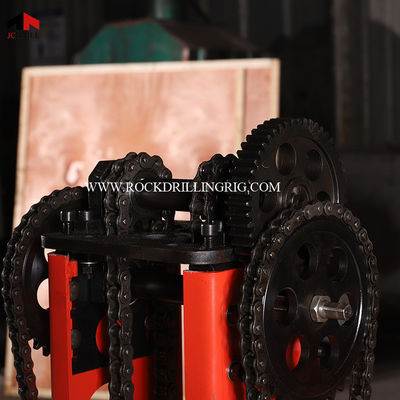

30KN Force Pull Standard Water Well Drilling Tools For Penetration Test 1

Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
Certificate
30KN Force Pull Standard Water Well Drilling Tools For Penetration Test 2

FAQ

Q1. Is it a reliable company?
Beijing Jincheng Mining Technology Co.,Ltd is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.
Q2: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q3: What's the delivery time?
7-25 days after received your payment.
Q4: What's the package?
Strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.
Q6: What's the payment method?
T/T, WESTERN UNION, MONEYGRAM
Q7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.
