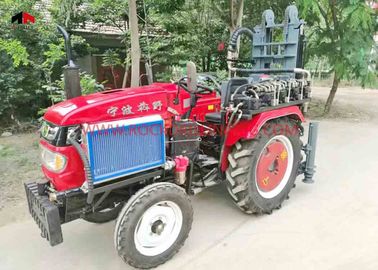

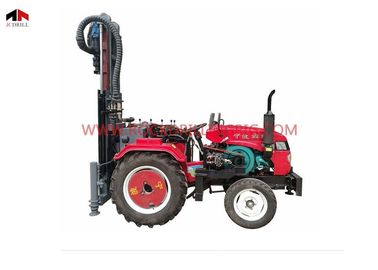

Hydraulic Tractor Mounted 100m Water Well Drilling Rig

Hydraulic Tractor Mounted 100m Water Well Drilling Rig
Hydraulic Tractor Mounted 100m Water Well Drilling Rig Hydraulic Tractor Mounted 100m Water Well Drilling Rig

Large Image :  Hydraulic Tractor Mounted 100m Water Well Drilling Rig

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001
Model Number: TD100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotation
Packaging Details: drilling rig in nude packag,spare parts in standard export wooden box
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 3000sets/year

Hydraulic Tractor Mounted 100m Water Well Drilling Rig

Description
Brand: JCDRILL Condition: New
Power Type: Diesel Weight: 2200kgs
Hole Depth: 100m Drill Syestem: Hydraulic
Usage: Water Well Dimension(L*W*H): 3150*1200*2150mm
Hole Diameter: 90-180mm Mud Pump: BW250
High Light:

100m Water Well Drilling Rig

,

Tractor Mounted Drilling Rig

100m Hydraulic Tractor Mounted Water Well Drilling Rig Portable Well Drilling Rig



JCDRILL Water Well Drill Rig

The 100m tractor mounted water well drilling rig uses the tractor diesel engine as the working power of the rig. The rig working part is integrated with the tractor. The tractor is the rig, the transportation machine, and the working power of the rig. When going to the work site, the tractor has the transportation transfer capability. The air compressor can be mounted, which saves the investment of the transportation vehicle, lowers the cost and makes the work more convenient. It is also equipped with a tricycle to load the drill pipe. Because the fuselage is small and flexible, the tractor is more suitable for driving and operating in various road conditions and occasions in the wild, villages, etc. Rural hutongs and farmyards can enter the well.



In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 2600kg that allows it to be pulled by a pick-up it is packed with features. The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism.When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.



Description TD100
Geology drilled F=6-14
Drill depth 0-120 m
Drilling Diameter 90 - 180mm
Drill system and operation Hydraulic
Rig assembly 1 complete unit, Tractor driven
Mobility 4 wheel tractor
Drill pipe (diameter x length) 60/73*1500mm
Mud pump(Optional) BW160
Foam pump Optional
Weight 2200 kg
Rotation & Feed System
Top head drive by a hydraulic cylinder through heavy duty chain.
Rotation torque 1400 N-m
Speed 60-120 rpm.
Head travel 1.95 meter
Pull-up capacity 7700 kgs
Pull-down Capacity 5000 kgs
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Tractor
Type 4x2 tractor
Power 24KW
Drill Pipe
Drill pipe length 1.5 meter
Drill pipe diameter 60/73 mm
Thread 2 3/8 REG API
Mud pump(Optional)
Flow capacity 160 liter/min
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 140 liter
Stabilizing Jack
1 front jacks and 2 rear jacks.
Type Hyseaulic
Stroke 350 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 25 bar
Oil tank capacity 4 liter
Dimensions
Overall length 3150 mm
Overall width 1200 mm
Overall height 2150 mm



.jpg

Package
Standard sea transportation package or packed as customer's requirement.

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment and one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.


Company Information

Jincheng provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of “Survival by quality, Development by credit’’.


We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “JINCHENG” a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

Certification

Hydraulic Tractor Mounted 100m Water Well Drilling Rig 1

FAQ

Q: Are you original manufacturer? Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them



A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.





A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
