150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150

China 150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150 supplier
150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150 supplier 150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150 supplier 150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150 supplier

Large Image :  150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150

Product Details:

Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD150

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Standard Export Packig
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Supply Ability: 500Set/Year
Contact Now
Detailed Product Description
Move Type: Trailer Mounted Drilling Depth: 150m
Drilling Dia: 90-200 Drilling Method: DTH&Mud Drilling
Drill Pipe: 89/76 Mm X 2 M Engine Power: 45KW
Rotation Torque: 2232 Nm Pull Up: 8 Ton
Dimension: 4540X1750X1900mm Weight: 2200kg

150m DTH Mud Drilling Trailer Mounted Drilling Rig With 45KW Diesel

Application



The TWD150 hydraulic trailer mounted water well drilling rig mounted onto a 2 wheel road trailer and built in all of the in-dividable skid features and common tooling.



The portable water well drilling equipment is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock, the water well drilling machine weighing about 2100-kg that allows it to be pulled by a pick-up it is packed with features.

Characteristics

TWD150 combines an onboard power pack, drill pipe storage and foam pump on a single axle trailer. This makes for a quick set up in most locations and is an ideal multipurpose rig for many water well drilling operations.
TWD150 has mud pump built in this high head pump can drill deeper faster than alternative skid mounted centrifugal mud pumps and takes its power direct from the trailer power pack.

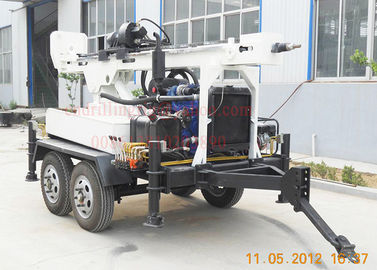

150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150

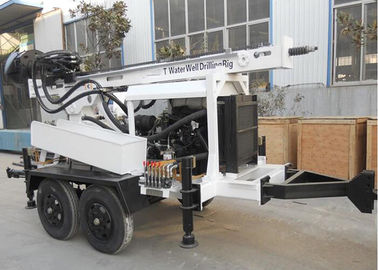

150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150

Specification

No. Description TWD150
1 Geology drilled All kinds
2 Drill depth 0-150 m
3 Drilling Diameter 90 - 200mm
4 Drill system and operation Hydraulic
5 Rig assembly 1 complete unit, main engine driven
6 Mobility 4 wheel tandem road trailer
7 Transportation Towed by pickup or light truck
8 Drill pipe (diameter x length) 60/76 mm x 2 m
9 Mud pump 400 L/min@ 6 bar progressive pump
10 Foam pump Hydraulic driven, mounted on rig
11 Weight 2177 kg
ROTARYHEAD&FEED SYSTEM
12 Top head drive by a hydraulic cylinder through heavy duty chain.
13 Rotation torque 2232 N-m
14 Speed 0 - 34 rpm.
15 Head travel 2.25 meter
16 Pull-up capacity 3813.09 kg.
17 Pull-up speed-slow feed 1.22 meter/min
18 Pull-up speed-rapid feed 12.26 meter/min
19 Pull-down speed-slow feed 0-1.88 meter/min
20 Pull-down speed-rapid feed 0- 16.90 meter/min
DIESEL ENGINE
21 Power 45KW
22 MODEL YC2115
DRILL PIPE
23 Drill pipe length 2.00 meter
24 Drill pipe diameter 76 mm
25 Thread 2 3/8 REG API Mod
26 Power pack speed 3000 rpm.
27 Load power pack max. 47 hp.
MUD PUMP
28 Flow capacity 400 liter/min
29 Max. working pressure 6 bar
HYDRAULIC SYSTEM
30 Hydraulic tank capacity 140 liter
STABILIZING JACK
31 2 front jacks and 2 rear jacks.
32 Bore 80 mm.
33 Stroke 480 mm
AIR SYSTEM
34 Lubricator of venturi-type for down-the-hole drills.
35 Max. pressure 40 bar
36 Oil tank capacity 8 liter
DIMENSIONS
37 Overall length 4540 mm
38 Overall width 1750 mm
39 Overall height 1900 mm



Packing& Delivery

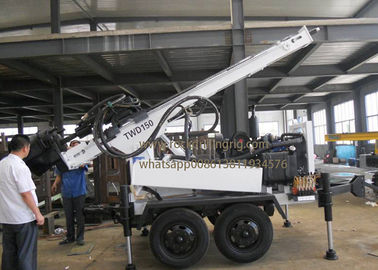

150m Dth Mud Drilling Trailer Mounted Drilling Rig With 45kw Diesel TWD150
